TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF28ATVS DIODE 28VWM 45.4VC |
160 |
|
Datasheet |
SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 4.41A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMAJ13ATVS DIODE 13VWM 21.5VC |
160 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H18D35V0BLESD PROTECTION DIODE |
550 |
|
Datasheet |
SC-76, SOD-323 | HxxxD3xVxBL | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 18A | 350W | No | Ethernet, USB | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
MMBZ27VALT116TVS DIODE 22VWM 40VC SOT23 |
486 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 22V (Max) | 25.65V | 40V | 1A | 40W | No | General Purpose | 42pF @ 1MHz | - | - | - | Surface Mount | SSD3 |
|
SMBJ170CATVS DIODE 170VWM 275VC |
180 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 170V | 189V | 275V | 2.18A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ33ATVS DIODE 33VWM 53.3VC |
140 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
STRVS241X02ETVS DIODE 171VWM 241VC DO15 |
356 |
|
Datasheet |
DO-204AC, DO-15, Axial | STRVS | Tape & Box (TB) | Obsolete | Zener | 1 | - | 171V | 190V | 241V | 2A (8/20µs) | - | No | MOSFET Protection | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

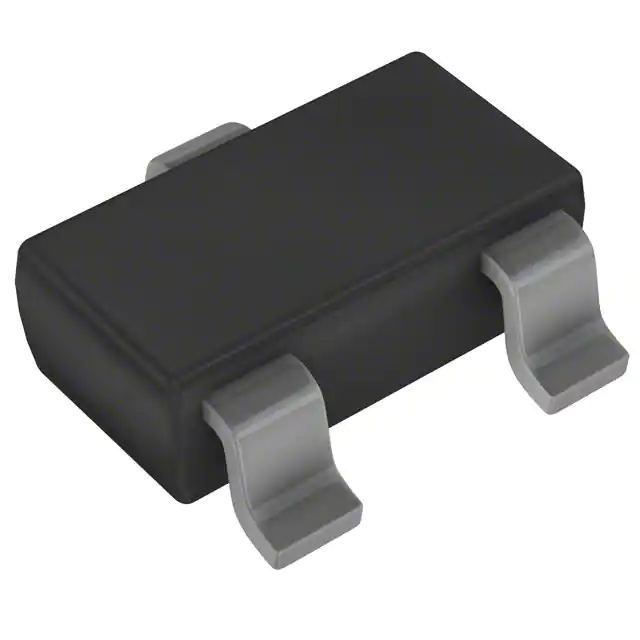

MMBZ20VAL-7TVS DIODE 17V 28V SOT23-3 |
547 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Cut Tape (CT) | Active | Zener | 2 | - | 17V | 19V | 28V | 1.4A | 40W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
SMF26ATVS DIODE 26VWM 42.1VC |
180 |
|
Datasheet |
SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 4.75A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1.5KE7V5ARLTVS DIODE 6.4VWM 14.5VC DO201 |
286 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.4V | 7.13V | 14.5V | 690A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 8500pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
ESDZX051-1BF4TVS DIODE 10.5VWM 10VC ST0201 |
959 |
|
- |
0201 (0603 Metric) | ESDZ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 10.5V (Max) | 9.6V (Typ) | 10V (Typ) | 4A (8/20µs) | 20W | No | Ethernet, USB | 0.28pF @ 3GHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ST0201 |
|
PEC2305C4E5_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
943 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5V (Max) | 5.5V | 15V | 2A (8/20µs) | - | No | General Purpose | 3.5pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
DF3A3.3FV,L3FTVS DIODE VESM |
290 |
|
- |
SOT-723 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | - | 3.1V | - | - | - | No | General Purpose | 115pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VESM |
|
|
SMBJ64ATVS DIODE 64VWM 103VC |
160 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 64V | 71.1V | 103V | 5.83A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ6.8CABIDIRECTIONAL TVS DIODES 600W 6. |
747 |
|
- |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMBJ15CABIDIRECTIONAL TVS DIODES 600W 15 |
730 |
|
- |
DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ5.0AUNIDIRECTIONAL TVS DIODES 600W 5 |
630 |
|
- |
DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ40CABIDIRECTIONAL TVS DIODES 600W 40 |
530 |
|
- |
DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
S23C24TVS DIODE 24VWM 44VC SOT23 |
258 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | S23CXX | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 44V | 1A | 300W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
SMF100ATVS DIODE 100VWM 162VC |
170 |
|
Datasheet |
SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 100V | 111V | 162V | 1.23A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
