Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STCHSP121BT1RUSPD TYPE 2 MCOV 1 POLE |
3,779 |
|
Datasheet |
HSP | Box | Active | Type 2 | Module Only | 1 | - | 10 kA | 39 kA | - | - | - | - | Visual Life Indicator | Chassis Mount | UL |
|
|
2530580000SPD TYPE 2 1.5KVDC MCOV 3 POLE |
4,645 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 3 | 1.5kVDC | 20 kA | 30 kA | 65 kA | - | - | -40°C ~ 85°C | Thermally Protected | DIN Rail | CE, cURus, VDE |
|

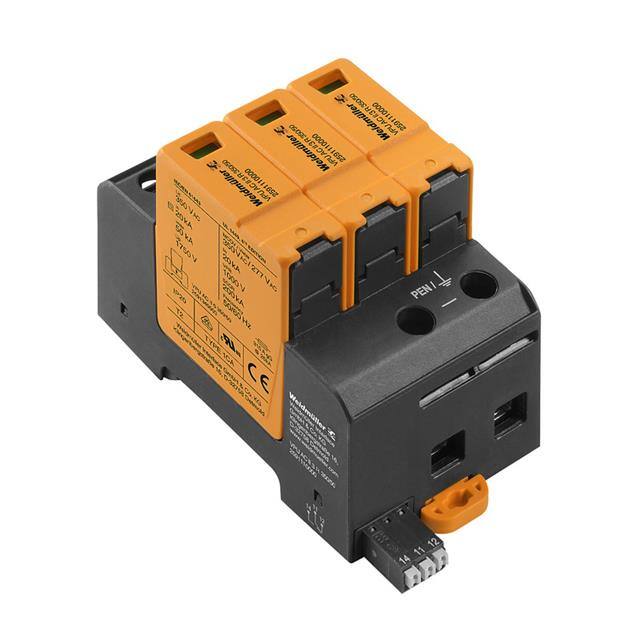

2591110000SPD TYPE 1 350VAC MCOV 3 POLE |
1,137 |
|
Datasheet |
VPU | Bulk | Active | Type 1 | Base + Module | 3 | 350VAC | 20 kA | 50 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, EAC, VDE |
|
|
2591490000SPD TYPE 1/TYPE 2 300VAC MCOV |
2,499 |
|
Datasheet |
- | Box | Active | Type 1, Type 2 | Base + Module | 2 | 300VAC | 50 kA | 50 kA | 150 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, VDE |
|
|
2530590000SPD TYPE 1/TYPE 2 1.5KVDC MCOV |
1,195 |
|
Datasheet |
- | Box | Active | Type 1, Type 2 | Base + Module | 3 | 1.5kVDC | 20 kA | 30 kA | 65 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, VDE |
|
|
SPDN-C240-1PSPD TYPE 1 350V MCOV 1 POLE |
2,392 |
|
Datasheet |
SPDN-C | Bulk | Active | Type 1 | Module Only | 1 | 350V | 20 kA | 50 kA | 200 kA | 2.5 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-C120-1PSPD TYPE 1 180V MCOV 1 POLE |
3,547 |
|
Datasheet |
SPDN-C | Bulk | Active | Type 1 | Module Only | 1 | 180V | 20 kA | 50 kA | 200 kA | 1.2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
2736410000SPD TYPE 2 300VAC MCOV 4 POLE |
1,346 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 4 | 300VAC | 20 kA | 50 kA | 150 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
2801272SPD 21VAC/30VDC MCOV 1 POLE |
1,025 |
|
Datasheet |
- | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 10 kA | 20 kA | - | - | 950 V | -40°C ~ 70°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
|
1250A-4S-600SPD TYP 2/TYP 4 690V MCOV 4 POLE |
4,150 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 4 | 690V | 20 kA | 40 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

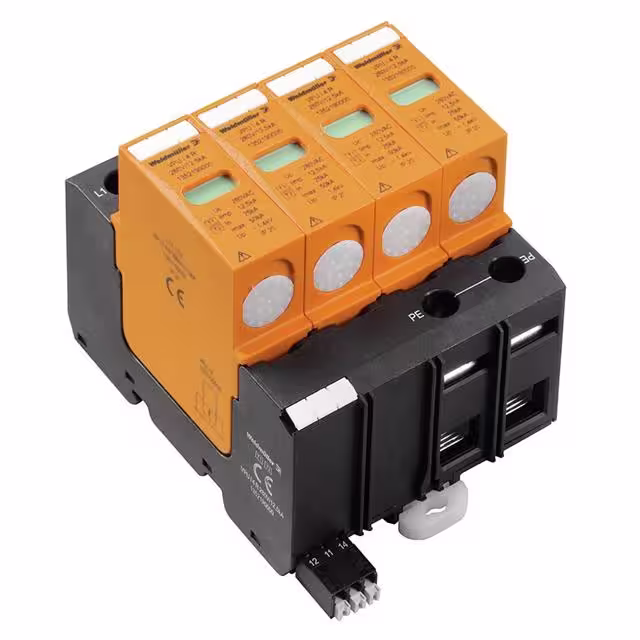

1352190000SPD TYPE 1/TYPE 2 280VAC MCOV |
2,231 |
|
Datasheet |
- | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 280VAC | 25 kA | 50 kA | 25 kA | - | - | -40°C ~ 70°C | Remote Signaling Contacts | DIN Rail | CE, EAC, UL |
|
|
2800187SPD TYPE 1/TYPE 2 335VAC MCOV |
1,643 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 335VAC | 50 kA | 65 kA | 25 kA | - | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, EAC, UL |
|
|
SPDN-C120-2SSPD TYPE 1 180V MCOV 1 POLE |
1,559 |
|
Datasheet |
SPDN-C | Bulk | Active | Type 1 | Module Only | 1 | 180V | 20 kA | 50 kA | 200 kA | 1.2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
1352100000SPD TYPE 1/TYPE 2 250VAC MCOV |
2,116 |
|
Datasheet |
- | Box | Active | Type 1, Type 2 | Base + Module | 3 | 250VAC | 25 kA | 50 kA | 25 kA | - | - | -40°C ~ 70°C | - | DIN Rail | CE |
|
|
1260-3SMG-230SPD 275VAC MCOV 1 POLE |
3,042 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-3SMG-120SPD 150VAC MCOV 1 POLE |
2,624 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-3SMG-400SPD 440VAC MCOV 1 POLE |
2,994 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2905344SPD TYPE 2 350VAC MCOV 1 POLE |
4,155 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 350VAC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
2730680000SPD TYPE 2 350VAC MCOV 4 POLE |
3,098 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 4 | 350VAC | 40 kA | 65 kA | 200 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
SPDN-B240-1PSPD TYPE 1 350V MCOV 1 POLE |
2,027 |
|
Datasheet |
SPDN-B | Bulk | Active | Type 1 | Module Only | 1 | 350V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
