Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-18E-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
3,481 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
3,302 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-19E-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
1,068 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-86-C2-R0HEATSINK 35X35X15MM R-TAB T766 |
2,433 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
3,963 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
2,537 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

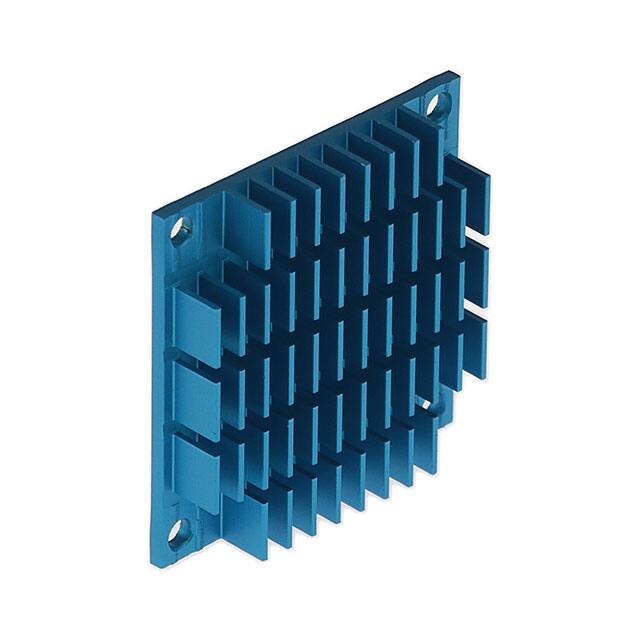

ATS-11F-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
1,826 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

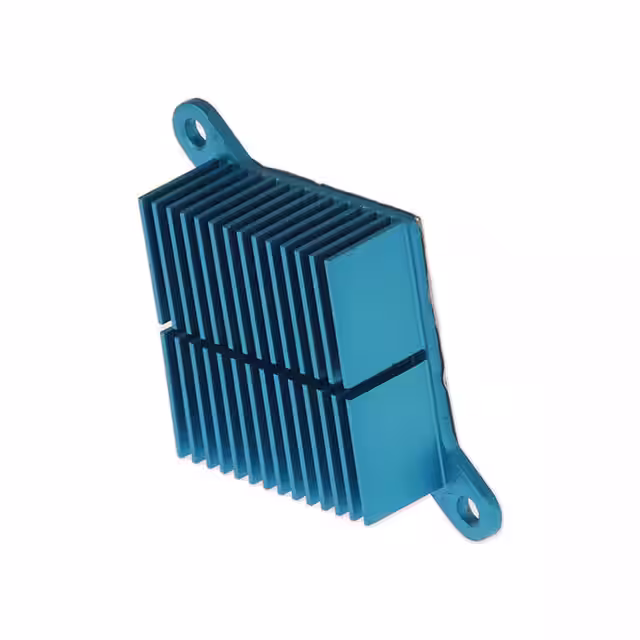

ATS-12G-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
4,521 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-13H-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
4,128 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01A-86-C2-R0HEATSINK 35X35X15MM R-TAB T766 |
2,078 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

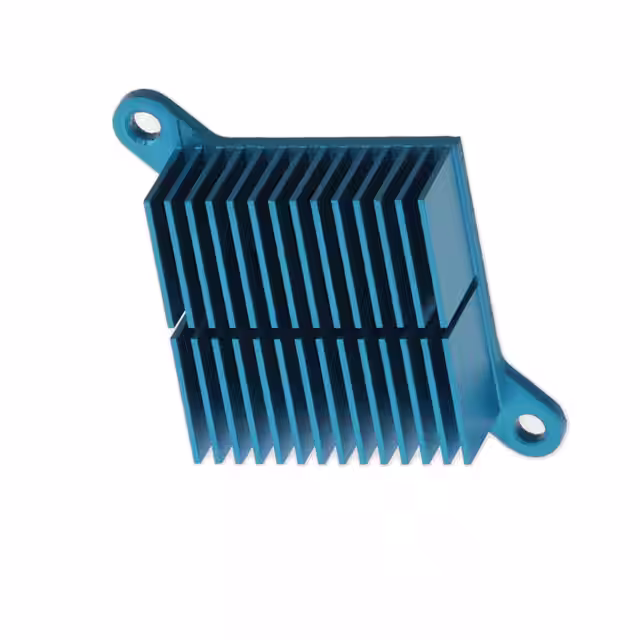

ATS-17A-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
1,006 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01B-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
1,796 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

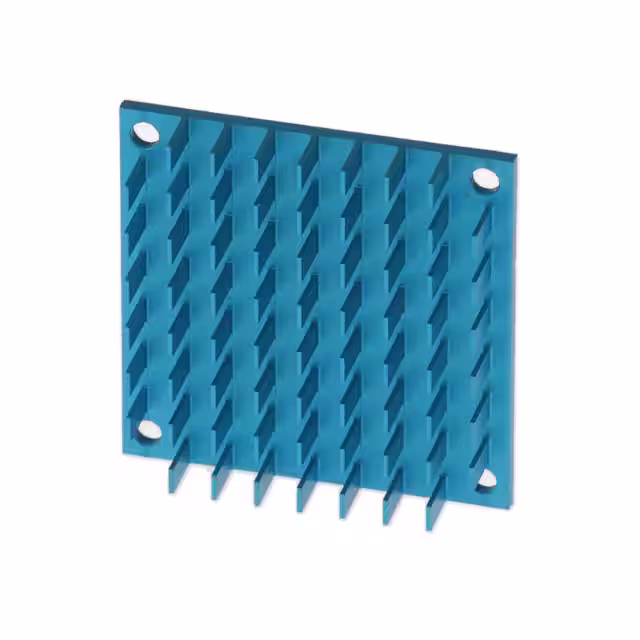

ATS-11D-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
4,961 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14D-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
2,421 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20G-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
4,916 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04D-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
4,321 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14G-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
3,128 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15H-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
4,349 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19C-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
3,362 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX060060013-22-C3-R0HEATSINK 60X60X12.7MM XCUT FP |
2,765 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
