Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

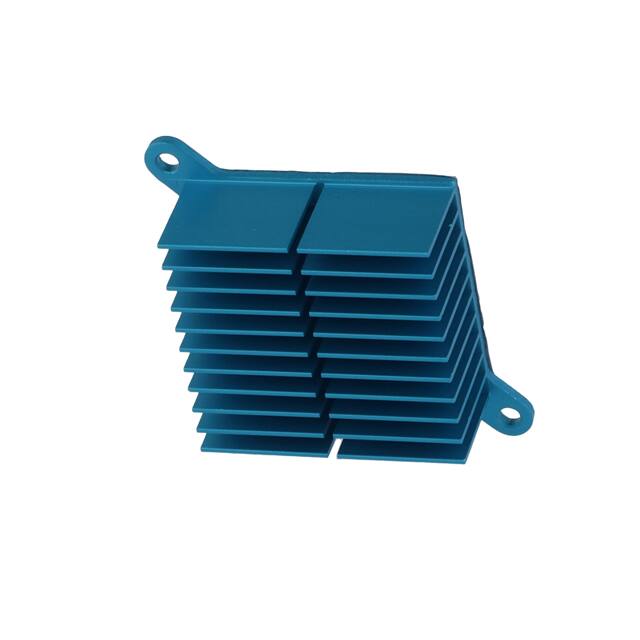

ATS-09A-143-C2-R0HEATSINK 30X30X20MM L-TAB T766 |
4,862 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

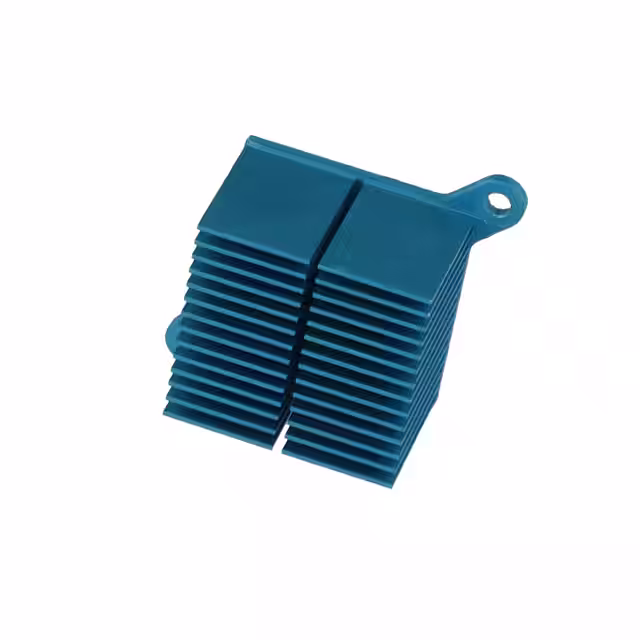

ATS-08B-143-C2-R0HEATSINK 30X30X20MM L-TAB T766 |
3,794 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-13B-143-C2-R0HEATSINK 30X30X20MM L-TAB T766 |
3,383 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-15B-143-C2-R0HEATSINK 30X30X20MM L-TAB T766 |
4,532 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06C-171-C2-R0HEATSINK 30X30X20MM R-TAB T766 |
3,512 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

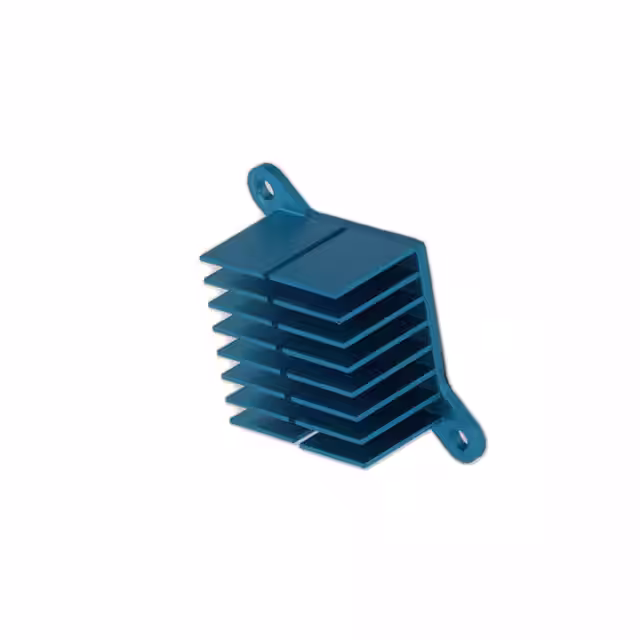

ATS-06E-171-C2-R0HEATSINK 30X30X20MM R-TAB T766 |
2,964 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

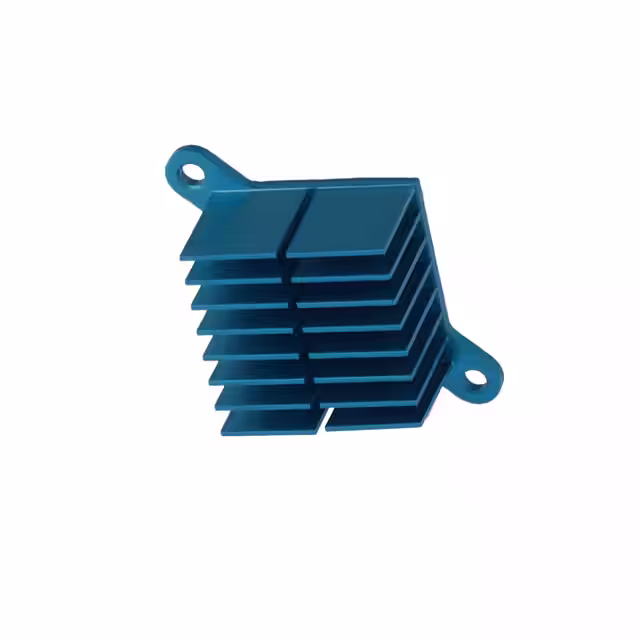

ATS-10E-171-C2-R0HEATSINK 30X30X20MM R-TAB T766 |
3,286 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 7.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
2,757 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20E-86-C2-R0HEATSINK 35X35X15MM R-TAB T766 |
3,073 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
2,096 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-86-C2-R0HEATSINK 35X35X15MM R-TAB T766 |
4,260 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21E-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
2,013 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
4,287 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-86-C2-R0HEATSINK 35X35X15MM R-TAB T766 |
2,394 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
2,113 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
2,380 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
4,564 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-86-C2-R0HEATSINK 35X35X15MM R-TAB T766 |
2,681 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-121-C2-R0HEATSINK 50X50X10MM XCUT T766 |
2,714 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-200-C2-R0HEATSINK 50X50X10MM XCUT T766 |
4,526 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
