Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-15H-03-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,836 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-77-C2-R0HEATSINK 25X25X30MM R-TAB T766 |
2,535 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.181" (30.00mm) | - | 9.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

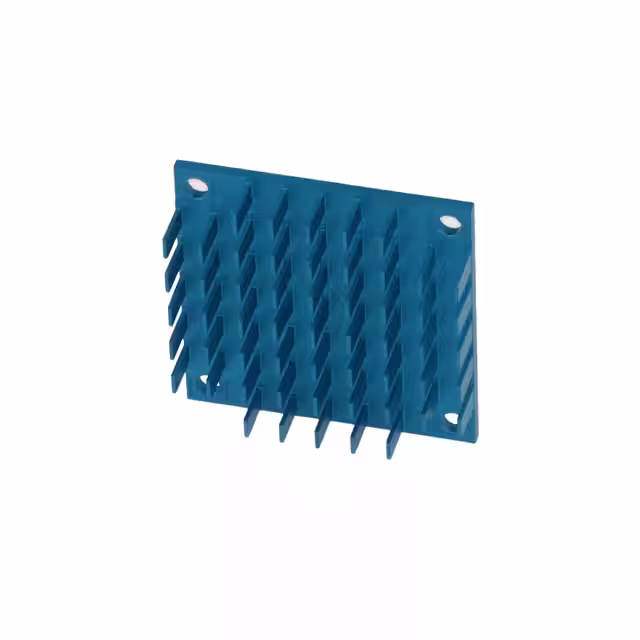

ATS-06B-197-C2-R0HEATSINK 45X45X10MM XCUT T766 |
1,168 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-13C-03-C2-R0HEATSINK 40X40X15MM XCUT T766 |
1,234 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

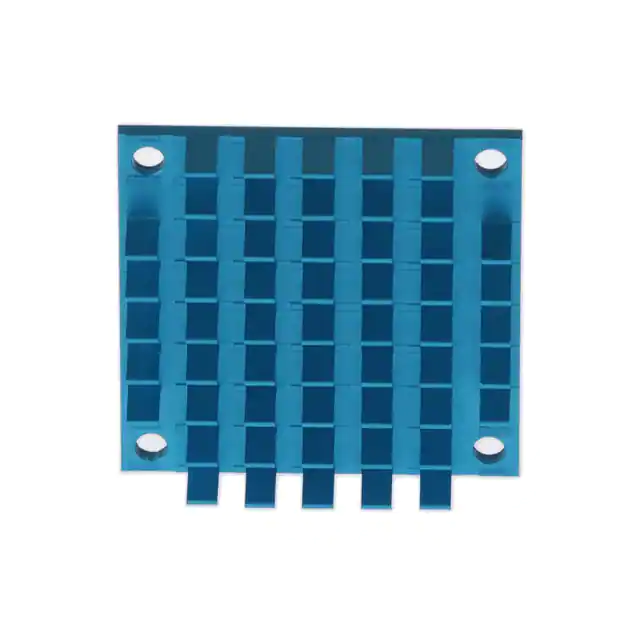

ATS-20C-197-C2-R0HEATSINK 45X45X10MM XCUT T766 |
1,670 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06D-169-C2-R0HEATSINK 30X30X10MM R-TAB T766 |
3,646 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-19D-197-C2-R0HEATSINK 45X45X10MM XCUT T766 |
4,219 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

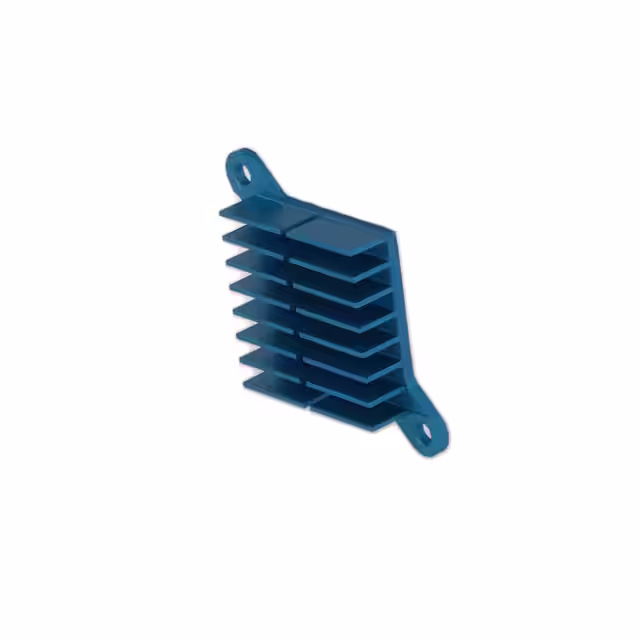

ATS-09E-169-C2-R0HEATSINK 30X30X10MM R-TAB T766 |
1,159 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10E-197-C2-R0HEATSINK 45X45X10MM XCUT T766 |
4,140 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-11E-141-C2-R0HEATSINK 30X30X10MM L-TAB T766 |
4,220 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

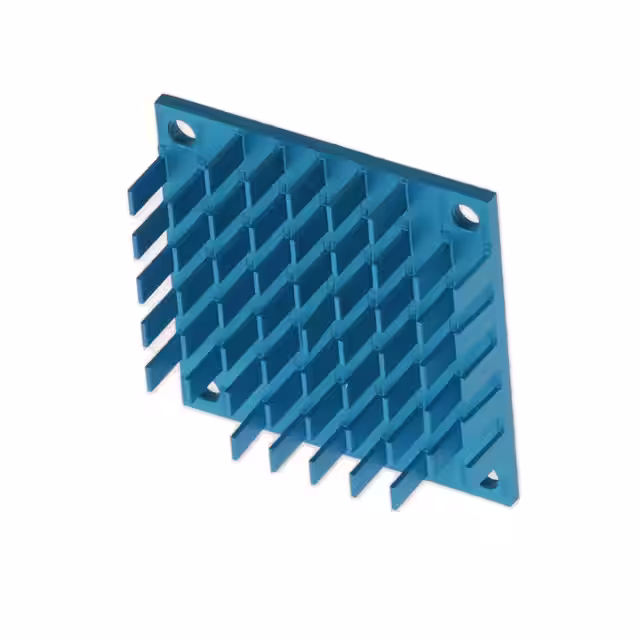

ATS-13E-197-C2-R0HEATSINK 45X45X10MM XCUT T766 |
3,684 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06F-169-C2-R0HEATSINK 30X30X10MM R-TAB T766 |
3,162 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10F-141-C2-R0HEATSINK 30X30X10MM L-TAB T766 |
1,162 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-03-C2-R0HEATSINK 40X40X15MM XCUT T766 |
3,324 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040025-184-C1-R0HEATSINK 40X40X25MM R-TAB CP |
1,121 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20E-03-C2-R0HEATSINK 40X40X15MM XCUT T766 |
2,946 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P1-47-C2-R0HEATSINK 25X25X30MM L-TAB T766 |
3,667 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.181" (30.00mm) | - | 9.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-13B-141-C2-R0HEATSINK 30X30X10MM L-TAB T766 |
4,509 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX040040025-156-C1-R0HEATSINK 40X40X25MM L-TAB CP |
4,759 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-03F-116-C2-R0HEATSINK 40X40X25MM XCUT T766 |
3,106 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
