Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-19E-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
2,678 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-76-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
4,385 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-19E-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,890 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-05C-01-C2-R0HEATSINK 40X40X10MM XCUT T766 |
2,298 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

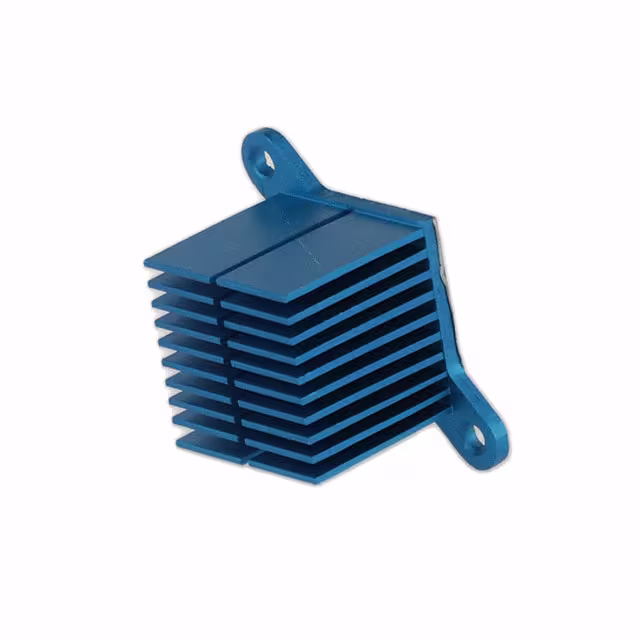

ATS-01G-76-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
1,995 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05G-01-C2-R0HEATSINK 40X40X10MM XCUT T766 |
3,118 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06H-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,607 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19H-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,682 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17B-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,587 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01C-01-C2-R0HEATSINK 40X40X10MM XCUT T766 |
3,890 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

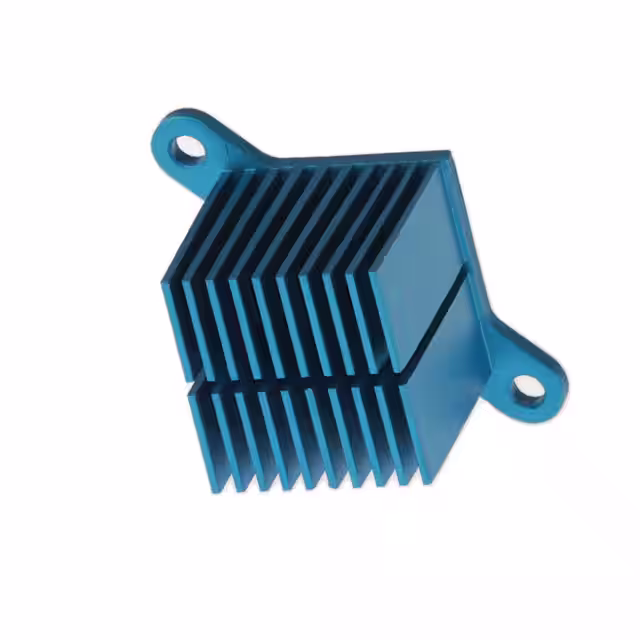

ATS-08C-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
4,690 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-09C-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
2,778 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20C-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
2,824 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

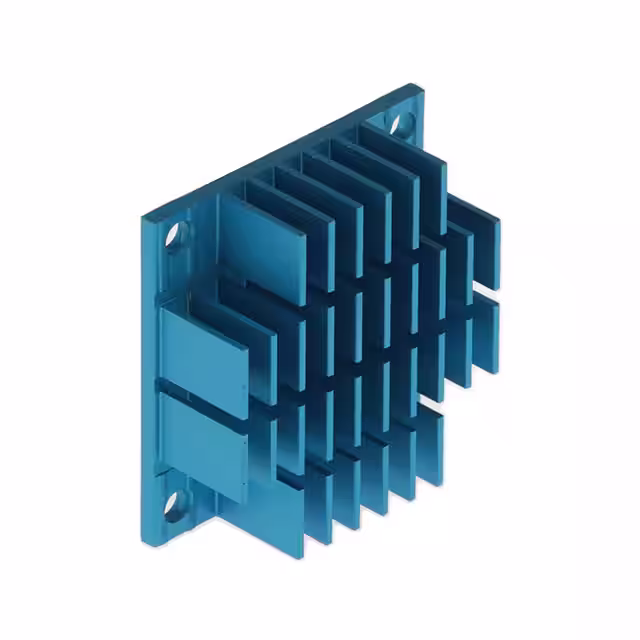

ATS-06D-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,785 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15D-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
2,456 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04E-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,923 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

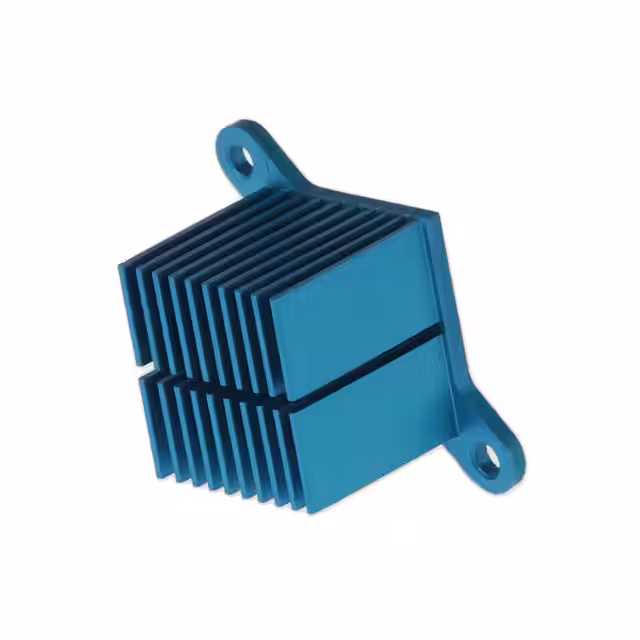

ATS-13E-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
4,248 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
1,470 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
1,608 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12F-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
4,914 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
