Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SK 675 50 ALExtruded Heatsink |
1,000 |
|
- |
SK 675 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.969" (50.00mm) | 0.744" (18.90mm) | - | 0.189" (4.80mm) | 3.25W @ 80°C | 6.82°C/W | 24.64°C/W | Aluminum | - |
|
SK 09 20 SA TO 220Extruded Heatsink |
1,000 |
|
Datasheet |
SK 09 | Bulk | Active | Board Level, Extrusion | TO-220 | - | Rectangular | 0.787" (20.00mm) | 1.142" (29.00mm) | - | 0.453" (11.50mm) | 10W @ 80°C | 2.48°C/W | 8°C/W | Aluminum | Black Anodized |
|
|
SK 616 75 SAExtruded Heatsink |
1,000 |
|
Datasheet |
SK 616 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 2.953" (75.00mm) | 0.315" (8.00mm) | - | 0.236" (6.00mm) | 3.27W @ 80°C | 7.6°C/W | 24.5°C/W | Aluminum | Black Anodized |
|
|
SK 09 37,5 MEExtruded Heatsink |
1,000 |
|
Datasheet |
SK 09 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.476" (37.50mm) | 1.142" (29.00mm) | - | 0.453" (11.50mm) | 9.09W @ 80°C | 2.48°C/W | 8.8°C/W | Aluminum | Natural Anodized |
|
|
SK 470 25 STS SOT 32Extruded Heatsink for PCB mounti |
1,000 |
|
- |
SK 470 | Bulk | Active | Board Level, Extrusion | SOT-32 | Screw | Rectangular | 0.984" (25.00mm) | 0.465" (11.80mm) | - | 0.315" (8.00mm) | 2.76W @ 80°C | 8.99°C/W | 29°C/W | Aluminum | Black Anodized |
|
|
SK 470 25 STS TO 220Extruded Heatsink for PCB mounti |
1,000 |
|
- |
SK 470 | Bulk | Active | Board Level, Extrusion | TO-220 | Screw | Rectangular | 0.984" (25.00mm) | 0.465" (11.80mm) | - | 0.315" (8.00mm) | 2.76W @ 80°C | 8.99°C/W | 29°C/W | Aluminum | Black Anodized |
|
|
SK 09 20 ME TO 220Extruded Heatsink |
1,000 |
|
Datasheet |
SK 09 | Bulk | Active | Board Level, Extrusion | TO-220 | - | Rectangular | 0.787" (20.00mm) | 1.142" (29.00mm) | - | 0.453" (11.50mm) | 9.09W @ 80°C | 2.48°C/W | 8.8°C/W | Aluminum | Natural Anodized |
|
|
ALB-821AS-50.827'' (21mm) Wide Heatsink |
500 |
|
Datasheet |
ALB-821AS | Retail Package | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 5.000" (127.00mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | - | - | 9.62°C/W | Aluminum Alloy | Unfinished |
|
SAR175ASX30MMEXTRUDED HEATSINK 28X30MM |
3,919 |
|
Datasheet |
175AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.181" (30.00mm) | 1.102" (28.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
SAR176ASX30MMEXTRUDED HEATSINK 55X30MM |
3,181 |
|
Datasheet |
176AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.181" (30.00mm) | 2.165" (55.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SAR175ASX40MMEXTRUDED HEATSINK 28X40MM |
3,151 |
|
Datasheet |
175AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.575" (40.00mm) | 1.102" (28.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SAR175ASX50MMEXTRUDED HEATSINK 28X50MM |
1,211 |
|
Datasheet |
175AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.969" (50.00mm) | 1.102" (28.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
SAR102AS-40MMEXTRUDED HEATSINK 51X40MM |
3,604 |
|
Datasheet |
102AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.575" (40.00mm) | 2.008" (51.00mm) | - | 0.906" (23.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SAR175ASX60MMEXTRUDED HEATSINK 28X60MM |
1,386 |
|
Datasheet |
175AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 2.362" (60.00mm) | 1.102" (28.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|

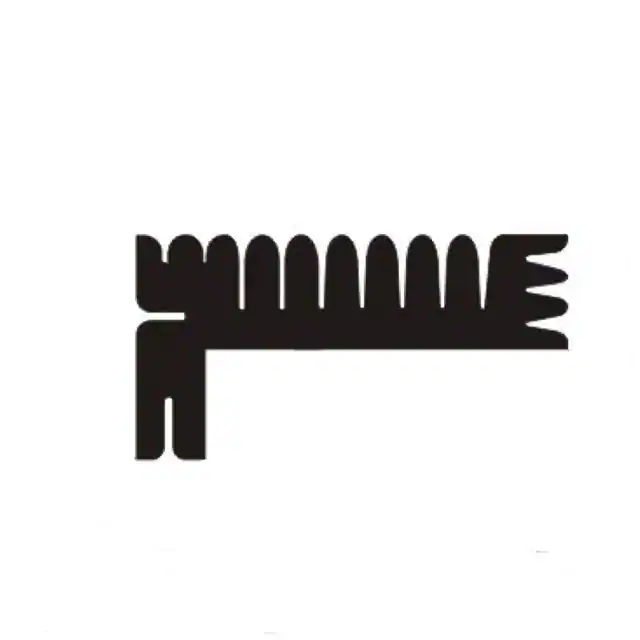

SAR176ASX40MMEXTRUDED HEATSINK 55X40MM |
3,118 |
|
Datasheet |
176AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.575" (40.00mm) | 2.165" (55.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SAR175ASX70MMEXTRUDED HEATSINK 28X70MM |
2,432 |
|
Datasheet |
175AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 2.756" (70.00mm) | 1.102" (28.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SAR176ASX50MMEXTRUDED HEATSINK 55X50MM |
1,809 |
|
Datasheet |
176AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.969" (50.00mm) | 2.165" (55.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SAR176ASX60MMEXTRUDED HEATSINK 55X60MM |
4,746 |
|
Datasheet |
176AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 2.362" (60.00mm) | 2.165" (55.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Natural Anodized |
|

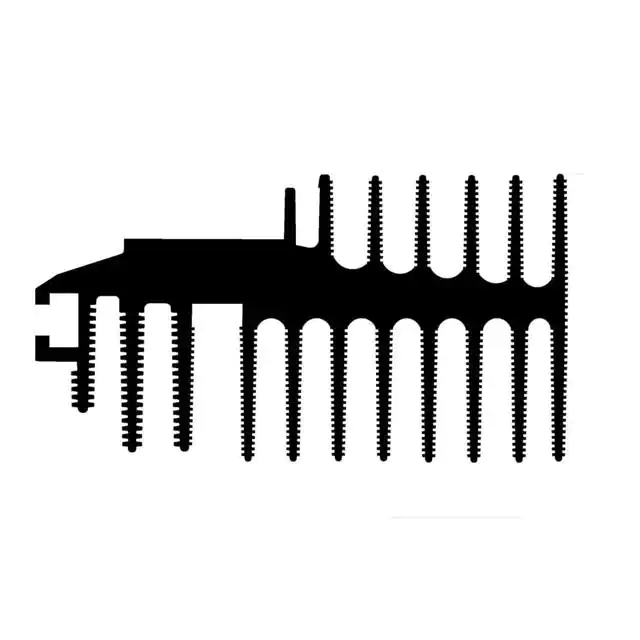

SAR1183AS-40MMEXTRUDED HEATSINK 74.1X40MM |
1,306 |
|
Datasheet |
118AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 1.575" (40.00mm) | 2.917" (74.10mm) | - | 1.579" (40.10mm) | - | - | - | Aluminum | Natural Anodized |
|
CS8673010B030X30X10MM |
1,588 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 7.05°C/W @ 200 LFM | - | Aluminum | Black Anodized |
