Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-01A-182-C2-R0HEATSINK 40X40X15MM R-TAB T766 |
1,793 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-02A-125-C2-R0HEATSINK 54X54X10MM XCUT T766 |
4,478 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.92°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06A-154-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
4,009 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-08A-125-C2-R0HEATSINK 54X54X10MM XCUT T766 |
1,614 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.92°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06B-125-C2-R0HEATSINK 54X54X10MM XCUT T766 |
3,044 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.92°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-11B-125-C2-R0HEATSINK 54X54X10MM XCUT T766 |
1,376 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.92°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03C-125-C2-R0HEATSINK 54X54X10MM XCUT T766 |
4,748 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.92°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03C-154-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
2,614 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03C-182-C2-R0HEATSINK 40X40X15MM R-TAB T766 |
1,826 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04C-154-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
4,287 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12C-154-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
2,959 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12D-154-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
4,936 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-154-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
2,801 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-103-C1-R1HEATSINK 40X40X9.5MM XCUT |
2,200 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 27.64°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
AER31-31-1232/A01TYPE: TOP MOUNT / SHAPE: SQUARE |
1,597 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

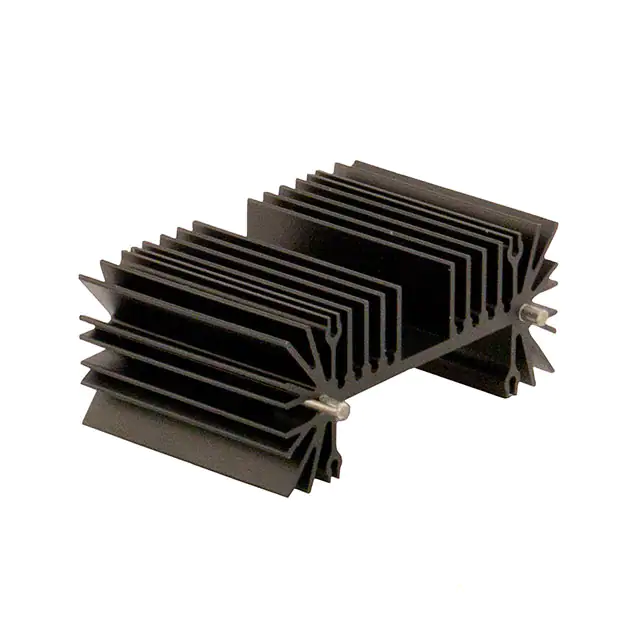

VM3-038-1AEHEATSINK UNIVERSAL |
4,383 |
|
Datasheet |
VM | Bulk | Obsolete | Board Level | TO-220, TO-247 | Solderable Feet | Rectangular, Fins | 1.520" (38.61mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | 10.0W @ 50°C | 0.60°C/W @ 600 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-122-C2-R0HEATSINK 50X50X15MM XCUT T766 |
4,128 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 5.87°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-126-C3-R0HEATSINK 54X54X15MM XCUT T412 |
2,490 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 5.54°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-126-C3-R0HEATSINK 54X54X15MM XCUT T412 |
3,066 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 5.54°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-126-C3-R0HEATSINK 54X54X15MM XCUT T412 |
2,862 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 5.54°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
