Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

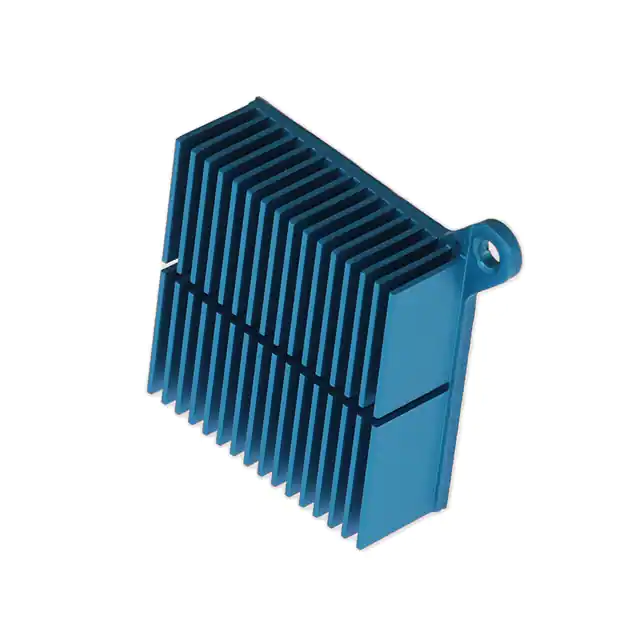

ATS-01A-92-C2-R0HEATSINK 40X40X15MM R-TAB T766 |
2,348 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-17A-62-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
2,615 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-17A-92-C2-R0HEATSINK 40X40X15MM R-TAB T766 |
1,034 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

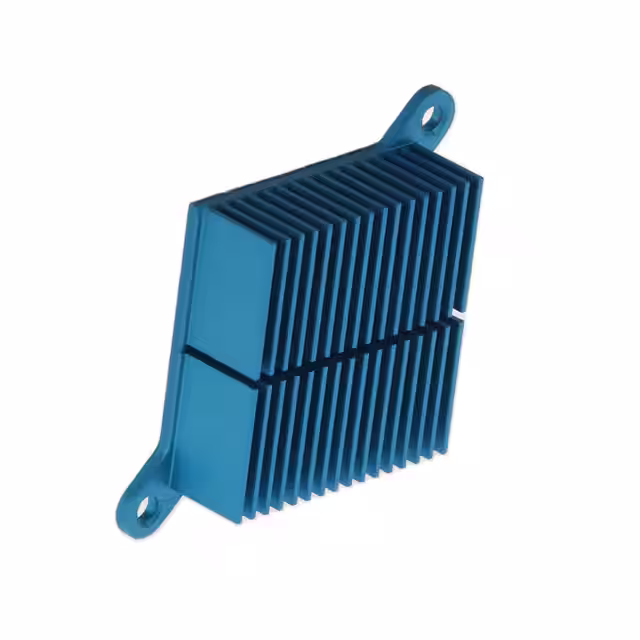

ATS-06C-92-C2-R0HEATSINK 40X40X15MM R-TAB T766 |
4,326 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-02D-92-C2-R0HEATSINK 40X40X15MM R-TAB T766 |
1,528 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-13D-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
1,661 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10E-62-C2-R0HEATSINK 40X40X15MM L-TAB T766 |
2,721 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-93-C2-R0HEATSINK 40X40X20MM R-TAB T766 |
3,135 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 12.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19F-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
1,033 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07B-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
3,333 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07H-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
4,225 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-152-C2-R0HEATSINK 35X35X35MM L-TAB T766 |
2,334 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
4,317 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
3,578 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
3,938 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
3,960 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04F-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
2,984 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05F-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
2,040 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06F-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
4,250 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-08F-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
2,129 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
