RF Directional Coupler
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWCP1051WR-75 Waveguide 20 dB Crossguide |
2,573 |
|
Datasheet |
- | Retail Package | Active | Standard | 10GHz ~ 15GHz | 20dB | General Purpose | 0.1dB | - | - | - | - |
|
|
PE2203-20Directional 20 dB SMA Coupler Fr |
4,078 |
|
Datasheet |
- | Retail Package | Active | Standard | 2.6GHz ~ 5.2GHz | 20 ± 1.25dB | General Purpose | 0.25dB | 50W | - | - | Module |
|

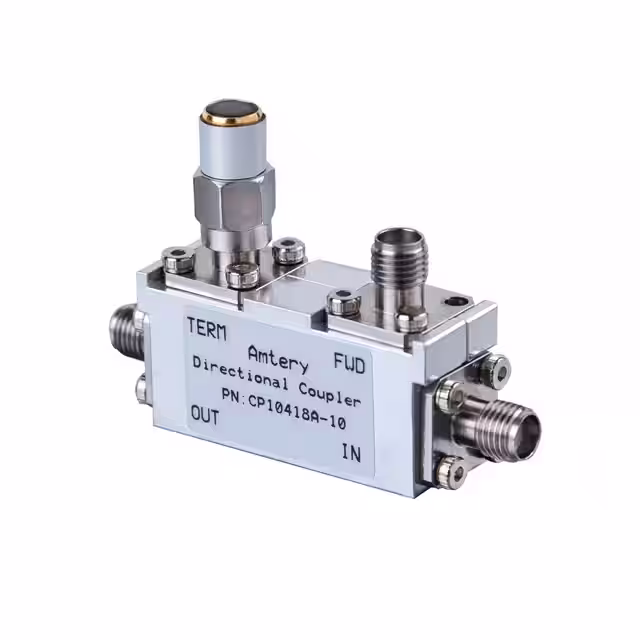

CP10418A-104 GHz - 18 GHz, 10 dB Coupling |
1,872 |
|
Datasheet |
- | Box | Active | Standard | 4GHz ~ 18GHz | 10dB | General Purpose | 1dB | 20W | 30dB | 21dB | Module |
|

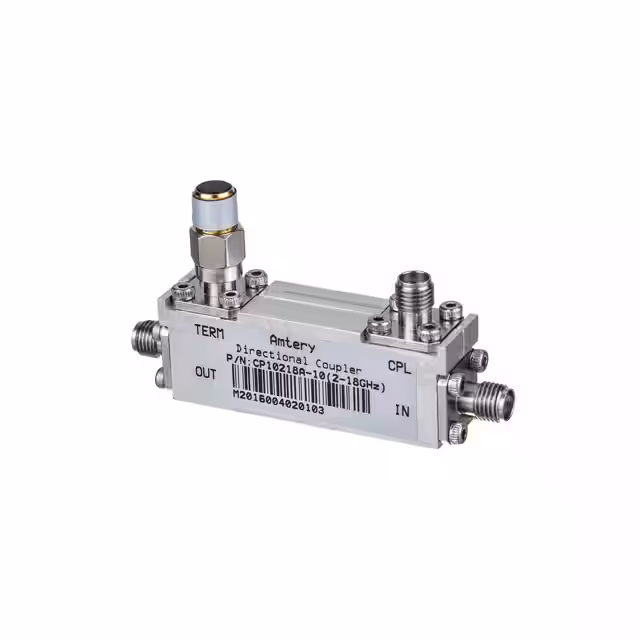

CP10218A-102 GHz - 18 GHz, 10 dB Coupling |
4,505 |
|
Datasheet |
- | Box | Active | Standard | 2GHz ~ 18GHz | 10dB | General Purpose | 1.1dB | 20W | 33dB | 21dB | Module |
|

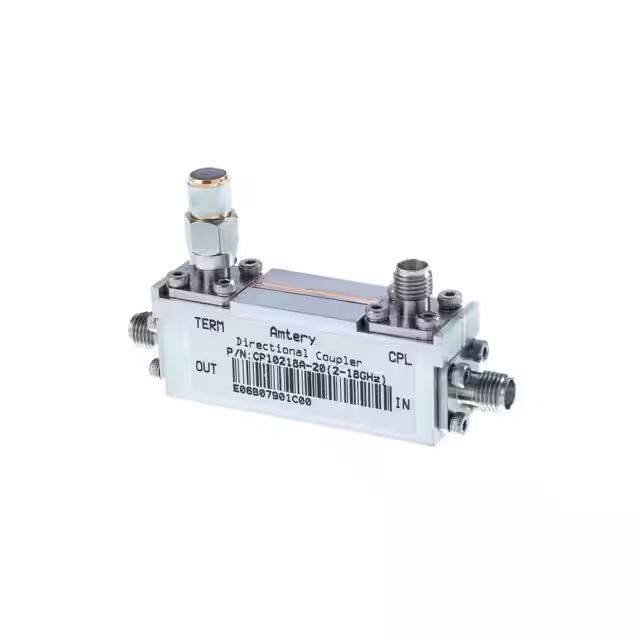

CP10218A-202 GHz - 18 GHz, 20 dB Coupling |
1,978 |
|
Datasheet |
- | Box | Active | Standard | 2GHz ~ 18GHz | 20dB | General Purpose | 0.5dB | 20W | 42dB | 26dB | Module |
|
|
PEWCP1076WR-137 Waveguide 30 dB Crossguid |
1,471 |
|
Datasheet |
- | Retail Package | Active | Standard | 5.85GHz ~ 8.2GHz | 30dB | General Purpose | 0.1dB | - | - | - | - |
|
|
PE2243-16Directional 16 dB SMA Coupler to |
3,378 |
|
Datasheet |
- | Retail Package | Active | Standard | 500MHz ~ 18GHz | 16 ± 1.25dB | General Purpose | 1.6dB | 30W | - | - | Module |
|
|
PE2202-6Directional 6 dB SMA Coupler Fro |
2,974 |
|
Datasheet |
- | Retail Package | Active | Standard | 2GHz ~ 4GHz | 6 ± 1dB | General Purpose | 0.2dB | 50W | - | - | Module |
|
|
PEWCP1075WR-137 Waveguide 20 dB Crossguid |
1,039 |
|
Datasheet |
- | Retail Package | Active | Standard | 5.85GHz ~ 8.2GHz | 20dB | General Purpose | 0.1dB | - | - | - | - |
|
|
PE2215-20Directional 20 dB SMA Coupler Fr |
4,742 |
|
Datasheet |
- | Retail Package | Active | Standard | 2GHz ~ 18.4GHz | 20 ± 1dB | General Purpose | 0.8dB | 25W | - | - | Module |
|

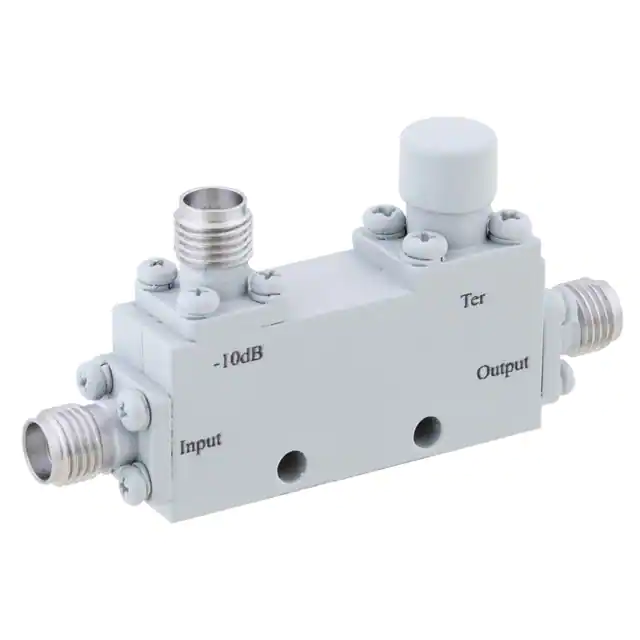

PE2CP1104CPLR 10DBSMA 4-18GHZ 50W |
2,815 |
|
Datasheet |
- | Bag | Active | Standard | 4GHz ~ 18GHz | 10dB | CDMA, GSM, LTE | 0.5dB | 50W | - | - | Module |
|

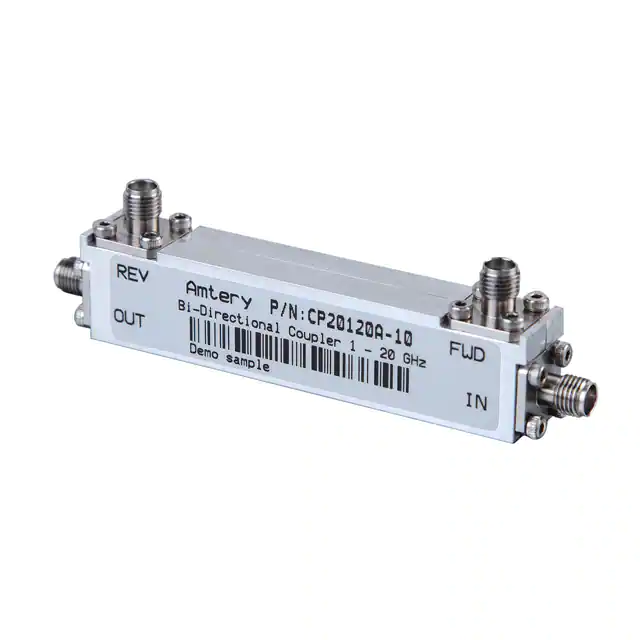

CP20120A-101 GHz - 20 GHz, 10 dB Coupling |
3,750 |
|
Datasheet |
- | Box | Active | Standard | 1GHz ~ 20GHz | 10dB | General Purpose | 1.9dB | 20W | 33dB | 23dB | Module |
|
|
PEWCP1010WR-51 Waveguide 30 dB Broadwall |
4,423 |
|
Datasheet |
- | Retail Package | Active | Standard | 15GHz ~ 22GHz | 30dB | General Purpose | 0.15dB | - | - | - | - |
|
|
PE2CP1137-20Directional 20 dB SMA Coupler fr |
1,265 |
|
Datasheet |
- | Retail Package | Active | Standard | 500MHz ~ 1GHz | 20dB | General Purpose | 0.2dB | 50W | - | - | - |
|
|
PEWCP1022WR-90 Waveguide 30 dB Broadwall |
4,550 |
|
Datasheet |
- | Retail Package | Active | Standard | 8.2GHz ~ 12.4GHz | 30dB | General Purpose | 0.15dB | - | - | - | - |
|
|
PEWCP1033WR-137 Waveguide 20 dB Broadwall |
2,295 |
|
Datasheet |
- | Retail Package | Active | Standard | 5.85GHz ~ 8.2GHz | 20dB | General Purpose | 0.15dB | - | - | - | - |
|
|
PEWCP1032WR-137 Waveguide 10 dB Broadwall |
4,249 |
|
Datasheet |
- | Retail Package | Active | Standard | 5.85GHz ~ 8.2GHz | 10dB | General Purpose | 0.15dB | - | - | - | - |
|
|
PEWCP1005WR-34 Waveguide 10 dB Broadwall |
1,953 |
|
Datasheet |
- | Retail Package | Active | Standard | 22GHz ~ 33GHz | 10dB | General Purpose | 0.35dB | - | - | - | - |
|
PE2CP1129-10CPLR 10DB 2.92MM 6-26.5GHZ 30W |
2,634 |
|
Datasheet |
- | Bag | Active | Standard | 6GHz ~ 26.5GHz | 10dB | 5G, GSM, LTE | 1dB | 30W | - | - | Module |
|
CP10118A-201 GHz - 18 GHz, 20 dB Coupling |
2,634 |
|
Datasheet |
- | Box | Active | Standard | 1GHz ~ 18GHz | 20dB | General Purpose | 1dB | 20W | 42dB | 26dB | Module |
