Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-10-D-10.00-01-SR2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,005 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-07-20-L-12.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
3,975 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-10-28-G-04.00-S.050" TIGER EYE DOUBLE ROW DISCR |
2,860 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SD-05-24-L-06.00-D-NUS2.00 MM TIGER EYE DOUBLE ROW DIS |
1,377 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-10-30-G-04.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,305 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T2SDT-10-24-L-06.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
1,396 |
|
Datasheet |
Tiger Eye™ T2SDT | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FFMD-20-S-06.00-01-RW.050 CABLE PLUG |
2,062 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Plug to Cable | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.500' (152.40mm, 6.00") | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCSD-12-D-05.20-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,125 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.433' (132.08mm, 5.20") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-D-04.30-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,441 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.358' (109.22mm, 4.30") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-16-S-08.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,828 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 32 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-15-D-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,819 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-D-04.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,611 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S2SD-06-24C-L-08.00-SS2.00 MM TIGER EYE DOUBLE ROW DIS |
2,596 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.079" (2.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SD-12-28-GF-03.50-L1MICRO MATE DOUBLE ROW DISCRETE W |
3,151 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Socket | 24 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSDT-10-24-L-10.00-S-K-MMINI-MATE CABLE ASSEMBLY, FEP |
2,965 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
PMSDT-05-24-K-06.00-D-LUS.165" POWER MATE DOUBLE ROW DISC |
4,372 |
|
Datasheet |
Power Mate® PMSDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Tin | - |
|
|
A3CCA-3036GIDC CABLE-AKN30A/ AE34G / AKN30A |
3,967 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

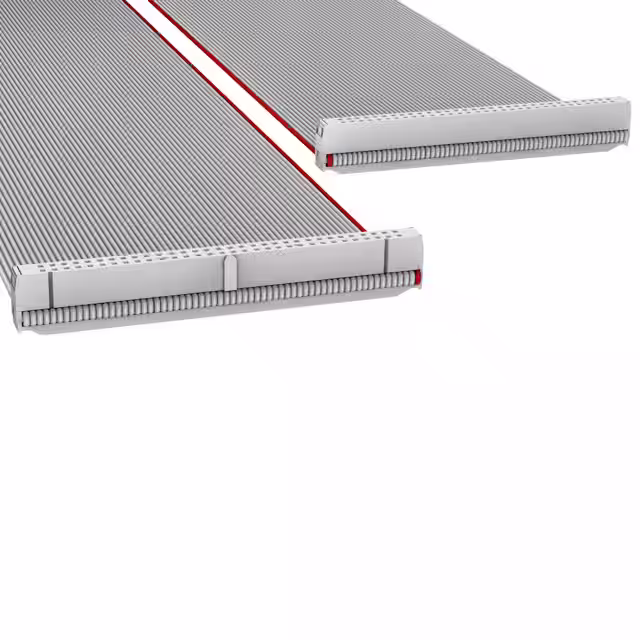

H3DDH-6436GIDC CBL - HHKR64H/AE64G/HHKR64H |
1,721 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CWH-6418GIDC CBL - HHKC64H/AE64G/HHPL64H |
3,702 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

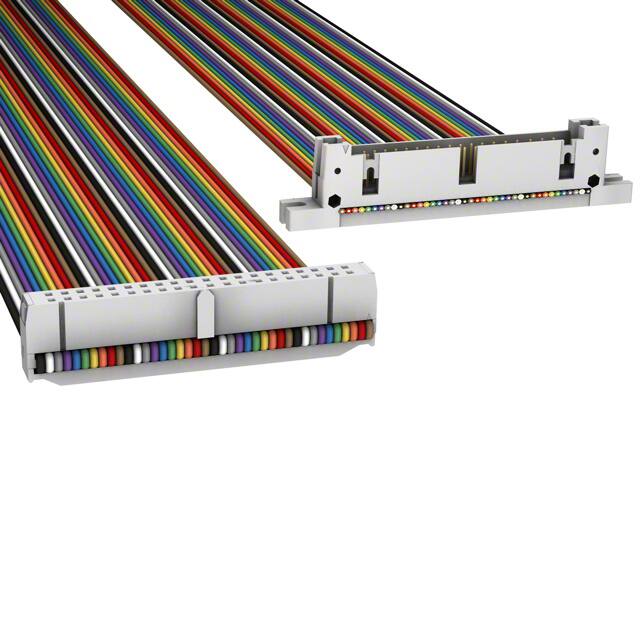

H3DWH-4036MIDC CBL - HHKR40H/AE40M/HHPL40H |
4,348 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
