Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-17-S-07.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,730 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-17-S-07.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,939 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-18.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,503 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-10-28C-G-03.25-D-NUS.050 SOCKET DISCRETE CABLE ASSEM |
1,698 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-04-T-20.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,984 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-D-03.94-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,826 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3KKH-2618NIDC CBL - LPK26H/CN221GR/LPK26H |
2,178 |
|
- |
- | Bulk | Active | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
T1PD-07-28-GF-06.0-A-T3CBL 1MM 14POS PNL MNT M TO F |
3,412 |
|
- |
Micro Mate™ T1PD | Bulk | Active | Socket to Plug | 14 | 2 | 0.039" (1.00mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-10-20-L-15.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
1,525 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T2SD-05-24-L-10.00-T-NUS2.00 MM TIGER EYE DOUBLE ROW DIS |
4,392 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T1SD-10-28-GF-06.0-T11.00 MM MICRO MATE DOUBLE ROW DI |
4,383 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 20 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
A1DXA-2636MIDC CABLE- AKP26A/ AE26M / X |
3,740 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3BBH-1636MIDC CABLE - ASR16H/AE16M/ASR16H |
4,552 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A6MMS-2018GIDC CABLE - ADM20S/AE20G/ADM20S |
2,539 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
A8MMS-2018GADM20S/AE20G/ADM20S |
2,039 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

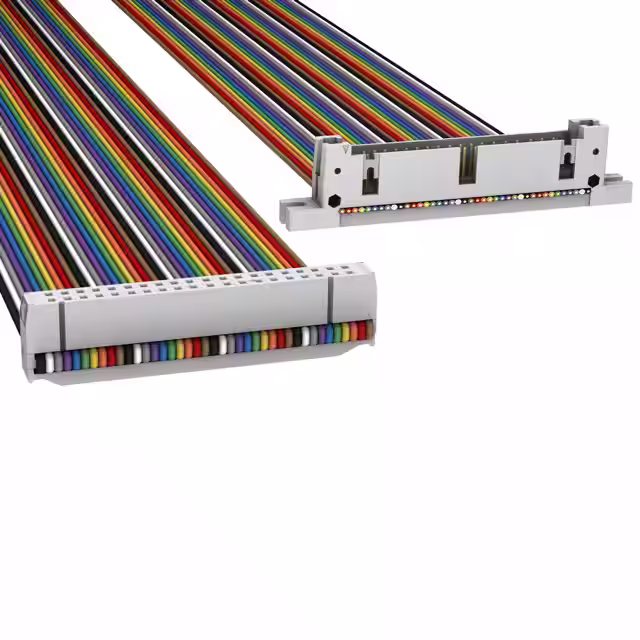

H3BWH-4036MIDC CBL - HHSR40H/AE40M/HHPL40H |
1,581 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3AAS-2618GIDC CABLE - CSC26S/AE26G/CSC26S |
4,786 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CCS-2618GIDC CABLE - CKC26S/AE26G/CKC26S |
2,188 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
A3CCB-2418MIDC CABLE- AKC24B/AE24M/AKC24B |
3,583 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.25-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,351 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.354' (107.95mm, 4.25") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
