Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-D-03.00-01-N-P102MM DOUBLE ROW FEMALE IDC ASSEMB |
3,856 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-10.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,912 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-D-12.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,992 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-13-T-02.75-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,225 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-05-D-25.40INSULATION DISPLACEMENT TERMINAL |
1,148 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 2.12' (645.16mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSD-07-28-H-03.94-S.050" TIGER EYE DOUBLE ROW DISCR |
2,066 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | 0.328' (100.00mm, 3.94") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
A3BBH-2418GIDC CABLE - ASR24H/AE24G/ASR24H |
1,888 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3DDH-2418GIDC CABLE - AKR24H/AE24G/AKR24H |
2,242 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

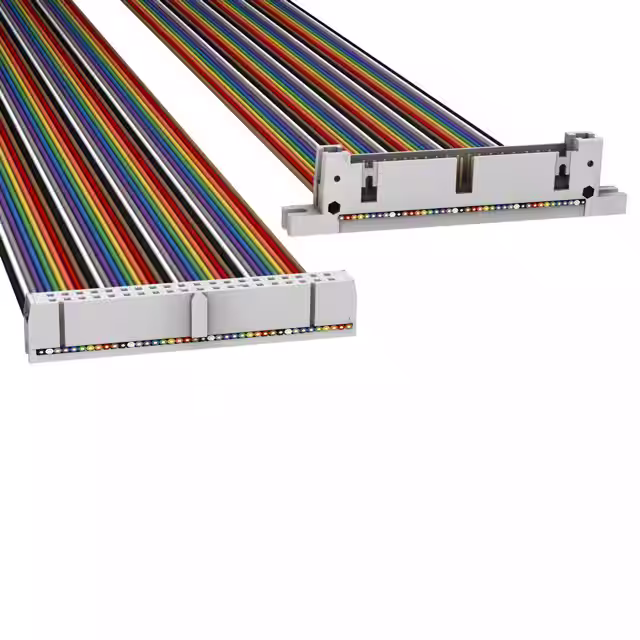

H3CWH-4036MIDC CBL - HHKC40H/AE40M/HHPL40H |
4,548 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
A3DDB-2418GIDC CABLE- AKR24B/AE24G/AKR24B |
3,013 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,422 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,069 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.00-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,082 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.00-01-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,202 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-12-S-11.81-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,766 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.984' (300.00mm, 11.81") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-22-S-10.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,223 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-22-S-10.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,816 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

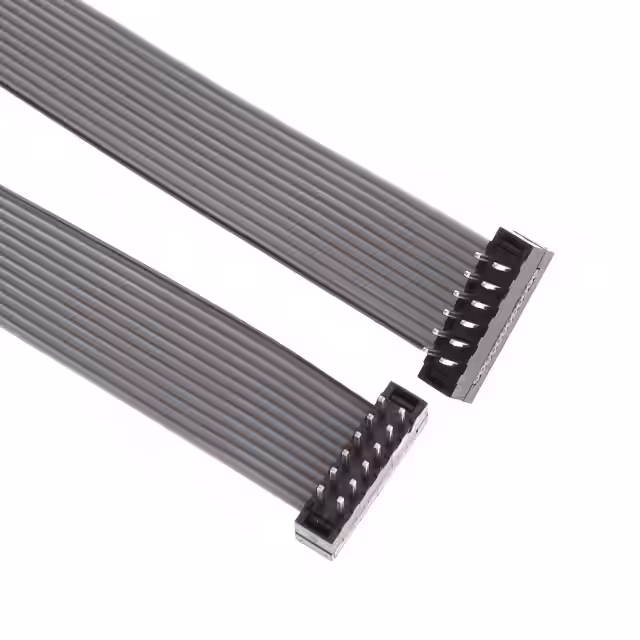

TCMD-06-D-20.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,414 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-07-T-14.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,621 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1SD-09-28-GF-02.0-T3CBL ASSY 1MM 18POS M TO F |
4,863 |
|
- |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 18 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
