Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-D-03.75-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,451 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.313' (95.25mm, 3.75") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-08-T-11.00-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,308 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-15-D-01.50-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,186 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.125' (38.10mm, 1.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
12-024-106DIP CABLE 12POS |
1,007 |
|
Datasheet |
106 | Bulk | Active | DIP to Cable | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 2.00' (609.60mm) | - | Multiple, Ribbon | Unshielded | - | Solder | Gold | 10.0µin (0.25µm) |
|
|
12-024-110DIP CABLE 12POS |
3,480 |
|
Datasheet |
110 | Bulk | Active | DIP to Cable | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 2.00' (609.60mm) | - | Multiple, Ribbon | Unshielded | - | Solder | Gold | 10.0µin (0.25µm) |
EK-10 G.jpg)
|
M3DEK-1006JIDC CABLE - MKR10K/MC10G/MCE10K |
1,377 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3AAA-3436JIDC CABLE - MSC34A/MC34G/MSC34A |
3,444 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BBA-6006RIDC CABLE - MSR60A/MC60M/MSR60A |
4,091 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CCA-3436JIDC CABLE - MKC34A/MC34G/MKC34A |
1,125 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BEK-1006JIDC CABLE - MSR10K/MC10G/MCE10K |
4,352 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

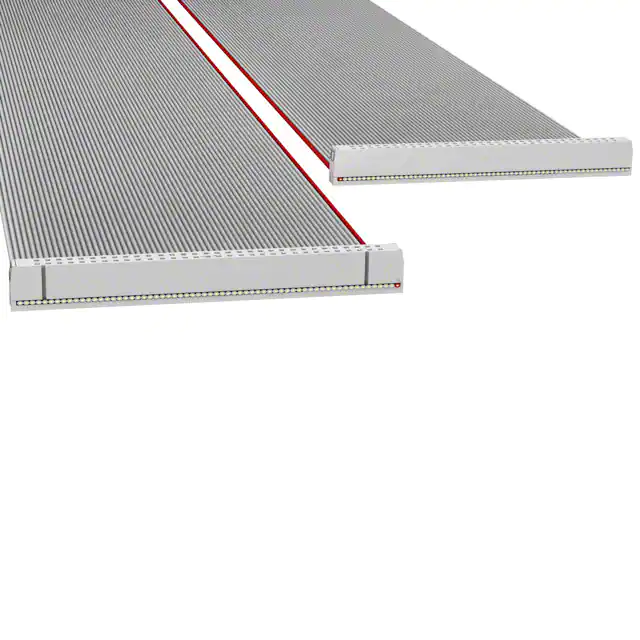

H3AAH-6436GIDC CBL - HHSC64H/AE64G/HHSC64H |
1,386 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

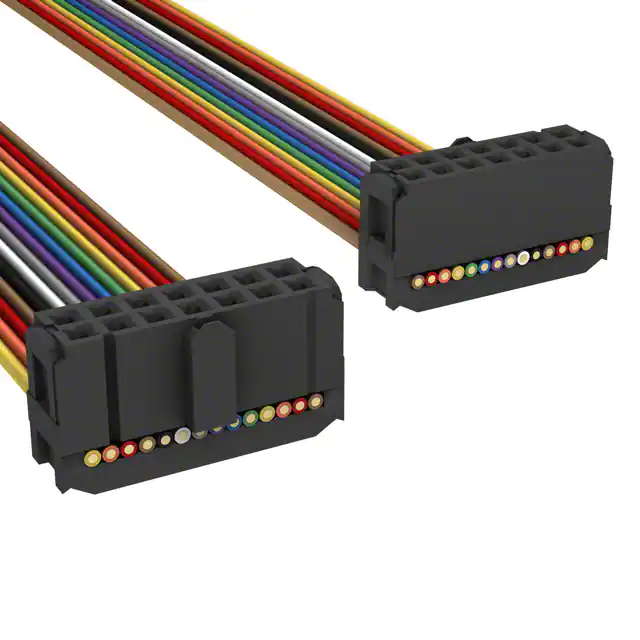

A3CCB-1436MIDC CABLE- AKC14B/AE14M/AKC14B |
4,873 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-08.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,207 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-08.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,416 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-08.00-01-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,462 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-25-S-08.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,060 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-25-S-08.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,915 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-12-D-07.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,397 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-12-D-07.00-01-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,240 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-T-03.00-01-RF2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,008 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
