Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-04-D-04.50-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,135 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.375' (114.30mm, 4.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-07.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,906 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-07.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,127 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-07.50-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,915 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-16-S-12.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,196 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 32 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-05-28C-H-08.00-DR-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
2,234 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
IDMD-08-T-12.00SLIM BODY DOUBLE-ROW IDC MALE AS |
1,584 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSDT-07-28-F-12.00-S.050" TIGER EYE DOUBLE ROW DISCR |
4,219 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCMD-07-D-15.00-012.00 MM IDC RIBBON CABLE ASSEMBL |
3,345 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSD-03-28-G-05.91-D-NUS.050" TIGER EYE DOUBLE ROW DISCR |
3,066 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 6 | 2 | 0.050" (1.27mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

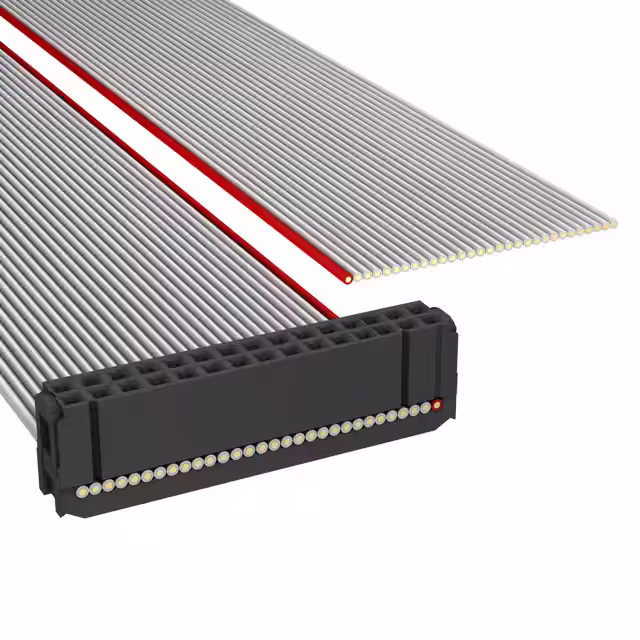

A1AXH-3036GIDC CABLE - ASC30H/AE30G/X |
4,298 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A1AXH-3436GIDC CABLE - ASC34H/AE34G/X |
3,290 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

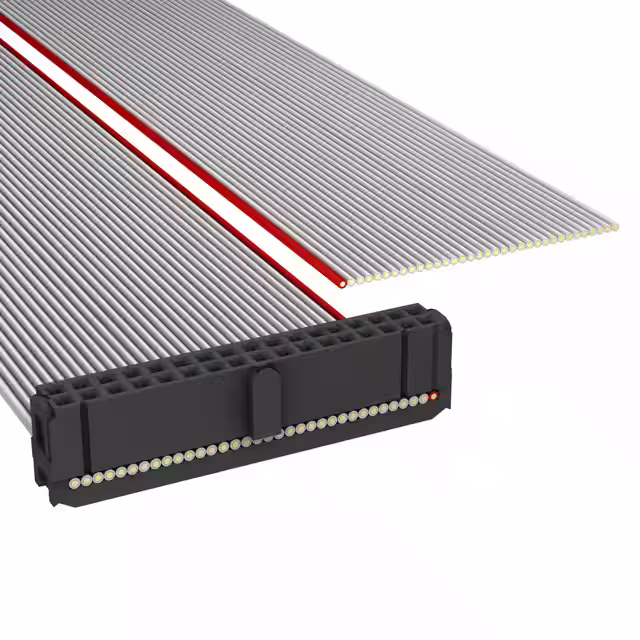

A1CXH-3436GIDC CABLE - AKC34H/AE34G/X |
2,556 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H3AAS-3036MIDC CBL - HHSC30S/AE30M/HHSC30S |
1,912 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
H3CCS-3036MIDC CABLE - HKC30S/AE30M/HKC30S |
4,892 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
H3AAS-3018MIDC CBL - HHSC30S/AE30M/HHSC30S |
1,724 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
H3CCS-3018MIDC CABLE - HKC30S/AE30M/HKC30S |
4,944 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
A1CXB-3436GIDC CABLE- AKC34B/AE34G/X |
2,550 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3BBB-2606GIDC CABLE- ASR26B/AE26G/ASR26B |
4,919 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-08-D-09.45-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,943 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.787' (240.00mm, 9.45") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
