Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-12-D-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,392 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-12-D-05.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,132 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-25-S-08.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,486 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCSS-18-S-06.00-01-N-RWIDC SOCKET AND TERMINAL CABLE AS |
3,036 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 18 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
S1SD-10-28-GF-05.00-L2MICRO MATE DOUBLE ROW DISCRETE W |
4,722 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Socket | 20 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSDT-05-28-G-14.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,504 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 1.17' (355.60mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSDT-05-28-G-14.00-SL.050" TIGER EYE DOUBLE ROW DISCR |
4,353 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 1.17' (355.60mm) | Friction Lock | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
A3CCA-2636GIDC CABLE-AKN26A/ AE26G / AKN26A |
4,252 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1AXK-1036RIDC CABLE - MSC10K/MC10M/X |
3,204 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1CXK-1036RIDC CABLE - MKC10K/MC10M/X |
2,265 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAH-2618GIDC CABLE - ASC26H/AE26G/ASC26H |
4,711 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3CCH-2618GIDC CABLE - AKC26H/AE26G/AKC26H |
3,762 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

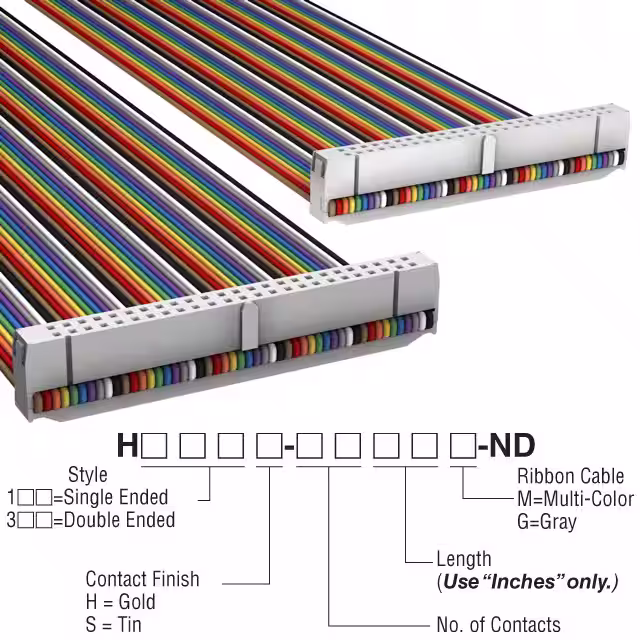

H3DDH-5036MIDC CBL - HKR50H/AE50M/HKR50H |
3,675 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3KKH-2436GIDC CBL - HHPK24H/AE24G/HHPK24H |
2,091 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3PES-1036GIDC CABLE - CPC10S/AE10G/CCE10S |
2,432 |
|
Datasheet |
- | Bulk | Active | Card Edge to PCB | 10 | 2, 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-05-S-23.62-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,887 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.97' (599.95mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-12.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,140 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-12.00-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,037 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-12.00-01-F-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,769 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-22-S-08.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,732 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
