Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMSD-06-24C-F-36.00-S.100" MINI MATE UNIVERSAL DOUBLE |
2,075 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SMSS-08-24-L-24.62-D-K-KDX.100" MINI MATE UNIVERSAL SINGLE |
4,108 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 8 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-10-D-10.50-012.00 MM IDC RIBBON CABLE ASSEMBL |
1,315 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMS-17-D-03.00-G-RSLIM BODY SINGLE-ROW IDC MALE AS |
1,253 |
|
Datasheet |
IDMS | Bulk | Active | Plug to Plug, Reversed | 17 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMTS-06-28C-L-20.00-D-TUS.100" MINI MATE SINGLE ROW DISCR |
1,318 |
|
Datasheet |
Mini Mate® MMTS | Bulk | Active | Plug to Plug | 6 | 1 | 0.100" (2.54mm) | - | - | - | Multiple, Individual | Shielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SDT-08-28-GF-08.00-LMICRO MATE DOUBLE ROW DISCRETE T |
1,834 |
|
Datasheet |
Micro Mate™ S1SDT | Bulk | Active | Socket to Individual Wire Leads | 16 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSDT-05-28-H-06.00-S.050" TIGER EYE DOUBLE ROW DISCR |
4,217 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSS-10-28C-H-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
2,582 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 10 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-05-28-H-09.00-S.050" TIGER EYE DOUBLE ROW DISCR |
3,258 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.750' (228.60mm, 9.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
SMSD-05-24-F-18.00-D-K-KDX.100" MINI MATE UNIVERSAL DOUBLE |
3,545 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
TCSD-08-S-22.00-01-F-N-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,951 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.83' (558.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
PMSS-10-24-K-12.00-S.165" POWER MATE SINGLE ROW DISC |
3,120 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 10 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
FI-X30HL-KITASSY-300MCABLE ASSY FI-X 30POS 300MM |
1,748 |
|
- |
FI-X | Bulk | Obsolete | Plug to Plug | 30 | 2 | 0.039" (1.00mm) | - | 0.984' (300.00mm, 11.81") | Assembly Kit | Gray, Individual | - | Display Cable | Crimp | Tin | - |
|
A1CXG-3436GIDC CABLE-AKC34G/ AE34G / X |
2,381 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3AAS-1036MIDC CABLE - CSC10S/AE10M/CSC10S |
1,661 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CCS-1036MIDC CABLE - CKC10S/AE10M/CKC10S |
4,163 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|

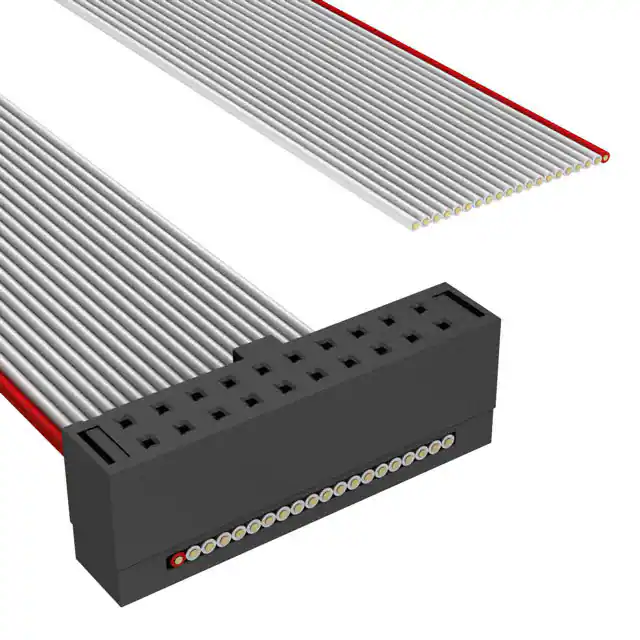

TCSD-10-S-18.00-01CABLE ASSY 20POS W/SINGLE SOCKET |
2,831 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-04.33-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,666 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.361' (109.98mm, 4.33") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-18.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,838 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-S-20.00-01-L-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,191 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
