Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-10-S-16.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,124 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-D-07.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,856 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-D-07.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,908 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMTD-07-20-F-03.00-S.100" MINI MATE DOUBLE ROW DISCR |
3,974 |
|
Datasheet |
Mini Mate® MMTD | Bulk | Active | Plug to Plug | 14 | 2 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SFSD-05-28C-G-04.50-DR-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
1,147 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDSD-07-D-05.91SLIM BODY DOUBLE-ROW IDC SOCKET |
4,811 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SFSDT-07-28-G-08.00-D-NDXDOUBLE ROW DISCRETE FEP WIRE |
3,617 |
|
Datasheet |
Tiger Eye™ SFSDT | Bag | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSD-05-24C-L-13.00-S-K.100" MINI MATE UNIVERSAL DOUBLE |
2,652 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

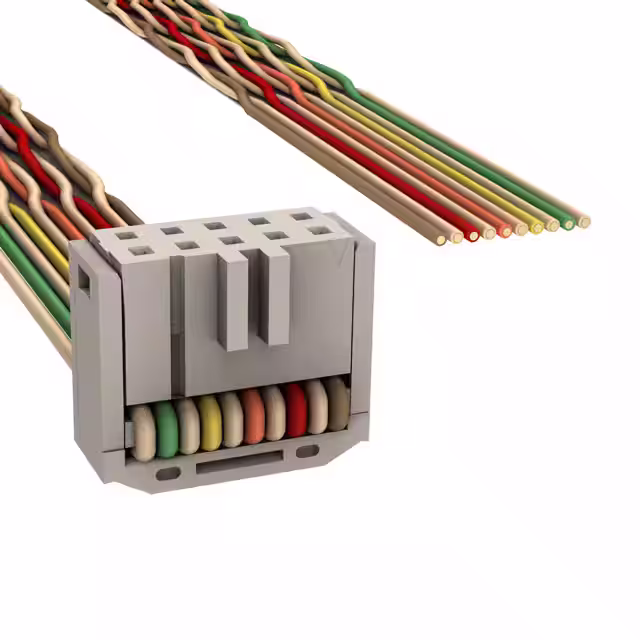

M1DXA-1040KIDC CABLE - MKR10A/MC10F/X |
1,410 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1BXA-1040KIDC CABLE - MSR10A/MC10F/X |
2,093 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1BXA-1436JIDC CABLE - MSR14A/MC14G/X |
1,236 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A6MMT-2036GADM20T/AE20G/ADM20T |
2,901 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A8MMT-2036GADM20T/AE20G/ADM20T |
1,798 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H3AWH-3018MIDC CBL - HHSC30H/AE30M/HHPL30H |
3,287 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3KKH-2618GIDC CBL - HHPK26H/AE26G/HHPK26H |
2,041 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3WWH-2618GIDC CBL - HHPL24H/AE26G/HHPL26H |
3,347 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-06-D-03.35-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,610 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.279' (85.09mm, 3.35") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-17-S-07.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,012 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-T-02.70-01-N-RW-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,230 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-D-02.25-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,116 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
