Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1WXH-2636MIDC CBL - HHPL24H/AE26M/X |
3,021 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCSD-04-D-07.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,494 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-04-D-07.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,407 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-04-D-07.00-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,553 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-22-S-02.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,543 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-12.00-01-N-P042MM DOUBLE ROW FEMALE IDC ASSEMB |
3,060 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-12.00-01-N-P092MM DOUBLE ROW FEMALE IDC ASSEMB |
2,670 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-12.00-01-P052MM DOUBLE ROW FEMALE IDC ASSEMB |
3,170 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-12.00-01-P062MM DOUBLE ROW FEMALE IDC ASSEMB |
2,840 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-04-T-05.60-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,689 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-04-T-05.59-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,928 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCMD-05-T-07.00-01-G-RIDC SOCKET AND TERMINAL CABLE AS |
4,571 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TFSS-05-28-G-08.00-T-NUS.050" TIGER EYE SINGLE ROW DISCR |
3,072 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Socket to Plug | 5 | 1 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
04-030-156CABLE 4POS .100 JUMPER 30 INCH |
4,650 |
|
Datasheet |
156 | Bulk | Active | Plug to Cable | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | 2.50' (762.00mm) | - | Multiple, Ribbon | Unshielded | - | Solder | Gold | 10.0µin (0.25µm) |
|
C2RXG-1606GDIP CABLE - CDP16G/AE16G/X |
1,033 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
|
C4RXG-1606GDIP CABLE - CDR16G/AE16G/X |
2,217 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|

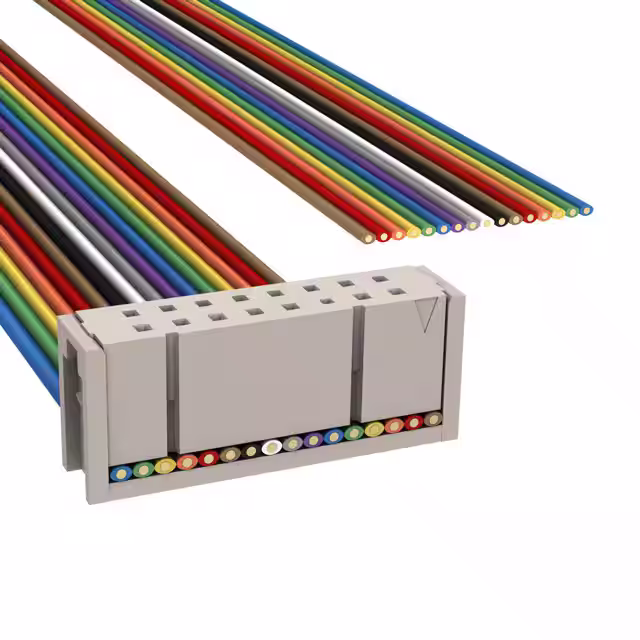

M1AXA-1636RIDC CABLE - MSC16A/MC16M/X |
2,986 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1CXA-1636RIDC CABLE - MKC16A/MC16M/X |
3,279 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

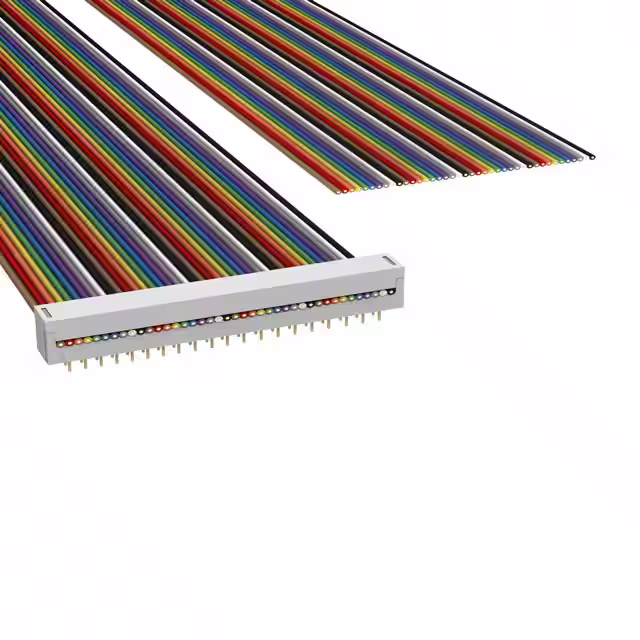

H2MXS-4036MDIP CBL - HHDM40S/AE40M/X |
2,436 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H6PPS-2436MDIP CABLE - HDP24S/AE24M/HDP24S |
1,346 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
