Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H8PPS-2436MDIP CABLE - HDP24S/AE24M/HDP24S |
2,419 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H0PPS-2436MDIP CABLE - HDP24S/AE24M/HDP24S |
3,061 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
H3AWH-4018MIDC CBL - HHSC40H/AE40M/HHPL40H |
3,049 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

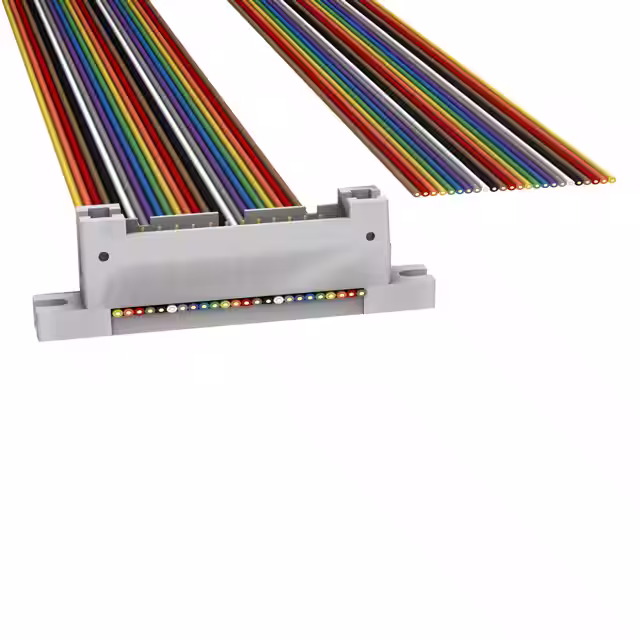

H1WXH-2436MIDC CBL - HPPL24H/AE24M/X |
1,061 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
M6MMH-1006JIDC CABLE - MDM10H/MC10G/MDM10H |
3,160 |
|
- |
- | Bulk | Obsolete | PCB to PCB | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
M8MMH-1006JIDC CABLE - MDM10H/MC10G/MDM10H |
3,618 |
|
- |
- | Bulk | Obsolete | PCB to PCB, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-D-04.33-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,610 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.361' (109.98mm, 4.33") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-13.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,197 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.08' (330.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-13.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,154 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.08' (330.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-01.89-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,179 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.158' (48.01mm, 1.89") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-15-S-07.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,433 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-17-S-05.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,628 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.458' (139.70mm, 5.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-15.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,841 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSDT-05-28-G-24.00-D-NDX.050 (1.27) SOCKET DISCRETE CABL |
3,321 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-05-22C-L-166.6-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,082 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
C2PXG-1418MDIP CABLE - CDP14G/AE14M/X |
2,448 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
|
C4PXG-1418MDIP CABLE - CDP14G/AE14M/X |
3,994 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
A3DDH-1018MIDC CABLE - AKR10H/AE10M/AKR10H |
3,629 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CWH-4018MIDC CBL - HHKC40H/AE40M/HHPL40H |
1,162 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-16.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,922 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
