Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-07-S-18.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,071 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-18-S-04.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,594 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 36 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-S-12.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,760 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-10-28C-G-26.00-S.050 SOCKET DISCRETE CABLE ASSEM |
1,019 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | 2.17' (660.40mm) | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-08-D-02.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,815 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-04-S-15.00-P08-ST2INSULATION DISPLACEMENT TERMINAL |
2,016 |
|
- |
IDSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.25' (381.00mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMD-05-D-06.00SLIM BODY DOUBLE-ROW IDC MALE AS |
4,638 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSS-10-28-G-08.00-S.050" TIGER EYE SINGLE ROW DISCR |
4,144 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 10 | 1 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

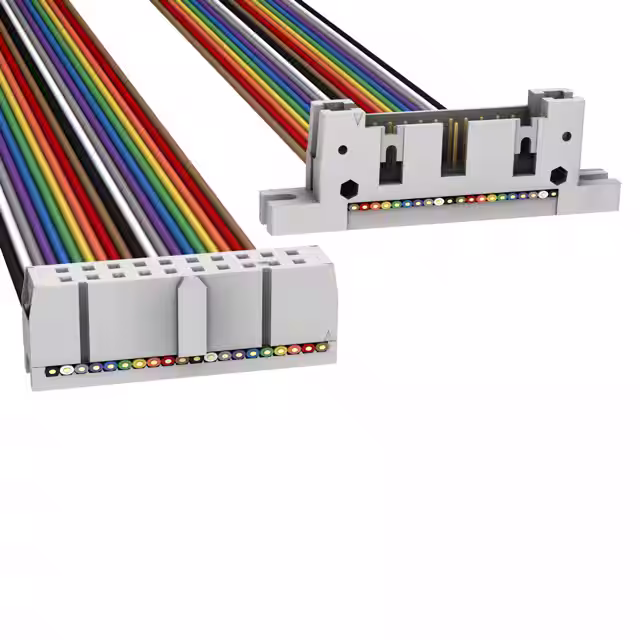

H3CWH-2036MIDC CBL - HHKC20H/AE20M/HHPL20H |
1,805 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

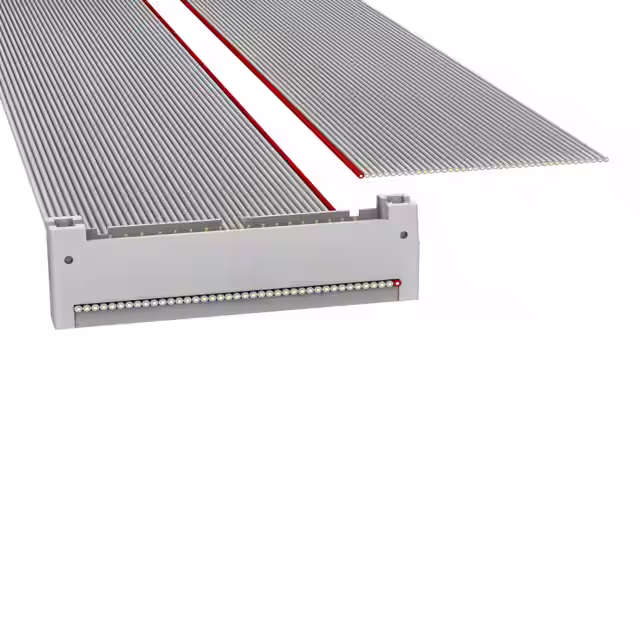

H1KXH-4036GIDC CBL - HHPK40H/AE40G/X |
3,592 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C1AXS-1036MIDC CABLE - CSC10S/AE10M/X |
3,546 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C1CXS-1036MIDC CABLE - CKC10S/AE10M/X |
1,957 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-05-D-04.25-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,145 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.354' (107.95mm, 4.25") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-T-02.50-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,853 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-12-S-10.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,834 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-12-S-10.00-01-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,611 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
PMSS-04-24-K-40.00-D-LUS.165" POWER MATE SINGLE ROW DISC |
4,553 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Socket | 4 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
TFSS-08-28-F-06.00-T-NUS.050" TIGER EYE SINGLE ROW DISCR |
1,931 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Socket to Plug | 8 | 1 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-05-24C-L-36.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
3,000 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
H1KXH-2636MIDC CBL - HHPK26H/AE26M/X |
4,204 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
