Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

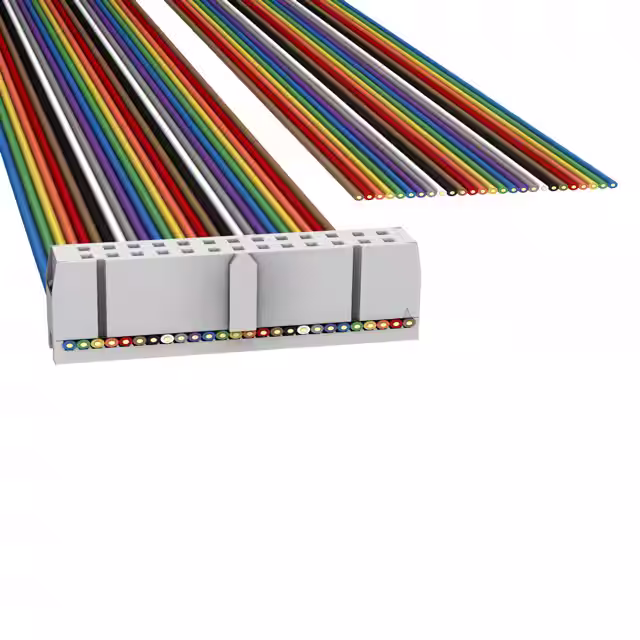

H1CXS-2636MIDC CBL - HHKC26S/AE26M/X |
3,530 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
TCSD-04-S-02.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,177 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-S-02.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,296 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-03.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,951 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.292' (88.90mm, 3.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-03.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,867 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.292' (88.90mm, 3.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-06.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,483 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-06.00-01-F-N-P072MM DOUBLE ROW FEMALE IDC ASSEMB |
4,815 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-06.00-01-F-P072MM DOUBLE ROW FEMALE IDC ASSEMB |
1,626 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

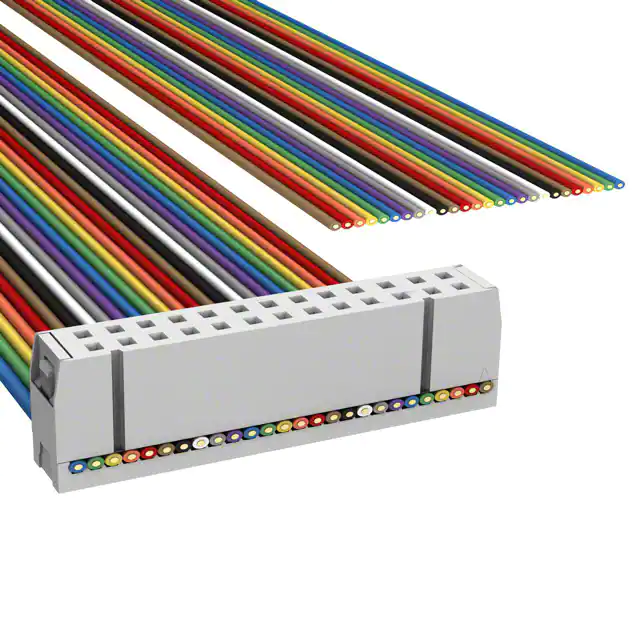

H1AXH-2636MIDC CBL - HHSC26H/AE26M/X |
4,684 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

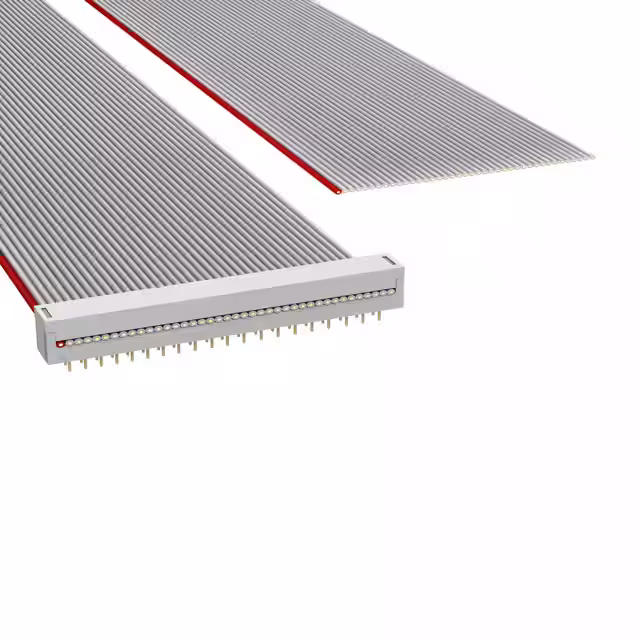

H2MXH-4036GDIP CABLE - HDM40H/AE40G/X |
1,543 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-05-S-08.50-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,664 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3DKH-1006NIDC CBL - LKR10H/CN217GR/LPK10H |
1,692 |
|
- |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TFSS-04-28-H-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,467 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSS-03-28-G-24.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,262 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 3 | 1 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-02-30-G-04.00-D-NUS.050" TIGER EYE SINGLE ROW DISCR |
4,908 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Plug | 2 | 1 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
1360462INTERCONNECT MISC |
3,755 |
|
- |
CHARX | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | - | - | 1.31' (400.00mm) | - | Multiple, Individual | Unshielded | - | Crimp | - | - |
|
|
10152888-Z0030YYLFMTK 30 CABLE ASSEMBLY |
3,051 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2163311081EDGE LOCK R-S 8CKT 100MM SN |
1,294 |
|
Datasheet |
Edgelock 216331 | Bag | Active | Socket to Individual Wire Leads | 8 | 1 | 0.079" (2.00mm) | - | 0.328' (100.00mm, 3.94") | - | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 39.4µin (1.00µm) |
|
H1BXS-2636MIDC CBL - HHSR26S/AE26G/X |
2,989 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H6PPS-1636MDIP CABLE - HDP16S/AE16M/HDP16S |
4,795 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
