Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3BWH-1636GIDC CBL - HHSR16H/AE16G/HHPL16H |
2,032 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CWH-2618GIDC CBL - HHKC26H/AE26G/HHPL26H |
3,675 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
T1SD-03-28-GF-03.0-T31.00 MM MICRO MATE DOUBLE ROW DI |
3,280 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 6 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T1SD-07-28-GF-03.01.00 MM MICRO MATE DOUBLE ROW DI |
4,376 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 14 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSST-02-20-L-24.00-S-KMINI-MATE CABLE ASSEMBLY, FEP |
3,041 |
|
Datasheet |
Mini Mate® MMSST | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-07-28-G-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,078 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 7 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

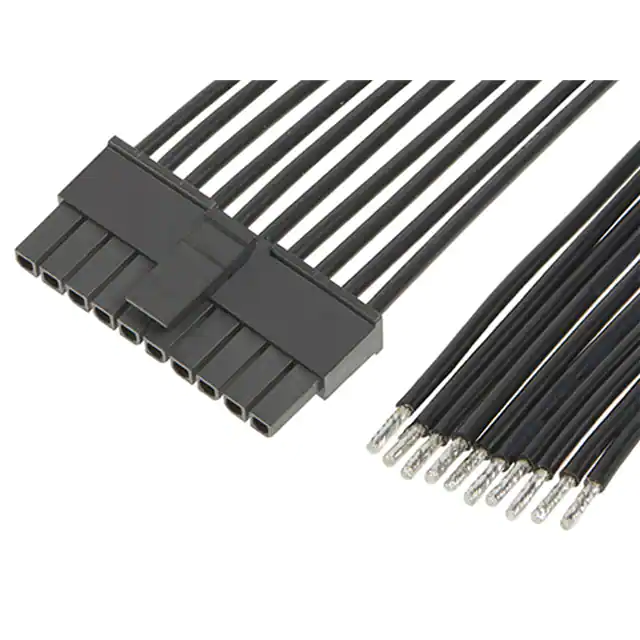

2147512102MICROFIT 3.0 SR R-S 10CKT 300 MM |
3,266 |
|
Datasheet |
Micro-Fit 3.0 214751 | Bulk | Active | Socket to Individual Wire Leads | 10 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2147532102MICROFIT 3.0 SR P-S 10CKT 300 MM |
4,099 |
|
Datasheet |
Micro-Fit 3.0 214753 | Bulk | Active | Plug to Individual Wire Leads | 10 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
10152011-K0028YYLFMTK CAS |
1,694 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A3AAA-1606MIDC CABLE- ASN16A/ AE16M / ASN16 |
3,175 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBA-1606MIDC CABLE- ASS16A/ AE16M / ASS16 |
1,794 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A2MXT-2436GADM24T/AE24G/X |
2,445 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H3AKH-2618GIDC CBL - HHSC26H/AE26G/HHPK26H |
1,842 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H6MMS-5018GDIP CBL - HHDM50S/AE50G/HHDM50S |
4,876 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to DIP | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H8MMS-5018GDIP CBL - HHDM40S/AE50G/HHDM50S |
1,854 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to DIP, Reversed | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H3DKH-1636GIDC CBL - HHKR16H/AE16G/HHPK16H |
1,643 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3AWH-2618GIDC CBL - HHSC26H/AE26G/HHPL26H |
1,655 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-4006GIDC CBL - HHSR40H/AE40G/HHPL40H |
2,344 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-1636GIDC CBL - HHKR16H/AE16G/HHPL16H |
1,756 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCMD-13-S-02.00-01CABLE ASSEM 2MM 26POS SGL END 2" |
4,750 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
