Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-05-S-08.66-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,484 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-13-S-02.00-01-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
4,168 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MRTD-06-26-F-03.0.100" MINI MATE DOUBLE ROW PANEL |
3,388 |
|
Datasheet |
Mini Mate® MRTD | Bulk | Active | Plug to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock | Black, Individual | Shielded | - | Crimp | Gold | Flash |
|
|
MRTD-02-22-L-03.3-L1.100" MINI MATE DOUBLE ROW PANEL |
3,439 |
|
Datasheet |
Mini Mate® MRTD | Bulk | Active | Plug to Plug | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock | Black, Individual | Shielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
7100259964MOLDED ASSEMBLY 1M SERIES 1M 16 |
2,028 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A3BBG-1606GIDC CABLE - ASR16G/AE16G/ASR16G |
2,827 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H6MMS-4018MDIP CBL - HHDM40S/AE40M/HHDM40S |
3,051 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H8MMS-4018MDIP CBL - HHDM40S/AE40M/HHDM40S |
1,772 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H3DWH-4006GIDC CBL - HHKR40H/AE40G/HHPL40H |
2,710 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCMD-08-S-06.30-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,236 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-04-S-10.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,048 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-S-06.30-01-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
4,531 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-09-S-06.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,513 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSS-07-28-G-03.15-S.050" TIGER EYE SINGLE ROW DISCR |
3,973 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 7 | 1 | 0.050" (1.27mm) | - | 0.262' (80.00mm, 3.15") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-05-28C-G-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,327 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
21715906006 CKT OVERMOLD 180MM F-P |
1,715 |
|
Datasheet |
Mini-Fit Jr 217159 | Bulk | Active | Socket to Cable | 6 | 1 | 0.165" (4.19mm) | - | 0.591' (180.00mm, 7.09") | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|

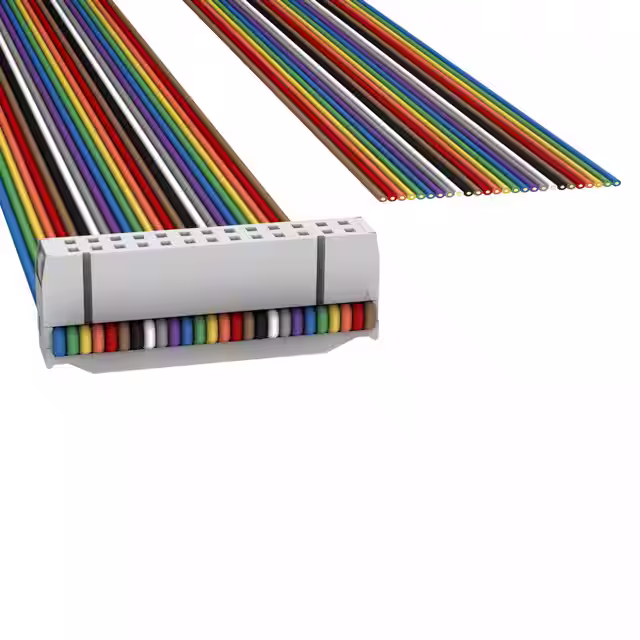

H1BXH-2636MIDC CBL - HHSR26H/AE26M/X |
3,597 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-07.25-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,838 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.604' (184.15mm, 7.25") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-S-06.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,401 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-S-06.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,490 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
