Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3BBS-1436MIDC CBL - HHSR14S/AE14M/HHSR14S |
3,093 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H1WXH-1036MIDC CBL - HHPL10H/AE10M/X |
2,856 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-1036JIDC CABLE - MDM10H/MC10G/X |
3,999 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
H3BBS-1418MIDC CBL - HHSR14S/AE14M/HHSR14S |
2,428 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCSD-04-S-08.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,146 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SS-04-28-GF-24.00-L1MICRO MATE SINGLE ROW DISCRETE W |
3,446 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 4 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-04-S-08.00-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,792 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SS-06-28-GF-18.00-LMICRO MATE SINGLE ROW DISCRETE W |
2,624 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 6 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
2162901041STANDARD .093 4 CIRCUIT R TO R 1 |
4,022 |
|
Datasheet |
Standard .093" 216290 | Bag | Active | Socket to Socket | 4 | 1 | 0.264" (6.70mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 20.0µin (0.51µm) |
|
|
A3DDG-1006MIDC CABLE- AKR10G/ AE20M / AKR10 |
3,741 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H1AXS-2636MIDC CBL - HHSC26S/AE26M/X |
1,837 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCMD-12-S-02.20-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,962 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-05-24C-S-04.72-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
2,300 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
MMSST-06-20-S-06.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, FEP |
3,614 |
|
Datasheet |
Mini Mate® MMSST | Bulk | Active | Socket to Socket | 6 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2153281082MINIFIT JR DR P-S 8 CIRCUIT 300M |
2,172 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Plug to Cable | 8 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
|
A3DDG-1018GIDC CABLE-AKR10G/ AE10G / AKR10G |
3,018 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

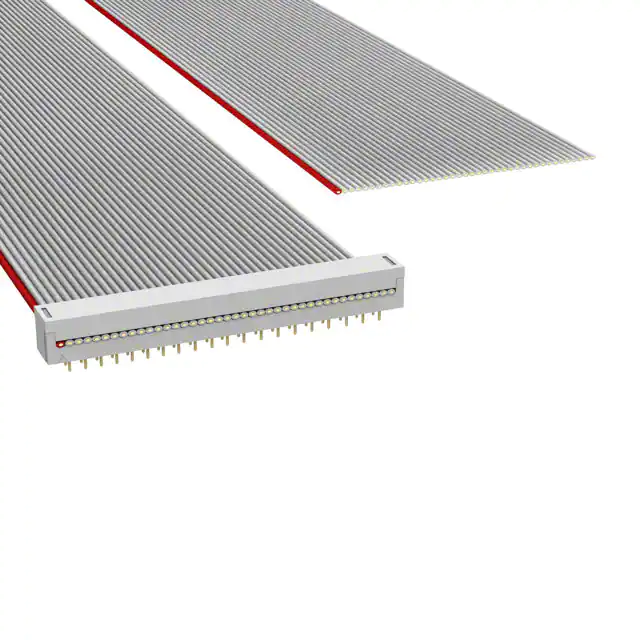

H2MXS-4036GDIP CBL - HHDM40S/AE40G/X |
3,576 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H3AWH-4006GIDC CBL - HHSC40H/AE40G/HHPL40H |
3,824 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
IDSD-04-S-04.00-G-ST4INSULATION DISPLACEMENT TERMINAL |
3,392 |
|
- |
IDSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-03-22C-L-158.7-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,489 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
