Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-08-S-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,506 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-02-28-GF-70.00-LMICRO MATE SINGLE ROW DISCRETE W |
4,682 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SFSD-03-28-G-05.25-D-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
3,895 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 6 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
PMSS-05-16-K-06.00-S.165" POWER MATE SINGLE ROW DISC |
4,430 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
TCSD-06-S-04.40-01-F-N-P03IDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,463 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.367' (111.76mm, 4.40") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
A2MXT-3406GADM34T/AE34G/X |
1,028 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H3BKH-1618MIDC CBL - HHSR16H/AE16M/HHPK16H |
3,750 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-1618MIDC CBL - HHSR16H/AE16M/HHPL16H |
2,669 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3CCS-2036GIDC CABLE - CKC20S/AE20G/CKC20S |
1,092 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-10-S-02.50-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,456 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
A22KRW22KRW26E305DJUMPER ASSEMBLY SKT-SKT 22POS 12 |
2,004 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 1.00' (304.80mm) | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
A22KRW22KRW26E305CJUMPER ASSEMBLY SKT-SKT 22POS 12 |
3,654 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 1.00' (304.80mm) | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|

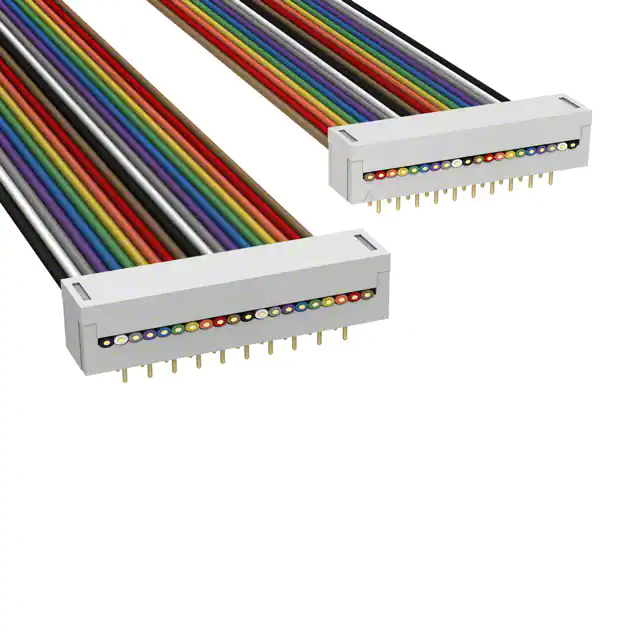

H6MMS-2036MDIP CBL - HHDM20S/AE20M/HHDM20S |
3,256 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H6MMH-2418MDIP CABLE - HDM24H/AE24M/HDM24H |
4,317 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMS-2036MDIP CBL - HHDM20S/AE20M/HHDM20S |
2,821 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H8MMH-2418MDIP CABLE - HDM24H/AE24M/HDM24H |
4,151 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3DKH-1618MIDC CBL - HHKR16H/AE16M/HHPK16H |
3,296 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-1618MIDC CBL - HHKR16H/AE16M/HHPL16H |
3,027 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-2006RIDC CABLE - MDM20H/MC20M/X |
4,245 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-08-S-03.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,147 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.292' (88.90mm, 3.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
