Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-04-S-01.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,002 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.083' (25.40mm, 1.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
S1SS-07-30-GF-13.00-LMICRO MATE SINGLE ROW DISCRETE W |
3,566 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 7 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
PMSS-03-22-K-12.00-D-LUS.165" POWER MATE SINGLE ROW DISC |
2,826 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Socket | 3 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
T1SST-10-28-GF-06.01.00 MM MICRO MATE SINGLE ROW DI |
2,434 |
|
Datasheet |
Micro Mate™ T1SST | Bulk | Active | Socket to Plug | 10 | 1 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-04-S-01.00-01-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,691 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.083' (25.40mm, 1.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TFSS-04-28-G-12.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,155 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
1M 36 A1-006-HF365-003.6-00-CD-10-0MOLDED ASSEMBLY 1M SERIES 1M 36 |
4,701 |
|
- |
1M | Bulk | Active | Socket to PCB | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.300' (91.44mm, 3.60") | - | Gray, Ribbon | Unshielded | - | IDC | - | - |
|

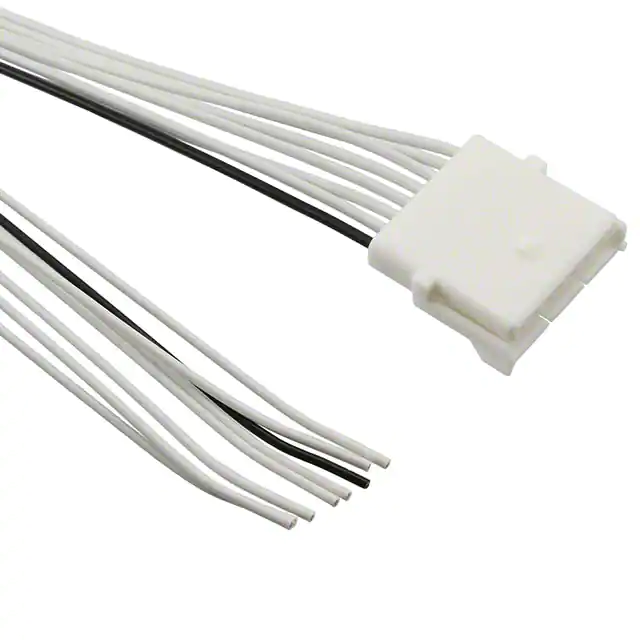

1502070007DITTO SG/END HARNESS 8 CKT .30M |
3,042 |
|
Datasheet |
Ditto 172578 | Bag | Obsolete | Self Mating, Non-Gendered, Hermaphroditic to Individual Wire Leads | 8 | 1 | 0.098" (2.50mm) | - | 0.984' (300.00mm, 11.81") | - | Black, White, Individual | - | - | Crimp | Tin | - |
|
H3AKH-4006GIDC CBL - HHSC40H/AE40G/HHPK40H |
4,105 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-06.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,401 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-06.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,691 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SS-07-28-GF-07.00-D-NDSMICRO MATE SINGLE ROW DISCRETE W |
1,254 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 7 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T1PDT-04-28-GF-04.9-A1.00 MM MICRO MATE DOUBLE ROW PA |
1,195 |
|
Datasheet |
Micro Mate™ T1PDT | Bulk | Active | Socket to Plug | 8 | 2 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSS-05-30-G-07.50-S.050" TIGER EYE SINGLE ROW DISCR |
1,216 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 0.625' (190.50mm, 7.50") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-06-S-07.00-012.00 MM IDC RIBBON CABLE ASSEMBL |
1,494 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
7100025701MOLDED ASSEMBLY 1M SERIES 16-012 |
2,821 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A3AAG-2006GIDC CABLE-ASC20G/ AE20G / ASC20G |
4,624 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H1BXH-4036GIDC CBL - HHSR40H/AE40G/X |
1,660 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
SFSDT-04-28-H-06.00-SRDOUBLE ROW DISCRETE FEP WIRE |
1,426 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
IDMS-05-T-08.00-G-RW-RSLIM BODY SINGLE-ROW IDC MALE AS |
1,151 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug, Reversed | 5 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
