Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q15796846DCUSTOM ASSEMBLY SEE CNO |
3,516 |
|
- |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 2.75' (838.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
T1SS-03-28-GF-16.00-T11.00 MM MICRO MATE SINGLE ROW DI |
4,349 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 3 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCMD-20-01-RF2.00 MM IDC RIBBON CABLE ASSEMBL |
2,199 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | - | - | - | - | - | - | - | Gray, Ribbon | - | - | IDC | Gold | - |
|
|
MMSD-03-22C-L-139.0-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,946 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

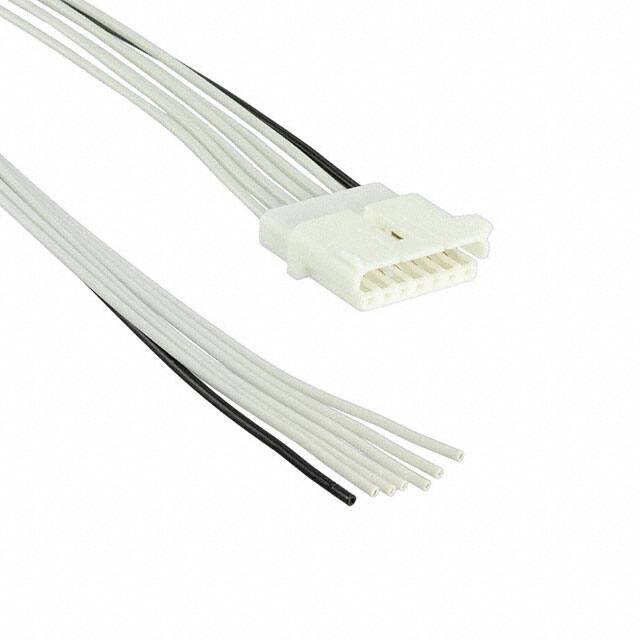

1502070006DITTO SG/END HARNESS 7 CKT .30M |
1,133 |
|
Datasheet |
Ditto 172578 | Bag | Obsolete | Self Mating, Non-Gendered, Hermaphroditic to Individual Wire Leads | 7 | 1 | 0.098" (2.50mm) | - | 0.984' (300.00mm, 11.81") | - | Black, White, Individual | - | - | Crimp | Tin | - |
|
|
A3DDG-1006GIDC CABLE-AKR10G/ AE10G / AKR10G |
1,826 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DDH-3436GIDC CBL - HHKR34H/AE34G/HHKR34H |
4,735 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CKH-1406GIDC CBL - HHKC14H/AE14G/HHPK14H |
1,197 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-05-30-G-12.00-SL.050 SOCKET DISCRETE CABLE ASSEM |
2,780 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | Friction Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-03-28C-GF-24.00-D-NUSMICRO MATE SINGLE ROW DISCRETE W |
1,311 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 3 | 1 | 0.039" (1.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-06-24-L-36.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,217 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
2147521062MICROFIT 3.0 SR P-P 6CKT 300 MM |
3,638 |
|
Datasheet |
Micro-Fit 3.0 214752 | Bulk | Active | Plug to Plug | 6 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
A2MXT-2606MADM26T/AE26M/X |
1,149 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H3AKH-1618MIDC CBL - HHSC16H/AE16M/HHPK16H |
1,095 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CKH-2018GIDC CBL - HHKC20H/AE20G/HHPK20H |
1,027 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3AWH-1618MIDC CBL - HHSC16H/AE16M/HHPL16H |
4,852 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-1018RIDC CABLE - MDM10H/MC10M/X |
4,180 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-08-S-03.15-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,343 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.263' (80.01mm, 3.15") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-02-S-06.00-01-P022MM DOUBLE ROW FEMALE IDC ASSEMB |
1,176 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
IDSD-05-D-04.50-T-G-RINSULATION DISPLACEMENT TERMINAL |
4,853 |
|
- |
IDSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.375' (114.30mm, 4.50") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
