Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDSD-03-D-02.00-G-RWSLIM BODY DOUBLE-ROW IDC SOCKET |
1,471 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
T1PD-05-28-GF-06.0-A1.00 MM MICRO MATE DOUBLE ROW PA |
1,485 |
|
Datasheet |
Micro Mate™ T1PD | Bulk | Active | Socket to Plug | 10 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
2147522053MICROFIT 3.0 SR P-P 5CKT 600 MM |
2,012 |
|
Datasheet |
Micro-Fit 3.0 214752 | Bulk | Active | Plug to Plug | 5 | 1 | 0.118" (3.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

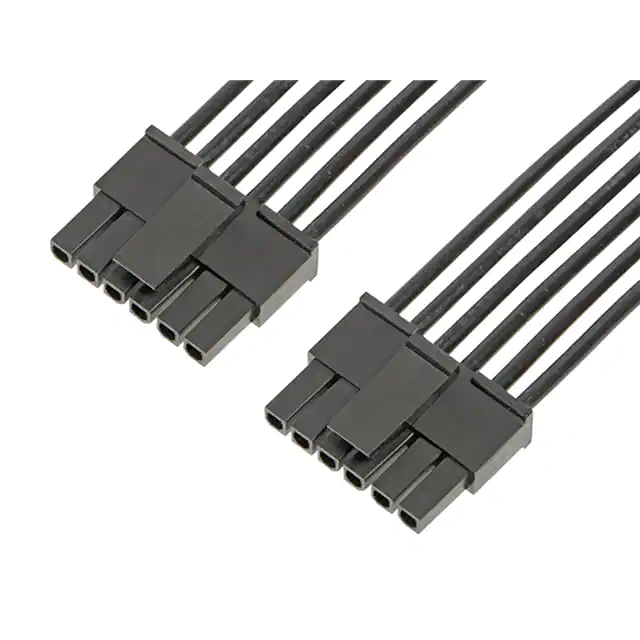

2147501063MICROFIT 3.0 SR R-R 6CKT 600 MM |
4,605 |
|
Datasheet |
Micro-Fit 3.0 214750 | Bulk | Active | Socket to Socket | 6 | 1 | 0.118" (3.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
A3BBA-1418GIDC CABLE-ASS14A/ AE14G / ASS14A |
3,992 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3AAA-1418GIDC CABLE-ASN14A/ AE14G / ASN14A |
1,143 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H2MXS-3436GDIP CBL - HHDM34S/AE34G/X |
4,740 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|

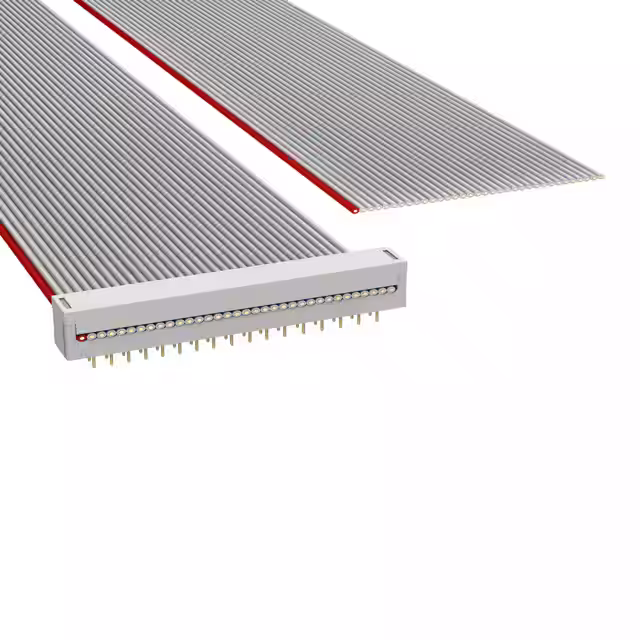

H2MXH-3436GDIP CABLE - HDM34H/AE34G/X |
3,270 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3BKH-1406GIDC CBL - HHSR14H/AE14G/HHPK14H |
1,131 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-1406GIDC CBL - HHKR14H/AE14G/HHPK14H |
2,846 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-03-S-03.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,839 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-10-S-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,657 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A3BBA-1406MIDC CABLE- ASS14A/ AE14M / ASS14 |
3,768 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3AAA-1406MIDC CABLE- ASN14A/ AE14M / ASN14 |
2,871 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

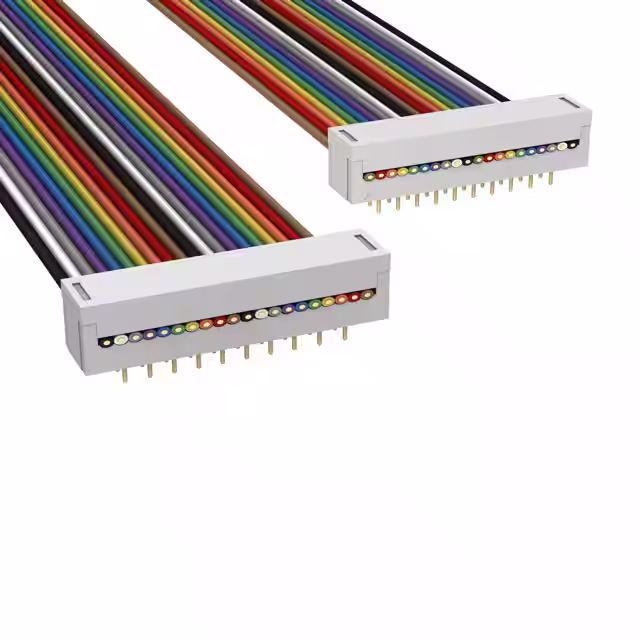

H6MMH-2036MDIP CABLE - HDM20H/AE20M/HDM20H |
2,051 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-2036MDIP CABLE - HDM20H/AE20M/HDM20H |
4,641 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3CWH-2006MIDC CBL - HHKC20H/AE20M/HHPL20H |
4,051 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3DDH-4018MIDC CBL - HHKR40H/AE40M/HHKR40H |
1,336 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-05.90-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,524 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.492' (149.86mm, 5.90") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-03-S-10.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,616 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
