Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3BWH-2606GIDC CBL - HHSR26H/AE26G/HHPL26H |
2,719 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCSD-05-S-02.50-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,224 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-04-28C-G-06.00-SR.050 SOCKET DISCRETE CABLE ASSEM |
4,962 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-08-S-02.40-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,137 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3CCH-1418NIDC CBL - LKC14H/CN218GR/LKC14H |
4,803 |
|
- |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
MMSD-02-20-L-05.00-D-K-LUXMINI-MATE CABLE ASSEMBLY, 0.100" |
2,602 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
2262031084ONEBLADE R-R 8CKT 600MM DISC SN |
1,600 |
|
- |
OneBlade 226203 | Bulk | Active | Socket to Socket | 8 | 1 | 0.039" (1.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 39.4µin (1.00µm) |
|
|
2262061063MICRO-FIT3.0 R-R 6CKT 300MM DISC |
3,197 |
|
- |
Micro-Fit 3.0 226206 | Bulk | Active | Socket to Socket | 6 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
2262071084MINI-SPOX R-R 8CKT 600MM DISC SN |
2,186 |
|
- |
Mini-Spox 226207 | Bulk | Active | Socket to Socket | 8 | 1 | 0.098" (2.50mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|

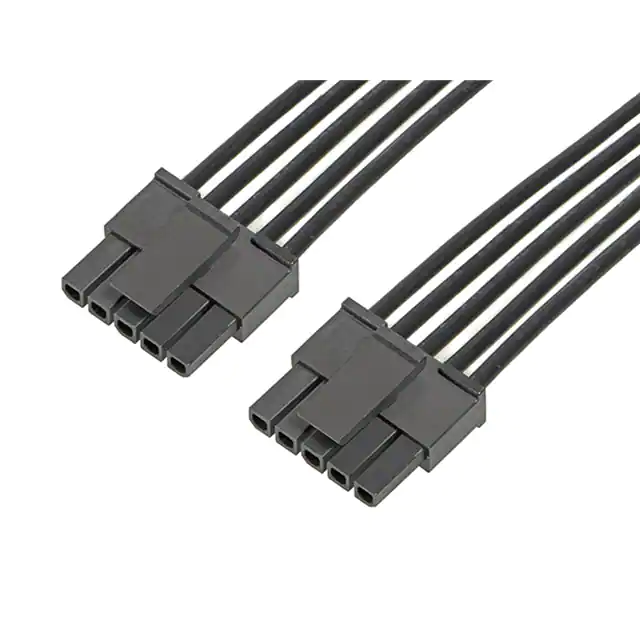

2147501053MICROFIT 3.0 SR R-R 5CKT 600 MM |
4,341 |
|
Datasheet |
Micro-Fit 3.0 214750 | Bulk | Active | Socket to Socket | 5 | 1 | 0.118" (3.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
10142794-R0030YYLFCTW CABLE ASSY |
2,145 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A3AAG-1606GIDC CABLE - ASC16G/AE16G/ASC16G |
4,703 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A6MMT-1006MADM10T/AE10M/ADM10T |
4,081 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A8MMT-1006MADM10T/AE10M/ADM10T |
1,294 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H3DKH-1618GIDC CBL - HHKR16H/AE16G/HHPK16H |
1,231 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-1618GIDC CBL - HHKR16H/AE16G/HHPL16H |
1,270 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCMD-03-S-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,660 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1PST-04-28-GF-02.0-A-T3CBL 1MM 4POS PNL MNT M TO F |
3,489 |
|
- |
Power Mate® T1PST | Bulk | Active | Socket to Plug | 4 | 1 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SFSST-10-30-G-03.25-SRSINGLE ROW DISCRETE FEP WIRE |
3,466 |
|
Datasheet |
Tiger Eye™ SFSST | Bulk | Active | Socket to Individual Wire Leads | 10 | 1 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCSS-05-S-05.00-01IDC SOCKET AND TERMINAL CABLE AS |
1,861 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 5 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
