Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7000098824MOLDED ASSEMBLY 1M SERIES 1M16A0 |
1,385 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

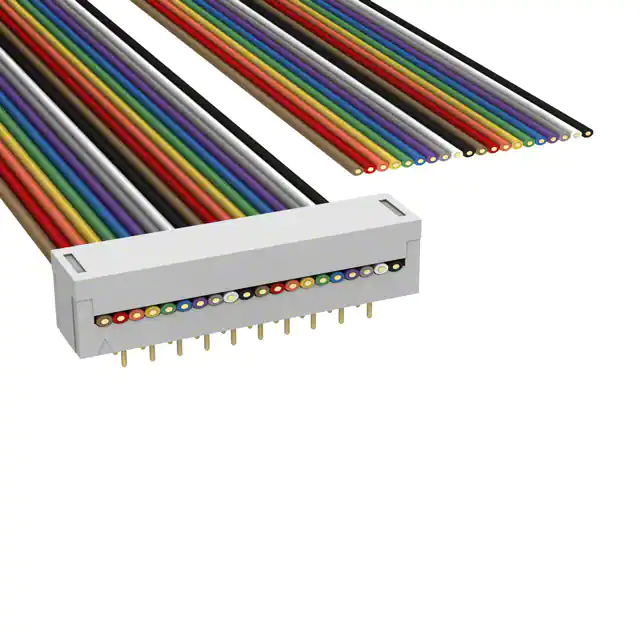

H2MXS-2036MDIP CBL - HHDM20S/AE20M/X |
2,031 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H6MMS-3418GDIP CBL - HHDM34S/AE34G/HHDM34S |
1,002 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H6MMH-3418GDIP CABLE - HDM34H/AE34G/HDM34H |
1,919 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMS-3418GDIP CBL - HHDM34S/AE34G/HHDM34S |
1,587 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H8MMH-3418GDIP CABLE - HDM34H/AE34G/HDM34H |
1,181 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
SMSS-03-26-F-10.00-D-KDS.100" MINI MATE UNIVERSAL SINGLE |
4,144 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 3 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SFSS-07-28-G-24.00-SRSINGLE ROW DISCRETE WIRE ASSEMBL |
4,176 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Individual Wire Leads | 7 | 1 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCMD-02-S-02.00-01IDC SOCKET AND TERMINAL CABLE AS |
3,449 |
|
Datasheet |
HCM | Bulk | Active | Plug to Cable | 4 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.167' (50.80mm, 2.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
A22KRW22KRW26E203CJUMPER ASSEMBLY SKT-SKT 22POS 8" |
3,717 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 0.667' (203.20mm, 8.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
A22KRW22KRW26E203DJUMPER ASSEMBLY SKT-SKT 22POS 8" |
3,238 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 0.667' (203.20mm, 8.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
2147572081MICRO-FIT3.0 P-P 8 CIRCUIT 150MM |
4,042 |
|
Datasheet |
Micro-Fit 3.0 214757 | Bag | Active | Plug to Plug | 8 | 2 | 0.118" (3.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
S1SS-09-28-GF-03.14-L1MICRO MATE SINGLE ROW DISCRETE W |
1,494 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 9 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-09-28-GF-03.14-L3MICRO MATE SINGLE ROW DISCRETE W |
2,346 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 9 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
H1BXS-1436MIDC CBL - HHSR14S/AE14M/X |
2,249 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H2MXS-3018MDIP CBL - HHDM30S/AE30M/X |
3,206 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H2MXH-3018MDIP CABLE - HDM30H/AE30M/X |
4,284 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H2MXH-5018GDIP CABLE - HDM50H/AE50G/X |
2,802 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3DKH-2606GIDC CBL - HHKR26H/AE26G/HHPK26H |
4,160 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-2606GIDC CBL - HHKR26H/AE26G/HHPL26H |
3,395 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
