Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMSDT-02-20-F-24.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, FEP |
2,144 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
PMSS-02-16-K-06.00-D-LUS.165" POWER MATE SINGLE ROW DISC |
2,589 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Socket | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
2264291044MICRO-FIT3.0 R-S 4CKT 600MM DISC |
1,515 |
|
- |
Micro-Fit 3.0 226429 | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.118" (3.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
920-0120-01QTY. 2 FEMALE 2 X 7 IDC SOCKETS |
2,809 |
|
- |
- | Bag | Active | Socket to Socket | 14 | 2 | - | - | 1.00' (304.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | - | - | IDC | - | - |
|
|
920-0121-01QTY. 2 FEMALE 2 X 13 IDC SOCKETS |
4,502 |
|
- |
- | Bag | Active | Socket to Socket | 26 | 2 | - | - | 1.00' (304.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | - | - | IDC | - | - |
|
|
IDSS-04-S-12.00-T-ST4INSULATION DISPLACEMENT SOCKET C |
1,080 |
|
- |
IDSS | Bulk | Active | Socket to Cable | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
T1SD-02-28-GF-02.0-T3CBL ASSY 1MM 4POS M TO F |
2,897 |
|
- |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 4 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
PMSD-02-206-K-08.20-S.165" POWER MATE DOUBLE ROW DISC |
2,246 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
MMSST-05-24-F-72.00-S-KMINI-MATE CABLE ASSEMBLY, FEP |
1,538 |
|
Datasheet |
Mini Mate® MMSST | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
T1SDT-05-28-GF-07.01.00 MM MICRO MATE DOUBLE ROW TE |
3,952 |
|
Datasheet |
Micro Mate™ T1SDT | Bulk | Active | Socket to Plug | 10 | 2 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|

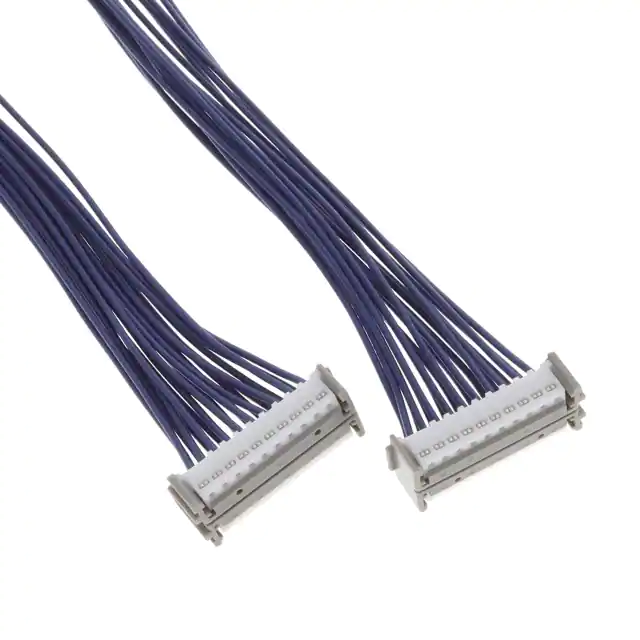

A20KRW20KRW26E305DJUMPER ASSEMBLY SKT-SKT 20POS 12 |
2,147 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | - | 1.00' (304.80mm) | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
A20KRW20KRW26E305CJUMPER ASSEMBLY SKT-SKT 20POS 12 |
1,879 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | - | 1.00' (304.80mm) | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
1502070013DITTO SG/END HARNESS 7 CKT .15M |
1,955 |
|
Datasheet |
Ditto 172578 | Bag | Obsolete | Self Mating, Non-Gendered, Hermaphroditic to Individual Wire Leads | 7 | 1 | 0.098" (2.50mm) | - | 0.492' (150.00mm, 5.91") | - | Black, White, Individual | - | - | Crimp | Tin | - |
|
0151360703MICROCLASP 7 CIRCUIT 300MM |
3,139 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 7 | 1 | 0.079" (2.00mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | - | Tin | 35.4µin (0.90µm) |
|
H2MXS-4018MDIP CBL - HHDM40S/AE40M/X |
4,829 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
M2MXH-1018JIDC CABLE - MDM10H/MC10G/X |
1,731 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
H3CCH-3018MIDC CBL - HHKC30H/AE30M/HHKC30H |
1,168 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
D89116-0131HK-3365/16-S-3SINGLE ENDED CABLE ASSEMBLY 16 P |
3,649 |
|
Datasheet |
D89 | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
D89116-0031HK-3365/16-S-3SINGLE ENDED CABLE ASSEMBLY 16 P |
1,738 |
|
Datasheet |
D89 | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCMD-05-S-05.12-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,746 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
