Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1SS-04-28-GF-03.0-T11.00 MM MICRO MATE SINGLE ROW DI |
2,068 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 4 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
0151360800MICROCLASP 8 CIRCUIT 50MM |
2,002 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 8 | 1 | 0.079" (2.00mm) | - | 0.164' (50.00mm, 1.97") | Latch Lock | Black, Individual | Unshielded | - | - | Tin | 35.4µin (0.90µm) |
|
|
0151360801MICROCLASP 8 CIRCUIT 100MM |
2,805 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 8 | 1 | 0.079" (2.00mm) | - | 0.328' (100.00mm, 3.94") | Latch Lock | Black, Individual | Unshielded | - | - | Tin | 35.4µin (0.90µm) |
|
|
0151360802MICROCLASP 8 CIRCUIT 150MM |
3,022 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 8 | 1 | 0.079" (2.00mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock | Black, Individual | Unshielded | - | - | Tin | 35.4µin (0.90µm) |
|
|
0151370903MINI-LOCK 9 CIRCUIT 300MM |
1,694 |
|
Datasheet |
Mini-Lock 15137 | Bulk | Active | Socket to Socket | 9 | 1 | 0.098" (2.50mm) | - | 0.984' (300.00mm, 11.81") | Friction Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
|

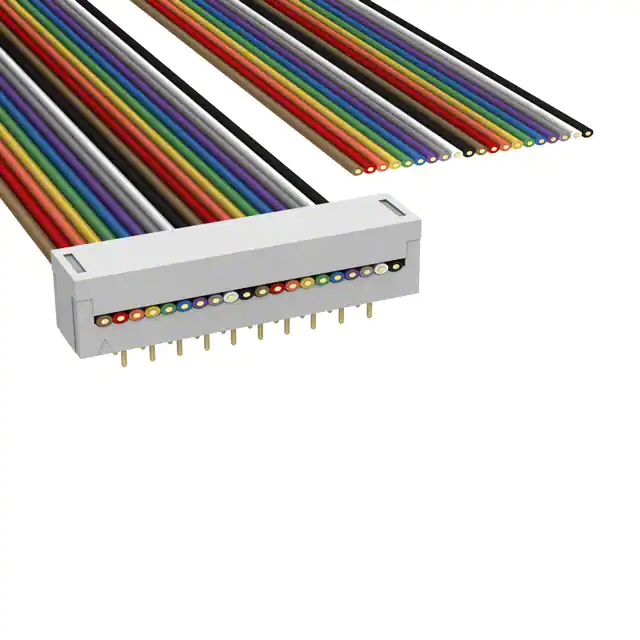

H2MXH-2036MDIP CABLE - HDM20H/AE20M/X |
2,404 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H2MXS-3418MDIP CBL - HHDM34S/AE34M/X |
1,938 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H2MXH-3418MDIP CABLE - HDM34H/AE34M/X |
1,478 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3BWH-1018GIDC CBL - HHSR10H/AE10G/HHPL10H |
4,576 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-1018GIDC CBL - HHKR10H/AE10G/HHPL10H |
1,445 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3AAH-3018MIDC CBL - HHSC30H/AE30M/HHSC30H |
4,501 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
158210-0120-3625/10-S-6SINGLE ENDED CABLE ASSEMBLY 10 P |
1,168 |
|
Datasheet |
158 | Bulk | Obsolete | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-S-02.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,340 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-S-02.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,194 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
MMSDT-03-24-L-07.25-D-K-LDXMINI-MATE CABLE ASSEMBLY, FEP |
1,952 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
PMSS-02-24-K-71.00-S.165" POWER MATE SINGLE ROW DISC |
4,177 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
MMSDT-03-30-L-11.80-D-K-LDXMINI-MATE CABLE ASSEMBLY, FEP |
2,031 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-04-28-G-06.00-S.050" TIGER EYE SINGLE ROW DISCR |
4,626 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
2147532082MICROFIT 3.0 SR P-S 8CKT 300 MM |
4,035 |
|
Datasheet |
Micro-Fit 3.0 214753 | Bulk | Active | Plug to Individual Wire Leads | 8 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2147522062MICROFIT 3.0 SR P-P 6CKT 300 MM |
1,298 |
|
Datasheet |
Micro-Fit 3.0 214752 | Bulk | Active | Plug to Plug | 6 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
