Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFSD-05-28-F-03.26-D-NDS.050 SOCKET DISCRETE CABLE ASSEM |
2,640 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | 0.272' (82.80mm, 3.26") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
MMSD-02-24C-L-30.50-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
3,691 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMS-07-S-02.00SLIM BODY SINGLE-ROW IDC MALE AS |
1,537 |
|
Datasheet |
IDMS | Bulk | Active | Plug to Cable | 7 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSST-02-28-H-08.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,610 |
|
Datasheet |
Tiger Eye™ TFSST | Bulk | Active | Plug to Individual Wire Leads | 2 | 1 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
7000098825MOLDED ASSEMBLY INTL 3M SWITZERL |
4,441 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A2MXT-2418GADM24T/AE24G/X |
2,377 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|

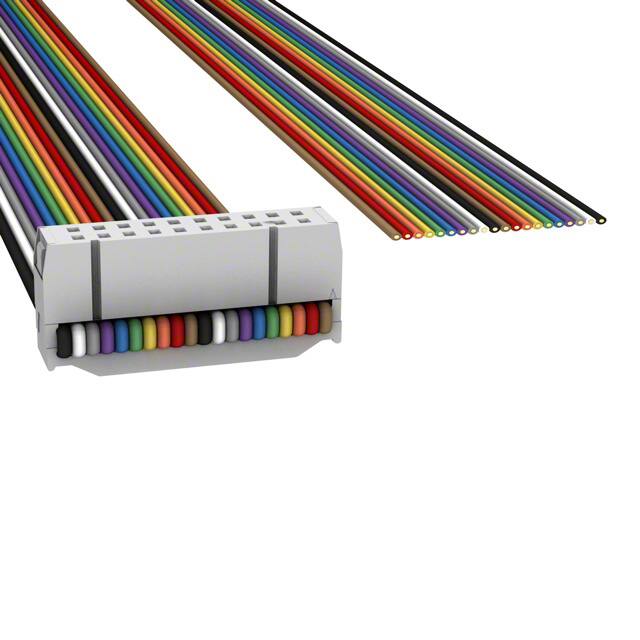

H1BXH-2036MIDC CBL - HHSR20H/AE20M/X |
1,561 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

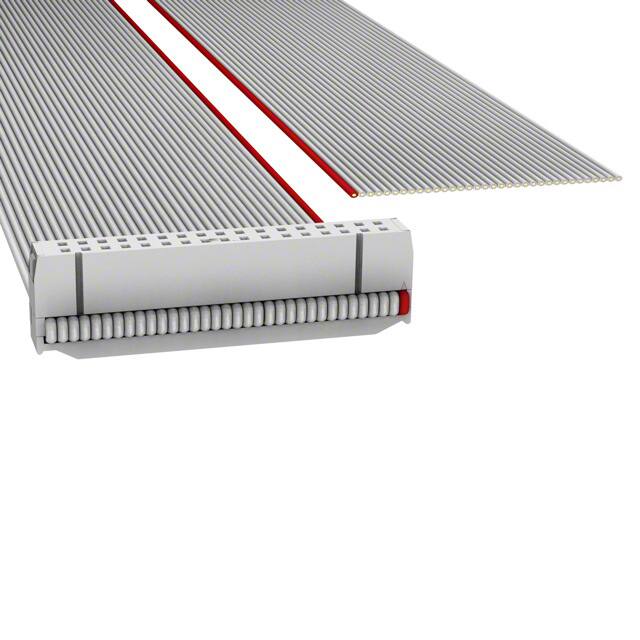

H1BXH-3436GIDC CBL - HHSR34H/AE34G/X |
3,673 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H6MMH-2618MDIP CABLE - HDM26H/AE26M/HDM26H |
4,682 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-2618MDIP CABLE - HDM26H/AE26M/HDM26H |
3,393 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-03.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,921 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-03.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,425 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
T1SS-04-28-GF-02.0-T3CBL ASSY 1MM 4POS M TO F |
1,362 |
|
- |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 4 | 1 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SST-07-28-GF-01.80-L3MICRO MATE SINGLE ROW DISCRETE T |
2,536 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 7 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-07-30-GF-02.60-L3MICRO MATE SINGLE ROW DISCRETE W |
3,593 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 7 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-03-24C-L-100.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,360 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-03-20-L-05.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
3,019 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-02-28-G-10.00-S.050" TIGER EYE SINGLE ROW DISCR |
2,016 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 2 | 1 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
H3CWH-2606GIDC CBL - HHKC26H/AE26G/HHPL26H |
4,022 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
TCMD-08-S-02.00-01CABLE ASSEM 2MM 16POS SGL END 2" |
1,066 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
