Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDMD-07-D-08.00-GSLIM BODY DOUBLE-ROW IDC MALE AS |
3,192 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-05-24C-S-24.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
4,215 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
S1SS-15-28-GF-09.50-D-NUSMICRO MATE SINGLE ROW DISCRETE W |
2,497 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 15 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSS-16-24-L-10.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
2,842 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 16 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MRTD-06-24-L-60.0.100" MINI MATE DOUBLE ROW PANEL |
1,718 |
|
Datasheet |
Mini Mate® MRTD | Bulk | Active | Plug to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock | Black, Individual | Shielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCSD-10-D-03.50-01-T-N-RIDC SOCKET AND TERMINAL CABLE AS |
3,064 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | 150.0µin (3.81µm) |
|
|
PMSD-04-16-K-20.00-D-LUS.165" POWER MATE DOUBLE ROW DISC |
1,166 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
SFSD-06-28-G-15.00-SRDOUBLE ROW DISCRETE WIRE ASSEMBL |
3,638 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-15-20-L-14.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,692 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-10-24C-L-50.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,546 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSD-05-24-F-04.00-D-KUX.100" MINI MATE UNIVERSAL DOUBLE |
4,654 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | 0.333' (101.60mm, 4.00") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
S1SS-10-28C-GF-16.50-L3MICRO MATE SINGLE ROW DISCRETE W |
4,633 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 10 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
IDMS-12-D-07.25-G-RSLIM BODY SINGLE-ROW IDC MALE AS |
4,205 |
|
Datasheet |
IDMS | Bulk | Active | Plug to Plug, Reversed | 12 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SESDT-05-32-G-07.6-L10.80 MM DOUBLE ROW TIGER EYE DIS |
2,126 |
|
Datasheet |
Tiger Eye™ SESDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.031" (0.80mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSS-02-28C-H-06.00-SSINGLE ROW DISCRETE WIRE ASSEMBL |
1,016 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
MMSS-04-28-L-24.00-D-K-MUSMINI-MATE CABLE ASSEMBLY, 0.100" |
1,704 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 4 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSD-05-24-F-04.00-D-KDX.100" MINI MATE UNIVERSAL DOUBLE |
4,470 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | 0.333' (101.60mm, 4.00") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | - |
|

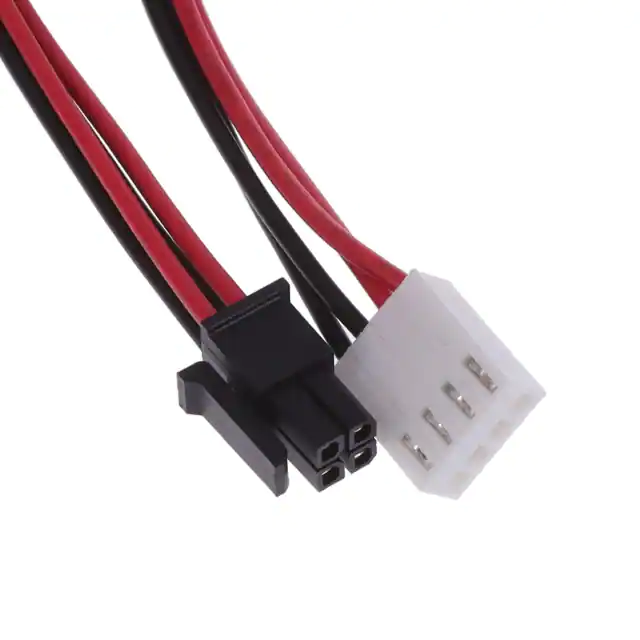

MLX410070M23MLX2X2(RCABLE ASSY 4 POS 9.05" |
1,379 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 4 | 1, 2 | 0.100" (2.54mm) | - | 0.755' (230.00mm, 9.05") | - | Black, Red, Individual | Unshielded | - | Crimp | Tin | - |
|
|
SFSD-07-30-G-04.00-SS.050 SOCKET DISCRETE CABLE ASSEM |
4,238 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | Polarizing Key, Screw Lock | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDSD-11-S-07.90-P11-GINSULATION DISPLACEMENT TERMINAL |
2,783 |
|
- |
IDSD | Bulk | Active | Socket to Cable | 22 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.658' (200.66mm, 7.90") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
