Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB15WGW01SWITCH PUSHBUTTON SPDT 3A 125V |
1,796 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
PV4F2G0SS-325SWITCH PUSHBUTTON DPDT 2A 24V |
3,306 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Orange | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV4FWH0SS-341SWITCH PB DPDT 2A 24V |
2,366 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
UB26NBKG015FSWITCH PUSH DPDT 0.4VA 28V |
2,542 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
SAV7F1BSS341SWITCH PB SPDT 15A 125V |
2,852 |
|
Datasheet |
SAV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 3 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
ATPS19SL1306M0SA04GRING, RED, 6V, RND, SPST, MOM, L |
3,774 |
|
Datasheet |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 70°C |
|
AV1910E312Q04SWITCH PUSHBUTTON SPDT 3A 250V |
2,773 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
ILP3FAD2SWITCH PUSHBUTTON SPST-NO 2A 24V |
1,545 |
|
Datasheet |
IL | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
PV4F2Y011-311SWITCH PUSHBUTTON DPST 2A 24V |
2,785 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
ILR3SAD2L0SSWITCH PUSHBUTTON SPST-NO 2A 24V |
2,406 |
|
Datasheet |
IL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
UB225KKW015DSWITCH PUSHBUTTON DPDT 5A 125V |
1,962 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
A22NL-BNA-TAA-G002-ADSWITCH PUSH SPST-NC 10A 120V |
2,574 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 100 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
AV1910P312Q04SWITCH PUSHBUTTON SPDT 3A 250V |
2,396 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
1241.2352SWITCH PUSH SPST-NO 100MA 42V |
3,761 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
9216-03SWITCH MOM NO |
2,620 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 35A (DC) | - | 12 V | Round, Button, Rubber Cap | No Marking | Black | - | - | Screw Terminal | - | - | - | - |
|
XB6ECF4B2PILLUMINATED MONOLITHIC PUSH BUTT |
1,792 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | Off-On | - | - | - | Square, Button | - | Red | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

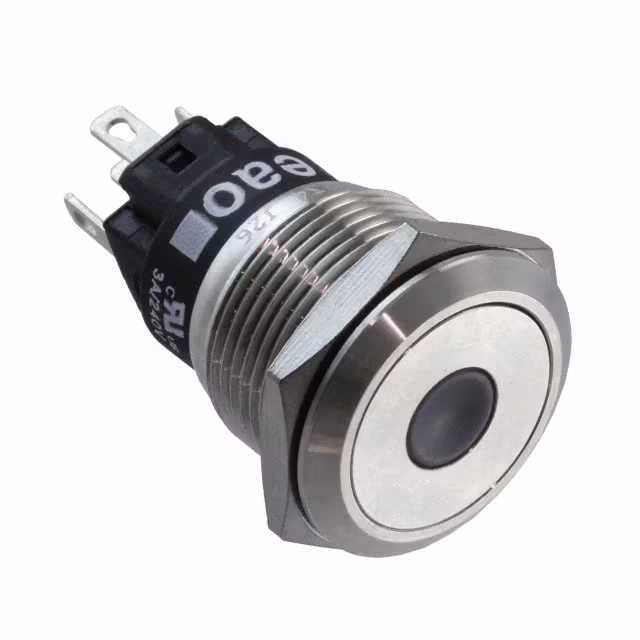

82-5151.1234SWITCH PUSHBUTTON SPDT 3A 240V |
1,560 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
SAV8F13SS311SWITCH PB SPDT 15A 125V |
4,816 |
|
Datasheet |
SAV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 15A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 3 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
ULV4FWBSS544SWITCH PB SPDT 3A 250V |
3,222 |
|
Datasheet |
ULV4 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
PV3WF2H0SS-345SWITCH PUSHBUTTON DPDT 2A 48V |
4,661 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
