Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH22LSSFE1121604SWITCH PUSHBUTTON SPDT 16A 125V |
2,987 |
|
- |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, White | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
AVH22LSSFE5121604SWITCH PUSHBUTTON SPDT 16A 125V |
3,172 |
|
- |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
91800SWITCH P-P MOM |
1,897 |
|
- |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off, On-Mom | 10A (DC) | - | 12 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
|
YB15SKW03-5C-JBSWITCH PUSHBUTTON SPDT 3A 125V |
2,968 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | PC Pin | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15SKW03-5F-JBSWITCH PUSHBUTTON SPDT 3A 125V |
4,151 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.2 VDC | PC Pin | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB26NBKW015F-JBSWITCH PUSHBUTTON DPDT 5A 125V |
2,853 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
YB15NKW01-GBSWITCH PUSHBUTTON SPDT 3A 125V |
4,809 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

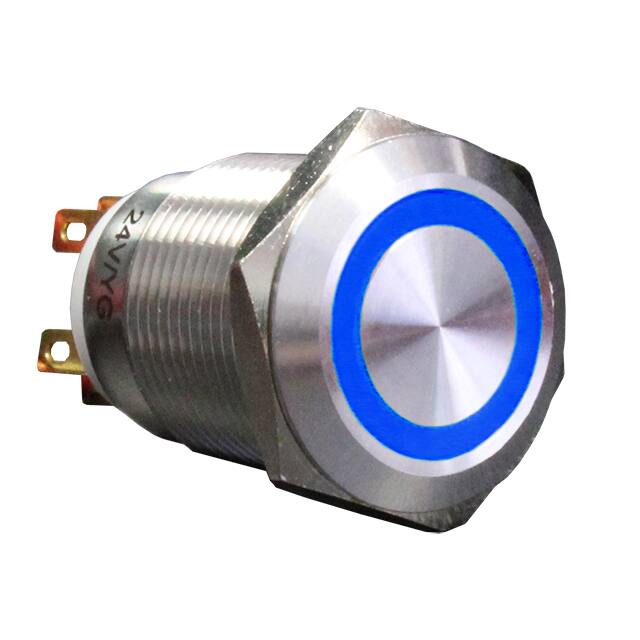

AH1NBSB24SWITCH PB DPST-NO/NC 1A 125V |
2,490 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|

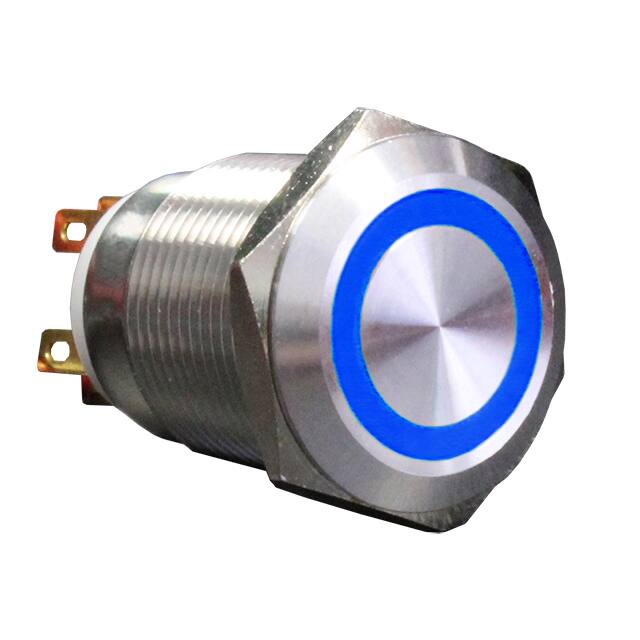

AH1NBSB12SWITCH PB DPST-NO/NC 1A 125V |
1,021 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBBRNSWITCH PB DPST-NO/NC 1A 125V |
4,635 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBBGNSWITCH PB DPST-NO/NC 1A 125V |
3,115 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
PA354/HDW ASSMSWITCH PUSH BUTTON |
4,668 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LB25CKW01/CULSTD SIZE PUSHBUTTON/ILLUMINATED/ |
4,997 |
|
- |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MBN22SB1W01-CCLARGE BUSHING MINIATURE PUSHBUTT |
1,983 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN22SB1W01-CALARGE BUSHING MINIATURE PUSHBUTT |
1,923 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
PV4F2B011-3R1SWITCH PB SPDT 2A 24V |
2,666 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Black | LED, Blue/Green/Red | 1.8, 2.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
LAKOAU11JREDREDSWITCH PUSHBUTTON SPDT 8A 125V |
2,561 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
LASOAU11HGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
3,806 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | 6 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
LASOAU11HREDREDSWITCH PUSHBUTTON SPDT 8A 125V |
2,350 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Red | LED, Red | 6 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
LASOAU11HYELBLUSWITCH PUSHBUTTON SPDT 8A 125V |
3,332 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Blue | LED, Yellow | 6 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
