DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKU4511PIDC DC CONVERTER 5V 50W |
2,351 |
|
Datasheet |
PKU 4000 (50W) | Sixteenth Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -45°C ~ 120°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
ERM00BB18DC DC CONVERTER +/-12V 10W |
2,376 |
|
Datasheet |
ERM (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial), Railway | OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - |
|
|
ERM00BB36DC DC CONVERTER +/-12V 10W |
3,827 |
|
Datasheet |
ERM (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial), Railway | OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - |
|
|
ERM00CC18DC DC CONVERTER +/-15V 10W |
3,008 |
|
Datasheet |
ERM (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 335mA, 335mA | 10 W | 3 kV | ITE (Commercial), Railway | OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - |
|
|
ERM00CC36DC DC CONVERTER +/-15V 10W |
2,560 |
|
Datasheet |
ERM (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 335mA, 335mA | 10 W | 3 kV | ITE (Commercial), Railway | OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - |
|
|
EC5BU-24S05ATLOW POWER DC-DC I/P:18-36VDC O/P |
2,775 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-12S12ATLOW POWER DC-DC I/P:9-18VDC O/P: |
1,195 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-24S12ATLOW POWER DC-DC I/P:18-36VDC O/P |
4,651 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-48S33ATLOW POWER DC-DC I/P:36-75VDC O/P |
2,671 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 4A | 13 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-48S15ATLOW POWER DC-DC I/P:36-75VDC O/P |
2,403 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-12S05ATLOW POWER DC-DC I/P:9-18VDC O/P: |
3,001 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-24S33ATLOW POWER DC-DC I/P:18-36VDC O/P |
2,799 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 4A | 13 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-48S05ATLOW POWER DC-DC I/P:36-75VDC O/P |
3,993 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-48S12ATLOW POWER DC-DC I/P:36-75VDC O/P |
2,567 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-12S33ATLOW POWER DC-DC I/P:9-18VDC O/P: |
3,855 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 4A | 13 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-12S15ATLOW POWER DC-DC I/P:9-18VDC O/P: |
2,575 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
|
EC5BU-24S15ATLOW POWER DC-DC I/P:18-36VDC O/P |
4,311 |
|
- |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 |
|
PTH03030WADDC DC CONVERTER 0.8-2.5V 75W |
4,832 |
|
Datasheet |
PTH03030W (75W) | 13-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 30A | 75 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - |
|

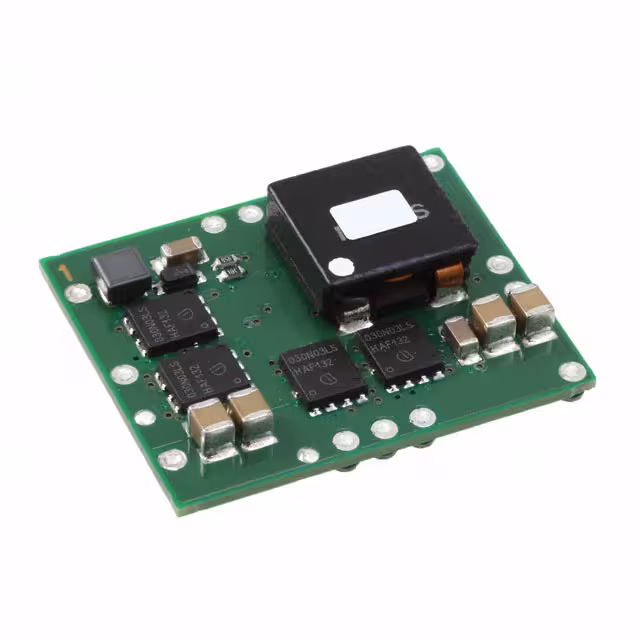

PTH03030WAZDC DC CONVERTER 0.8-2.5V 75W |
2,227 |
|
Datasheet |
PTH03030W (75W) | 13-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 30A | 75 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | - | - | - | - |
|
PTH05030WADDC DC CONVERTER 0.8-3.6V 108W |
3,639 |
|
Datasheet |
PTH05030W (108W) | Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 30A | 108 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - |
