Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q8F3BXXSG12ELED INDICATOR 8MM |
4,377 |
|
Datasheet |
Q8 | Bulk | Active | LED | Green | Colorless | Clear | DC | 12V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 3000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8P1BXXW220ELED INDICATOR 8MM |
2,345 |
|
Datasheet |
Q8 | Bulk | Active | LED | White | White | Diffused | AC | 220V | 3mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q8F3BXXSG28ELED INDICATOR 8MM |
1,596 |
|
Datasheet |
Q8 | Bulk | Active | LED | Green | Colorless | Clear | DC | 28V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 3000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8R1CXXW220ELED INDICATOR 8MM |
3,944 |
|
Datasheet |
Q8 | Bulk | Active | LED | White | White | Diffused | AC | 220V | 3mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Solder Lug | IP67 | - |
|
|
LB01GW01-5C-JCLED PANEL INDICATOR RED 5V |
1,933 |
|
Datasheet |
LB | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 5V | 30mA | Square | 0.64" x 0.64" (16.20mm x 16.20mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
LB01GW01-5F-JFLED PANEL INDICATOR GRN 2.1V |
4,833 |
|
Datasheet |
LB | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Square | 0.64" x 0.64" (16.20mm x 16.20mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
Q8R8BXXSG02ELED INDICATOR 8MM |
1,365 |
|
Datasheet |
Q8 | Bulk | Active | LED | Green | Colorless | Clear | DC | 1.8V ~ 3.3V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 10000mcd | - | 100° | Solder Lug | IP67 | - |
|
|
3PLBR5L-024PILOT LIGHT 22MM INTEGRAL LED AM |
3,330 |
|
Datasheet |
- | Bulk | Active | LED | Amber | Amber | - | AC/DC | 24V | 20mA | Round | 0.87" (22.00mm) | 29.80mm Dia | Round with Domed Top | - | - | - | Screw Terminal | IP65 | - |
|

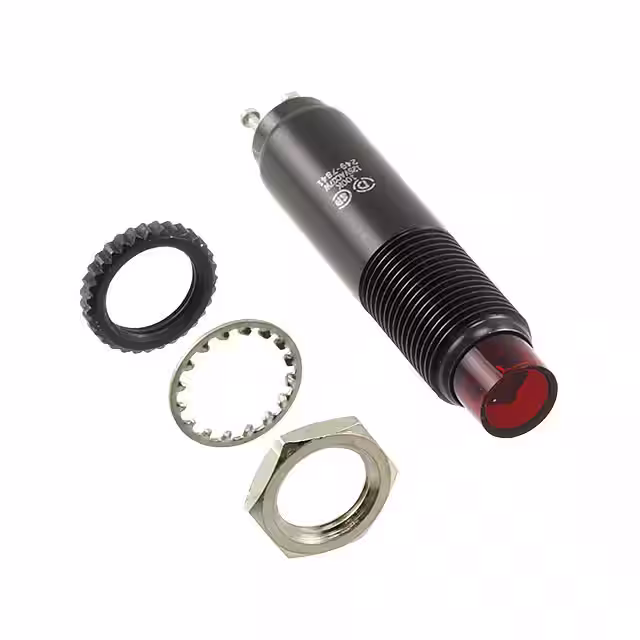

24978411431574INDICATOR 105-125VAC 100K OHM |
3,552 |
|
Datasheet |
249 | Bulk | Discontinued at Digi-Key | Neon | Red | - | - | AC/DC | 105V ~ 125V | - | Round | 0.38" (9.65mm) | 7.11mm Dia | Round with Flat Top | - | - | - | Wire Wrap | - | - |
|

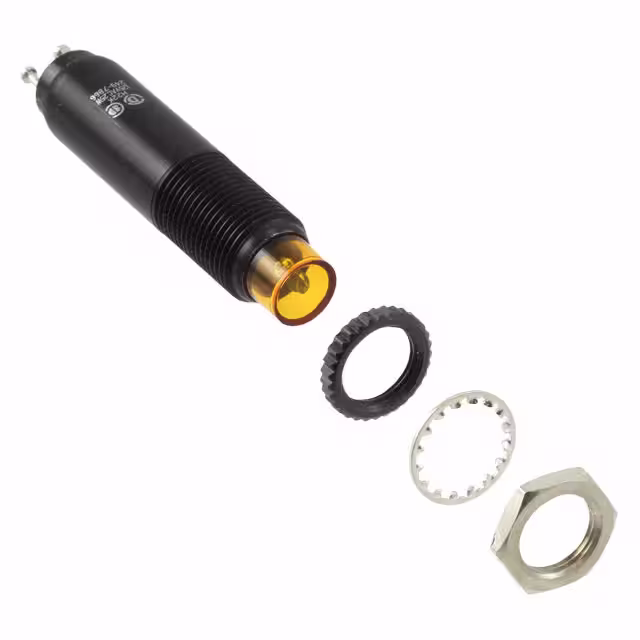

24978661433514PMI NEON DATALITE YLW 22K CYL |
2,774 |
|
Datasheet |
249 | Bulk | Discontinued at Digi-Key | Neon | - | Amber | - | AC/DC | 110V ~ 125V | - | Round | 0.38" (9.65mm) | 7.11mm Dia | Round with Flat Top | - | - | - | - | - | - |
|

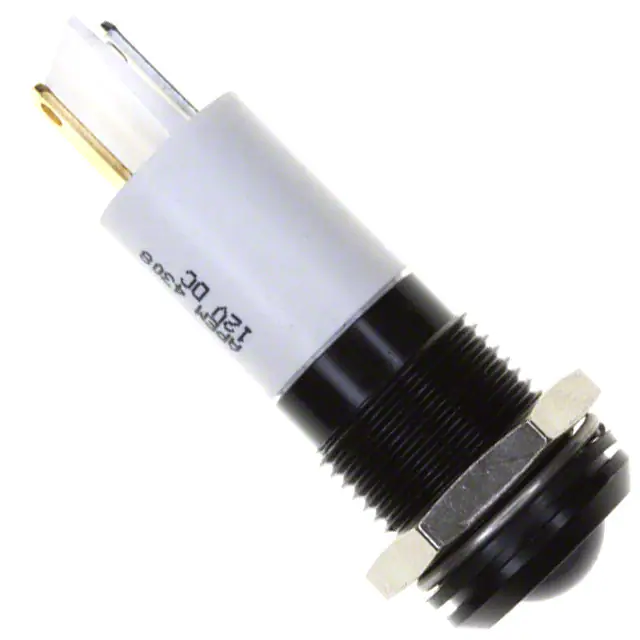

Q14P1BXXW12EINDICATOR 12V 14MM PROMINENT WHT |
2,212 |
|
Datasheet |
Q14 | Bulk | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 1000mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14P1BXXW24EINDICATOR 24V 14MM PROMINENT WHT |
1,739 |
|
Datasheet |
Q14 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 1000mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

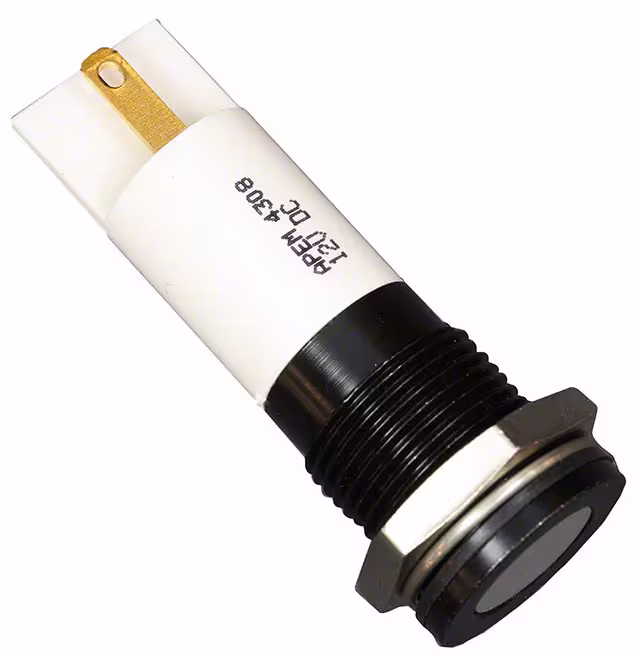

Q14F1BXXW12EINDICATOR 12V 14MM FLUSH WHITE |
1,060 |
|
Datasheet |
Q14 | Bulk | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 120mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

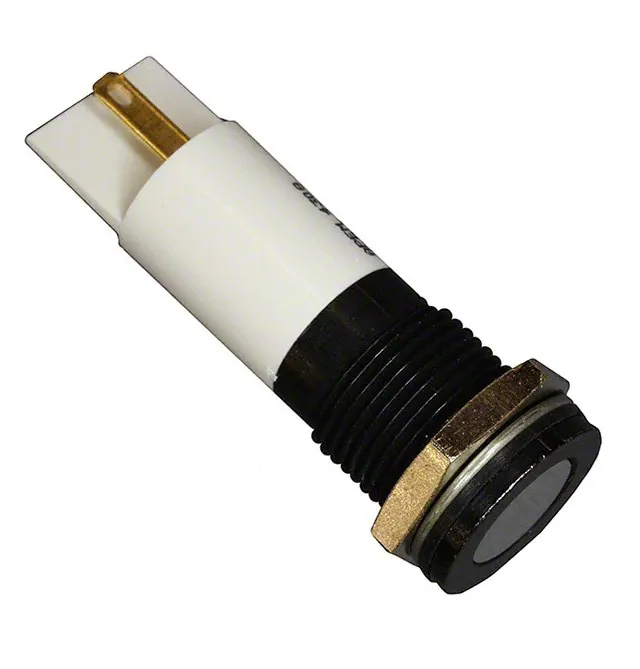

Q14F1BXXW24EINDICATOR 24V 14MM FLUSH WHITE |
3,083 |
|
Datasheet |
Q14 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 120mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14P1CXXW24EINDICATOR 24V 14MM PROMINENT WHT |
3,236 |
|
Datasheet |
Q14 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 1000mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F1CXXW24EINDICATOR 24V 14MM FLUSH WHITE |
1,933 |
|
Datasheet |
Q14 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 120mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q14P1BXXW28ELED INDICATOR 14MM |
2,956 |
|
Datasheet |
Q14 | Bulk | Active | LED | White | White | Diffused | DC | 28V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 1000mcd | - | 100° | Solder Lug | IP67 | - |
|
Q12P1CXXB24EINDICATOR 24V 12MM PROMINENT BLU |
3,984 |
|
Datasheet |
Q12 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 800mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q8P1CXXHY110ELED INDICATOR 8MM |
2,049 |
|
Datasheet |
Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC | 110V | 6mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q8P1CXXHR110ELED INDICATOR 8MM |
1,295 |
|
Datasheet |
Q8 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 6000mcd | - | 100° | Solder Lug | IP67 | - |
