Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19041351(17-041351) LED INDICATOR/ 5MM/ |
4,657 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
464W-NWO60H-NAO-R-PMI ROUND LED .250" 60V WIRE DIF |
2,708 |
|
Datasheet |
464 | Bag | Active | LED | Orange | Amber | Diffused | Vf (Typ), If (Max) | 60V | 10mA | Round | 0.25" (6.35mm) | 9.91mm Dia | Round with Flat Top | 2000mcd | 605nm | 30° | Wire Leads - 6.000" (152.40mm) | - | - |
|
|
Q8P3BXXG02PANEL MNT LED INDICATOR GRN 2V |
2,572 |
|
Datasheet |
Q8 | Bag | Discontinued at Digi-Key | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | - | - |
|
|
Q8P7BXXG24ELED INDICATOR 8MM |
3,733 |
|
Datasheet |
Q8 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8F8BXXG02ELED INDICATOR 8MM |
1,953 |
|
Datasheet |
Q8 | Bulk | Active | LED | Green | Green | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q8F8BXXY02ELED INDICATOR 8MM |
1,564 |
|
Datasheet |
Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q8P7BXXR12ELED INDICATOR 8MM |
4,962 |
|
Datasheet |
Q8 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 80mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8F8BXXR02ELED INDICATOR 8MM |
3,119 |
|
Datasheet |
Q8 | Bulk | Active | LED | Red | Red | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q6R2CXXSW02ELED INDICATOR 6MM |
3,710 |
|
Datasheet |
Q6 | Bulk | Active | LED | White | Colorless | Clear | Vf (Typ), If (Max) | 3.3V | 20mA | Round | 0.24" (6.00mm) | 3mm, T-1 | Round with Domed Top | 1200mcd | - | 100° | PC Pin | IP67 | - |
|
Q14P1BXXY12EINDICATOR 12V 14MM PROMINENT YEL |
4,194 |
|
Datasheet |
Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 50mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F1BXXR24EINDICATOR 24V 14MM FLUSH RED |
4,839 |
|
Datasheet |
Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 10mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

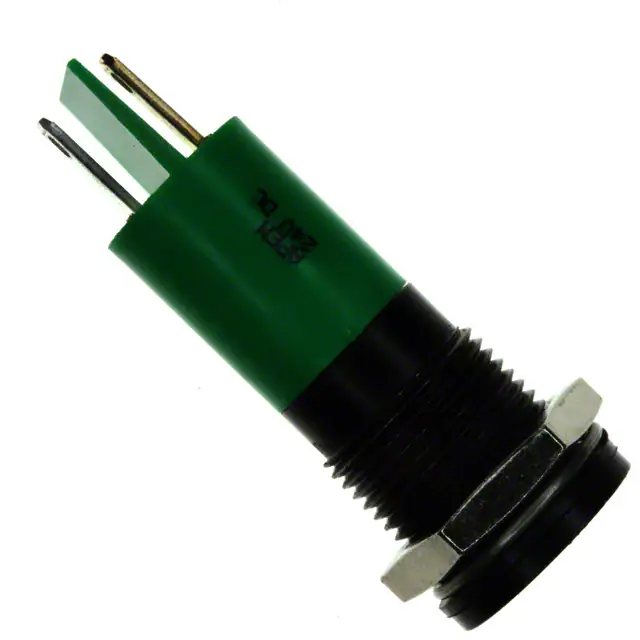

Q14F1BXXG24EINDICATOR 24V 14MM FLUSH GREEN |
2,612 |
|
Datasheet |
Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F1BXXY24EINDICATOR 24V 14MM FLUSH YELLOW |
1,545 |
|
Datasheet |
Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F1CXXR12EINDICATOR 12V 14MM FLUSH RED |
2,891 |
|
Datasheet |
Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 10mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

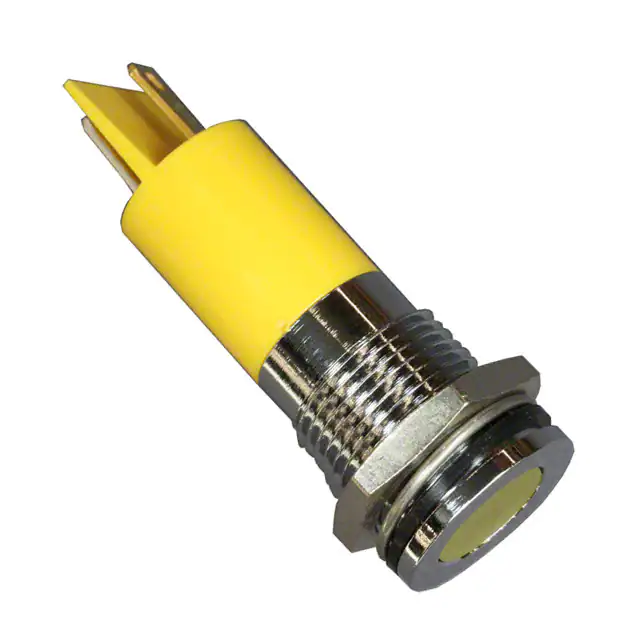

Q14F1CXXY12EINDICATOR 12V 14MM FLUSH YELLOW |
4,818 |
|
Datasheet |
Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F1CXXY24EINDICATOR 24V 14MM FLUSH YELLOW |
2,417 |
|
Datasheet |
Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q14P1BYYGY02EINDICATOR 2V 14MM BI-COLOR Y G |
4,632 |
|
Datasheet |
Q14 | Bulk | Active | LED | Green, Yellow | - | - | DC | 3.3V | 20mA | Round | 0.55" (14.00mm) | - | Round with Domed Top | 60mcd Green, 50mcd Yellow | - | - | Solder Lug | IP67 | - |
|
|
Q14P1GXXY24ELED INDICATOR 14MM |
2,912 |
|
Datasheet |
Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 50mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14P1CYYRG02ELED INDICATOR 14MM |
3,663 |
|
Datasheet |
Q14 | Bulk | Active | LED | Green, Red | Green, Red | Diffused | Vf (Typ), If (Max) | 2V Green, 2V Red | 20mA Green, 20mA Red | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 15mcd Green, 15mcd Red | - | 100° | Solder Lug | IP67 | - |
|
|
Q14F1BYYRG02ELED INDICATOR 14MM |
4,579 |
|
Datasheet |
Q14 | Bulk | Active | LED | Green, Red | Green, Red | Diffused | Vf (Typ), If (Max) | 2V Green, 2V Red | 20mA Green, 20mA Red | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 10mcd Green, 14mcd Red | - | 100° | Solder Lug | IP67 | - |
