Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q14F1CXXR02ELED INDICATOR 14MM |
3,298 |
|
Datasheet |
Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 10mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14P1CXXR02ELED INDICATOR 14MM |
3,300 |
|
Datasheet |
Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 80mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14P1CXXG02ELED INDICATOR 14MM |
1,607 |
|
Datasheet |
Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 60mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14F1CXXY02ELED INDICATOR 14MM |
1,136 |
|
Datasheet |
Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 4mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14P1CXXG06ELED INDICATOR 14MM |
3,861 |
|
Datasheet |
Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 6V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 60mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14F1CXXG02ELED INDICATOR 14MM |
2,899 |
|
Datasheet |
Q14 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 5mcd | - | 100° | Solder Lug | IP67 | - |
|
|
CC-1-3046-0000-IPMI DIA .319" (8.10MM) RED 2V |
1,909 |
|
Datasheet |
CC | Bag | Active | LED | Red | Red | - | Vf (Typ), If (Max) | 1.9V | 20mA | Round | 0.32" (8.10mm) | 5mm, T-1 3/4 | Round with Domed Top | 900mcd | 626nm | 30° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
CC-1-3047-0000-IPMI DIA .319" (8.10MM) GREEN 2V |
3,849 |
|
Datasheet |
CC | Bag | Active | LED | Green | Green | - | Vf (Typ), If (Max) | 3.2V | 20mA | Round | 0.32" (8.10mm) | 5mm, T-1 3/4 | Round with Domed Top | 5490mcd | 520nm | 20° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
CS-1-8711-0000-IPMI RND .230" LED 2V BLUE WIRE I |
4,521 |
|
Datasheet |
CS | Bag | Active | LED | Blue | Blue | - | Vf (Typ), If (Max) | 3.5V | 20mA | Round | 0.23" (5.84mm) | - | Round with Domed Top | 2300mcd | 470nm | 25° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
CC-1-3036-0000-IPMI DIA .319" (8.10MM) RED 2V |
2,057 |
|
Datasheet |
CC | Bag | Active | LED | Red | Red | - | Vf (Typ), If (Max) | 1.85V | 20mA | Round | 0.32" (8.10mm) | 5mm, T-1 3/4 | Round with Domed Top | 2800mcd | 660nm | 20° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
CC-1-3048-0000-IPMI DIA .319" (8.10MM) AMBER 2V |
3,724 |
|
Datasheet |
CC | Bag | Active | LED | Amber | Amber | - | Vf (Typ), If (Max) | 2.02V | 20mA | Round | 0.32" (8.10mm) | 5mm, T-1 3/4 | Round with Domed Top | 1300mcd | 592nm | 30° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
PM3-PRADW12.0PNL MNT AMBER 5.8MM LENS 1' WIRE |
3,447 |
|
Datasheet |
- | Bag | Active | LED | Amber | - | - | AC/DC | 8V ~ 48V | 20mA | Round | 0.23" (5.84mm) | 5.80mm Dia | Round with Domed Top | 45mcd | 610nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
|
1.69.508.840/1503LED PANEL INDICATOR GREEN IP40 |
1,067 |
|
- |
- | Bulk | Obsolete | LED | Green | Green | Clear | - | - | - | Round | 0.20" (5.08mm) | 5.80mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP40 | - |
|

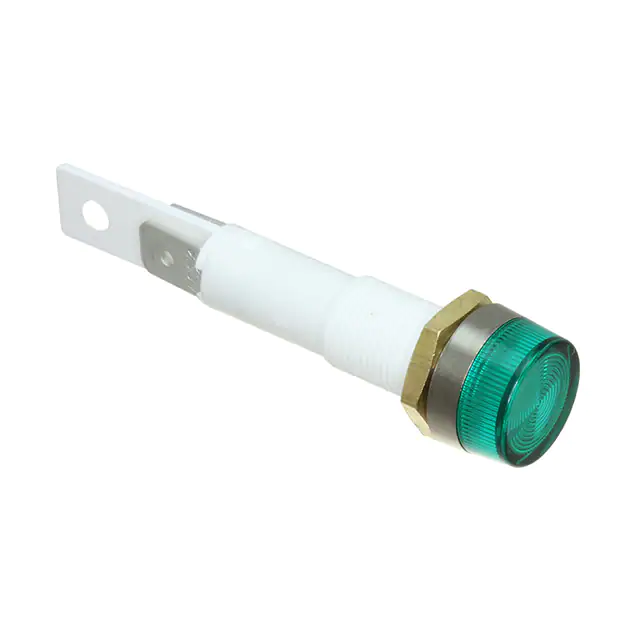

NL177C3GINDICATOR LIGHT NEON 230V GREEN |
1,991 |
|
Datasheet |
NL | Bulk | Active | Neon | Green | Green | Diffused | - | 250V | - | Round | 0.50" (12.70mm) | - | Round with Flat Top | - | - | - | - | - | - |
|
|
NL275C3A-CHROMEINDICATOR LIGHT NEON 230 AMBER |
1,754 |
|
Datasheet |
NL | Bulk | Active | Neon | Amber | Amber | Diffused | - | 250V | - | Round | 0.39" (9.91mm) | - | Round with Flat Top | - | - | - | - | - | - |
|
|
Q8F8CXXG02ELED INDICATOR 8MM |
1,801 |
|
Datasheet |
Q8 | Bulk | Active | LED | Green | Green | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q8P8CXXY02ELED INDICATOR 8MM |
2,740 |
|
Datasheet |
Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.32" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | - | 100° | Solder Lug | IP67 | - |
|
|
1.74.508.061/2200PANEL INDICATOR YELLOW IP65 |
3,299 |
|
- |
- | Bulk | Obsolete | - | Yellow | White | Diffused | - | - | - | Round | 0.88" (22.30mm) | 29.80mm Dia | Round with Domed Top | - | - | - | - | IP65 | - |
|
|
1.74.508.061/2500PANEL INDICATOR YELLOW IP65 |
3,273 |
|
- |
- | Bulk | Obsolete | - | Yellow | Green | Diffused | - | - | - | Round | 0.88" (22.30mm) | 29.80mm Dia | Round with Domed Top | - | - | - | - | IP65 | - |
|
|
19590352(19590352) LED INDICATOR/ 8MM/ F |
1,472 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
