Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01384.35.01CABLE 4COND 10AWG BLACK |
4,037 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.655" (16.64mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
55PC0233-22-3/6/9CS2958CABLE 3COND 22AWG |
3,434 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 19/34 | Copper, Nickel Coated | - | 0.098" (2.48mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M9706020 BK002MULTI-PAIR 4COND 16AWG BLACK |
4,061 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.425" (10.80mm) | Foil | 500.0' (152.4m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|

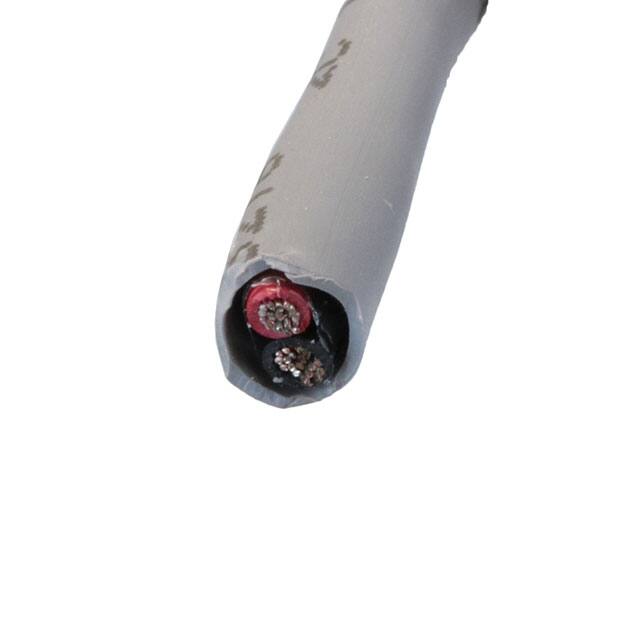

M3216 SL002CABLE 2COND 16AWG SLATE SHLD |
1,003 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.247" (6.27mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2095 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
7929A 0105000CABLE CAT5E 8COND 24AWG |
3,831 |
|
Datasheet |
DataTuff® | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.578" (14.68mm) | Foil | 5000' (1524.0m) | Black | UL Style CMR | Drain Wire, Oil Resistant, Rip Cord, UV Resistant | 300 V | -40°C ~ 75°C | Industrial, Network | 0.0300" (0.762mm) | Polyolefin (PO) | - |
|
|
89083.35.02CABLE 3COND 12AWG WHITE 250' |
3,149 |
|
Datasheet |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.614" (15.60mm) | - | 250.0' (76.2m) | White | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
89083.41.02CABLE 3COND 12AWG WHITE |
3,252 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.614" (15.60mm) | - | 1000.0' (304.8m) | White | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
89083.46.02CABLE 3COND 12AWG WHITE |
1,811 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.614" (15.60mm) | - | 5000' (1524.0m) | White | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
89083.46.05CABLE 3COND 12AWG YELLOW |
2,301 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.614" (15.60mm) | - | 5000' (1524.0m) | Yellow | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
89083.XX.02CABLE 3COND 12AWG WHITE |
1,074 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.614" (15.60mm) | - | - | White | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
89083.XX.05CABLE 3COND 12AWG YELLOW |
1,466 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.614" (15.60mm) | - | - | Yellow | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
65223CY SL002CABLE 3COND 22AWG SLATE SHLD |
3,110 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.324" (8.23mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00692CABLE 2COND 24AWG BLACK 1M |
2,154 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 24 AWG | 34/11 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.157" (3.99mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
02767.46.01CABLE 2COND 10AWG BLACK |
4,437 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.620" (15.75mm) | - | 5000' (1524.0m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
02767.35.03CABLE 2COND 10AWG RED 250' |
2,726 |
|
- |
- | Spool | Active | Multi-Conductor | 2 | 10 AWG | 104/30 | Copper, Annealed Bare | Carolprene | 0.620" (15.75mm) | - | 250.0' (76.2m) | Red | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
02767.XX.03CABLE 2COND 10AWG RED |
3,318 |
|
- |
- | Spool | Active | Multi-Conductor | 2 | 10 AWG | 104/30 | Copper, Annealed Bare | Carolprene | 0.620" (15.75mm) | - | - | Red | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
09816.35.01CABLE 16COND 18AWG BLACK |
3,412 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 16 | 18 AWG | 16/30 | Copper, Bare | Super Vu-Tron® | 0.700" (17.78mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M13315 SL005CABLE 15COND 22AWG SLATE |
2,109 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.310" (7.87mm) | - | 100.0' (30.5m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9503 060U1000MULTI-PAIR 6COND 24AWG |
3,306 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.232" (5.89mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2464 | Drain Wire | 300 V | -30°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
09612.35.01CABLE 12COND 16AWG BLACK |
1,206 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 16 AWG | 26/30 | Copper, Bare | Super Vu-Tron® | 0.660" (16.76mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
