Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55PC1131-26-0/2/9-9CABLE 3COND 26AWG WHITE SHLD |
4,243 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 26 AWG | 19/38 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.098" (2.48mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
02635.41T.05CABLE 3COND 16AWG YELLOW |
3,209 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Tinned | Super Vu-Tron® Supreme | 0.395" (10.03mm) | - | 1000.0' (304.8m) | Yellow | - | - | 600 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

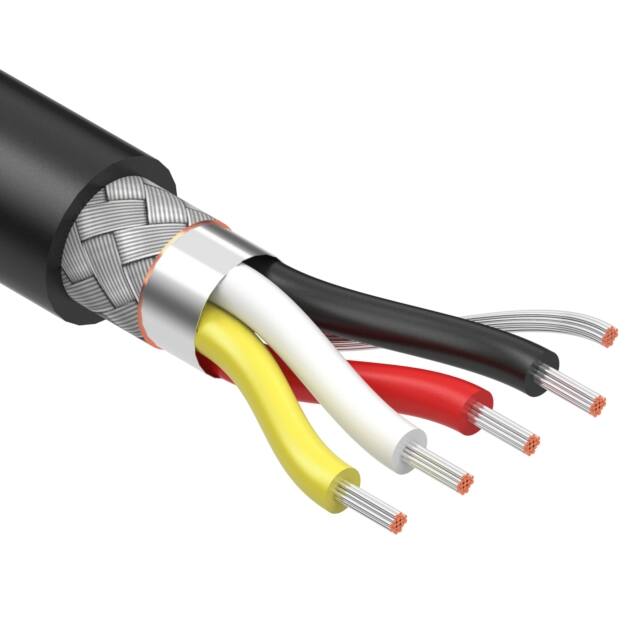

30-01582CABLE 4COND 30AWG BLACK SHLD |
2,316 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 30 AWG | 7/0.0039" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-01668CABLE 5COND 26AWG BLACK |
4,955 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 26 AWG | 26/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0244-24-2/4/5/6CS2502CABLE 4COND 24AWG |
4,827 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 (1 Twisted Quad) | 24 AWG | 19/36 | Copper Alloy, Silver Coated | - | 0.102" (2.59mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
44AM1141-22-9/93/95/96-9CABLE 4COND 22AWG WHITE SHLD |
4,270 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.147" (3.73mm) | Braid | - | White | - | - | 600 V | -55°C ~ 150°C | - | 0.0100" (0.254mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
658AMJ 0045003P22 FS+2C22+4C22+4C18 CMP |
1,868 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
65002 SL199CABLE 2COND 20AWG SLATE 1000' |
3,534 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC2121-22-9/96-95-L002CABLE 2COND 22AWG GRN/WH SHLD |
3,064 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.105" (2.67mm) | Braid | - | Green, White | - | - | 600 V | 150°C | - | 0.0075" (0.191mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
09807.99.01CABLE 7COND 18AWG BLACK 1=1FT |
3,719 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 7 | 18 AWG | 16/30 | Copper, Bare | Super Vu-Tron® | 0.520" (13.21mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M1433 WH005CABLE 3COND 24AWG WHITE SHLD |
4,405 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.164" (4.17mm) | Braid | 100.0' (30.5m) | White | - | - | 600 V | -55°C ~ 105°C | - | 0.0160" (0.406mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M9740020 BK005MULTI-PAIR 4COND 20AWG BLACK |
1,867 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.368" (9.35mm) | Foil | 100.0' (30.5m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M33805 BK001CABLE 7COND 18AWG BLACK SHLD |
3,121 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.366" (9.30mm) | Foil | 1000.0' (304.8m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC2121-20-2/6-9CABLE 2COND 20AWG WHITE SHLD |
1,004 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.122" (3.10mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55A1141-24-MST4-9CS2275CABLE 4COND 24AWG WHITE SHLD |
2,658 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 24 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
09608.44.01CABLE 8COND 16AWG BLACK |
1,279 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 16 AWG | 26/30 | Copper, Bare | Super Vu-Tron® | 0.575" (14.61mm) | - | 2500' (762.0m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
76302WS 008500CABLE 2CON 22AWG CHROM SHLD |
1,421 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.208" (5.28mm) | Foil, Spiral | 500.0' (152.4m) | Chrome | - | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2140A 0101000CAT6 4PR F/UTP OSP-CM REEL |
2,267 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Low Smoke Zero Halogen (LSZH) | 0.360" (9.14mm) | Foil | 1000.0' (304.8m) | Black | - | - | 300 V | -40°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
55PC0223-16-6/9CS2957CABLE 2COND 16AWG |
2,072 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/29 | Copper, Nickel Coated | - | 0.142" (3.61mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|

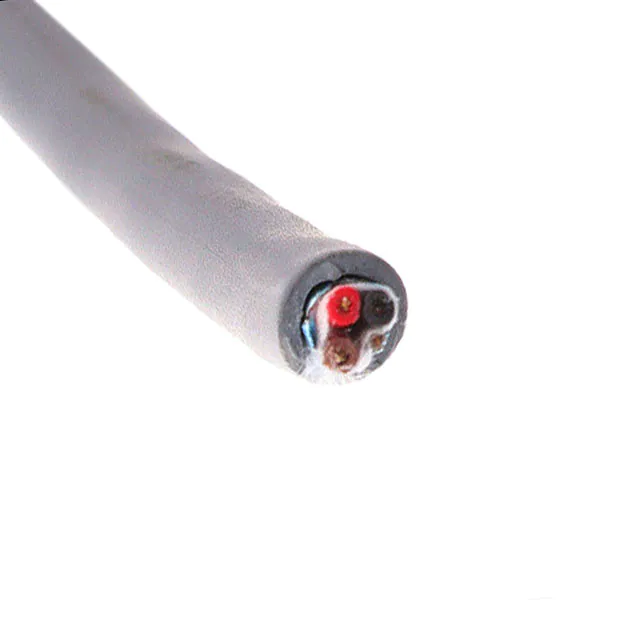

77148 SL001CABLE 3COND 26AWG SHLD |
2,561 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.156" (3.96mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
