Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02766.35T.01CABLE 4COND 16AWG BLACK |
2,936 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Annealed Bare | Carolprene | 0.420" (10.67mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
02770.L5.0118/4 SOOW 600V-BLK-LL |
3,680 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6000UE 0121000CABLE 2COND 12AWG PINK |
4,591 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | 19/25 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.252" (6.40mm) | - | 1000.0' (304.8m) | Pink | UL Style CL2P | Rip Cord | 150 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6000UE 8771000CABLE 2COND 12AWG NATURAL |
2,914 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | 19/25 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.252" (6.40mm) | - | 1000.0' (304.8m) | Natural | UL Style CL2P | Rip Cord | 150 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
862002CY SL001CABLE 2COND 20AWG SHLD |
3,800 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2661 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
M2479 SL001CABLE 9COND 22AWG SHLD |
1,256 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M33803 BK002CABLE 5COND 18AWG BLACK SHLD |
1,880 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.340" (8.64mm) | Foil | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2421C SL199CABLE 2COND 18AWG SHLD 1000' |
4,635 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.202" (5.13mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|
|
M5333 SL199CABLE 2COND 22AWG SHLD 3000' |
4,534 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.193" (4.90mm) | Foil | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2216030/76LFLEX TRAY II CY 3G1.5 16/3C |
3,767 |
|
- |
ÖLFLEX® | Bulk | Active | Multi-Conductor | 3 | 16 AWG | 30/0.0102" | Copper, Bare | Thermoplastic Polymer | 0.350" (8.89mm) | Foil, Braid | 50.00' (15.24m) | Black | - | - | - | - | - | - | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|

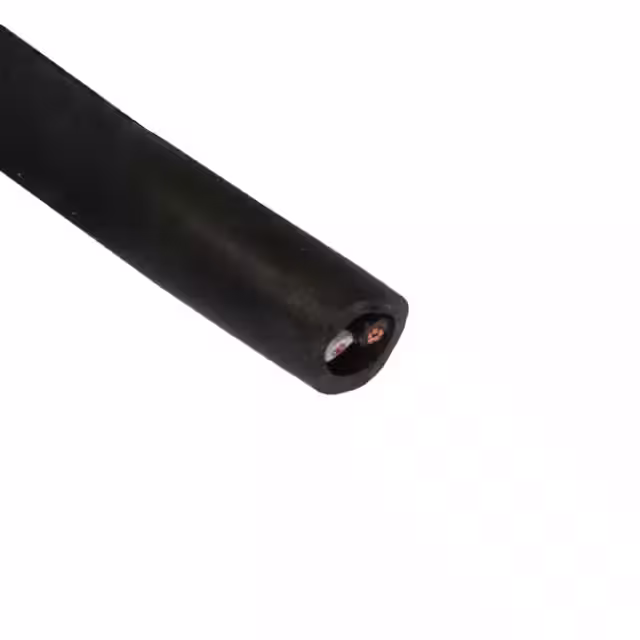

5606B1801 BK002CABLE 2COND 18AWG BLACK |
4,234 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
4EPL4S.41.05CABLE 16COND 18AWG/22AWG |
4,868 |
|
- |
- | Spool | Active | Multi-Conductor | 16 (3 Twisted Pairs + 10) | 18 AWG, 22 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.430" (10.92mm) | - | 1000.0' (304.8m) | Yellow | UL Style CMR | - | - | 0°C ~ 60°C | - | - | - | - |
|
|
M3804 BK199CABLE 6COND 18AWG BLACK 3000' |
2,641 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.362" (9.20mm) | - | 3000' (914.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
09607.44.01CABLE 7COND 16AWG BLACK |
1,600 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 16 AWG | 26/30 | Copper, Bare | Super Vu-Tron® | 0.540" (13.72mm) | - | 2500' (762.0m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
55PC0231-22-9/93/96CABLE 3COND 22AWG |
3,076 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 19/34 | Copper, Tinned | - | 0.098" (2.48mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M33829 BK002CABLE 4COND 16AWG BLACK SHLD |
1,582 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.343" (8.71mm) | Foil | 500.0' (152.4m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M64837 SL001CABLE 2COND 24AWG SHLD |
1,684 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/32 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.096" (2.44mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 150°C | - | 0.0098" (0.250mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
IFRH5C04BL-UG-SPANDUIT INDUSTRIAL ETHERNET/IP C |
2,673 |
|
Datasheet |
IndustrialNet™ | Bulk | Obsolete | Multi-Pair, Cat5e | 2 (1 Pair Twisted) | 24 AWG | Solid | Copper | Polyurethane (PU) | 0.250" (6.35mm) | - | 1000.7' (305.0m) | Black | - | Oil Resistant, UV Resistant | 80 V | -40°C ~ 75°C | - | - | High Density Polyethylene (HDPE) | - |
|
|
882006 SL002CABLE 6COND 20AWG SLATE |
3,313 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 20 AWG | 10/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | - | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC1231-22-9/93/96-9CABLE 3COND 22AWG WHITE SHLD |
3,548 |
|
Datasheet |
- | Bulk | Obsolete | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.131" (3.33mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0075" (0.191mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
