Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8723SB 0101000MULTI-PAIR 4COND 22AWG BLK |
3,157 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.196" (4.98mm) | Foil | 1000.0' (304.8m) | Black | - | - | 300 V | -30°C ~ 105°C | Marine | - | Polypropylene (PP) | - |
|
|
CXA-0092-16-6/9CS2973CABLE 2COND 16AWG BLU/WH |
4,322 |
|
- |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/29 | - | - | 0.158" (4.01mm) | - | - | Blue, White | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
02601.15T.05CABLE 2COND 18AWG YELLOW |
3,136 |
|
- |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 41/34 | Copper, Annealed Tinned | Super Vu-Tron® Supreme | 0.310" (7.87mm) | - | 250.0' (76.2m) | Yellow | - | - | 300 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

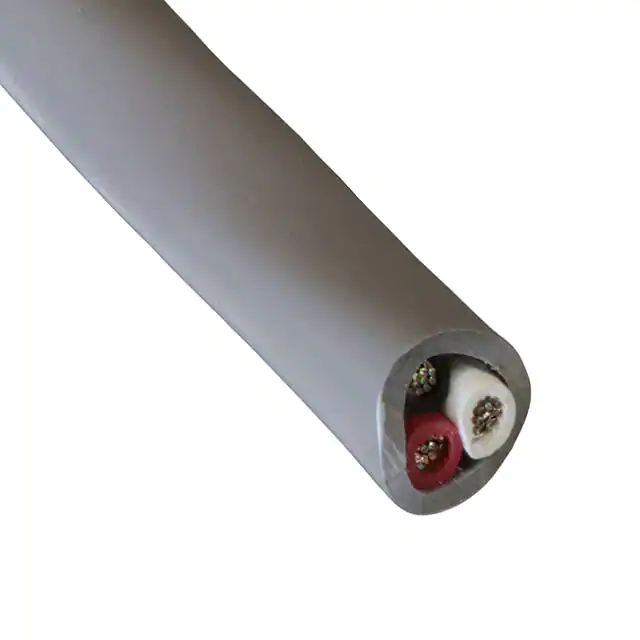

M39078 SL002CABLE 3COND 16AWG SLATE |
1,717 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.275" (6.99mm) | - | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 105°C | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
221404/76LFLEX TRAY II 4G2.5 14/4C |
2,177 |
|
- |
ÖLFLEX® | Bulk | Active | Multi-Conductor | 4 | 14 AWG | 50/0.0102" | Copper, Bare | Thermoplastic Polymer | 0.392" (9.96mm) | - | 50.00' (15.24m) | Black | - | - | - | -40°C ~ 90°C | - | - | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
M33410 SL001CABLE 10COND 20AWG SLATE |
4,735 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.320" (8.13mm) | - | 1000.0' (304.8m) | Slate | UL Style 2509 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
02769.99.01CABLE 3COND 18AWG BLACK 1=1FT |
4,143 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Bare | Carolprene | 0.365" (9.27mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M13194 SL199MULTI-PAIR 10COND 24AWG 3000' |
1,512 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.267" (6.78mm) | Foil | 3000' (914.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M244835 WH199CABLE 3COND 16AWG WHT SHLD 3000' |
2,130 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.204" (5.18mm) | Foil | 3000' (914.4m) | White | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M33308 SL199CABLE 8COND 22AWG SLATE 3000' |
1,116 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.233" (5.92mm) | - | 3000' (914.4m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3802 BK199CABLE 4COND 18AWG BLACK 3000' |
2,189 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.310" (7.87mm) | - | 3000' (914.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M39031 SL199CABLE 10COND 24AWG SHLD 3000' |
2,600 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | - | Poly-Vinyl Chloride (PVC) | 0.247" (6.27mm) | Foil | 3000' (914.4m) | Slate | - | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C2688A.41.10CABLE 4CON 18AWG GRAY SHLD 1000' |
1,431 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.286" (7.26mm) | Braid | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
C6052A.41.10MULTI-PAIR 6COND 20AWG GRAY |
2,357 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.339" (8.61mm) | Foil | 1000.0' (304.8m) | Gray | UL Style 2919 | Drain Wire | 30 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
|
55A4121-22-0/9-9CABLE 2COND 22AWG WHITE |
2,493 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.102" (2.59mm) | - | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|

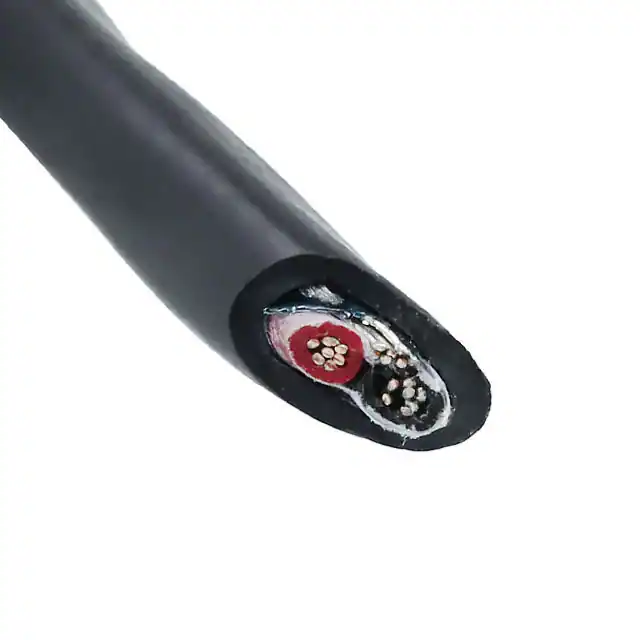

M33845 BK001CABLE 2COND 14AWG BLACK SHLD |
4,396 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.331" (8.41mm) | Foil | 1000.0' (304.8m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M33507 SL002CABLE 7COND 18AWG SLATE |
1,498 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.288" (7.32mm) | - | 500.0' (152.4m) | Slate | UL Style 2509 | - | 300 V | -20°C ~ 80°C | - | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - |
|
M39250 SL001MULTI-PAIR 6COND 24AWG |
1,304 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.340" (8.64mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2493 | Drain Wire, Rip Cord | 300 V | -20°C ~ 90°C | - | 0.0480" (1.219mm) | Foam Polypropylene (FPP) | - |
|
30-01575CABLE 3COND 32AWG BLACK SHLD |
1,025 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 32 AWG | 7/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.173" (4.39mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01980CABLE 2COND 30AWG BLACK |
4,216 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 30 AWG | 7/0.0039" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.126" (3.20mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0090" (0.229mm) | Polyphenylene Ether, Modified (mPPE) | - |
