Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1704.30.02CABLE SPKR 2COND 16AWG WHITE |
1,373 |
|
- |
Command™ | Bulk | Active | Speaker | 2 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.191" (4.85mm) | - | 1000.0' (304.8m) | White | - | - | 300 V | -20°C ~ 60°C | Audio-Video, Home | 0.0210" (0.533mm) | Polypropylene (PP) | - |
|
6500PE 0101000CABLE 2COND 22AWG BLK SHLD |
4,795 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.130" (3.30mm) | Foil | 1000.0' (304.8m) | Black | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
E1038S.41.10CABLE 8COND 18AWG GRAY |
2,856 |
|
- |
- | Spool | Active | Multi-Conductor | 8 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.245" (6.22mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
C4101A.30.10CABLE 3COND 22AWG GRAY |
2,895 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.176" (4.47mm) | - | 1000.0' (304.8m) | Gray | - | - | - | -20°C ~ 105°C | - | 0.0320" (0.813mm) | - | - |
|
|
6300FE 877U500CABLE 2COND 18AWG NAT SHLD |
4,907 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 500.0' (152.4m) | Natural | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 009U500CABLE 2CON 18AWG WHT SHLD |
2,850 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 500.0' (152.4m) | White | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6302UE 877500CABLE 4COND 18AWG NATURAL |
2,531 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 7/26 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.180" (4.57mm) | - | 500.0' (152.4m) | Natural | UL Style CMP | Rip Cord | 300 V | -10°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
6341UE 8771000MULTI-PAIR 4COND 18AWG NAT |
3,103 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 18 AWG | 7/26 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.253" (6.43mm) | - | 1000.0' (304.8m) | Natural | UL Style CMP | Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FH 877U1000CABLE 2COND 18AWG NATURAL |
2,925 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Natural | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FH 8771000CABLE 2COND 18AWG NATURAL |
4,316 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Natural | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
5340F1 0021000CABLE 2COND 18AWG RED SHLD |
3,806 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.232" (5.89mm) | Foil | 1000.0' (304.8m) | Red | - | Direct Burial, Drain Wire, UV Resistant, Water-Blocked | 300 V | -30°C ~ 105°C | Security, Sound | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6341UE 877U1000MULTI-PAIR 4COND 18AWG NAT |
1,083 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 18 AWG | 7/26 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.253" (6.43mm) | - | 1000.0' (304.8m) | Natural | UL Style CMP | Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
2760-1000CABLE SPKR 2COND 16AWG CLR |
4,998 |
|
Datasheet |
- | Bulk | Active | Speaker | 2 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | - | 1000.0' (304.8m) | Clear | - | - | 300 V | -20°C ~ 60°C | Audio-Video, Home | 0.0299" (0.759mm) | - | - |
|
|
C4214A.30.10CABLE 2COND 18AWG GRAY |
4,739 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M55760P4PR CAT3 UTP PLN GRY |
3,701 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5441FE 008Z10002 PR #20 PP FS FRPVC |
3,290 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5542FE 008Z10003 PR #22 PP FS FRPVC |
4,346 |
|
- |
- | Bulk | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.189" (4.80mm) | Foil | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 75°C | - | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|

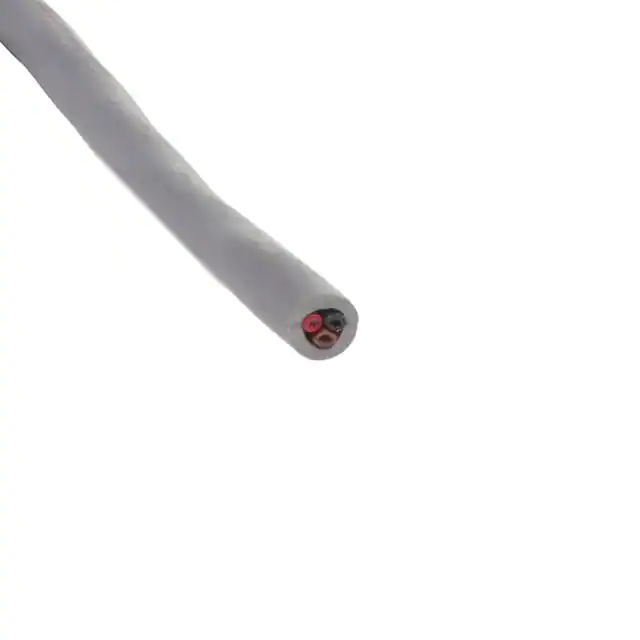

882403 SL002CABLE 3COND 24AWG SLATE |
2,861 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.159" (4.04mm) | - | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M9500010 BK001MULTI-PAIR 2COND 20AWG BLACK |
4,270 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 2 (1 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.225" (5.72mm) | - | 1000.0' (304.8m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3226 SL001CABLE 2COND 22AWG SHLD |
3,764 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.171" (4.34mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2092 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Polyethylene (PE) | - |
