Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E3604S.30.03CABLE 4COND 18AWG RED SHLD |
4,960 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 18 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.183" (4.65mm) | Foil | 1000.0' (304.8m) | Red | ASTM B-3 | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
AV5ESHR 0061000CAT5E 4PR F/UTP CMR REEL |
4,595 |
|
- |
* | Spool | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AV5ESHR 0081000CAT5E 4PR F/UTP CMR REEL |
3,092 |
|
- |
* | Spool | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6506FE 877U1000CABLE 8COND 22AWG NATURAL |
4,678 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.190" (4.83mm) | Foil | 1000.0' (304.8m) | Natural | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
5300FH 008U500CABLE 2COND 18AWG GRAY SHLD |
1,115 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC), Riser | 0.162" (4.11mm) | Foil | 500.0' (152.4m) | Gray | UL Style CMR | Rip Cord | 300 V | -20°C ~ 75°C | Security, Sound | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|
|
5300FH 008500CABLE 2COND 18AWG GRAY SHLD |
2,539 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC), Riser | 0.162" (4.11mm) | Foil | 500.0' (152.4m) | Gray | UL Style CMR | Rip Cord | 300 V | -20°C ~ 75°C | Security, Sound | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|
|
6300FE 0051000CABLE 2COND 18AWG GRN SHLD |
4,350 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Green | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|

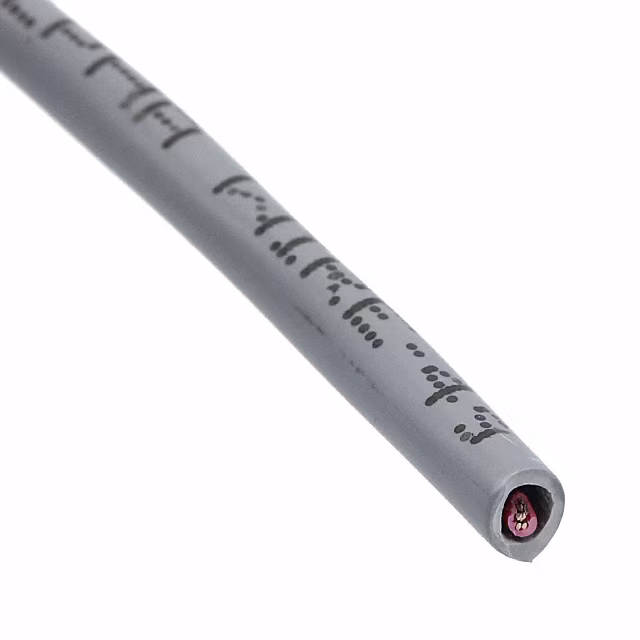

1172L SL002CABLE 2COND 22AWG SLATE |
1,135 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.161" (4.09mm) | - | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
|
5506FE 0051000CABLE 8COND 22AWG GRN SHLD |
3,625 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.187" (4.75mm) | Foil | 1000.0' (304.8m) | Green | UL Style CMR | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Security, Sound | 0.0180" (0.457mm) | Polypropylene (PP) | - |
|
|
6320FE 8771000CABLE 2COND 18AWG NATURAL |
1,720 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.151" (3.84mm) | Foil | 1000.0' (304.8m) | Natural | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
5321UE 008U1000CABLE 3COND 18AWG GRAY |
4,724 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.151" (3.84mm) | - | 1000.0' (304.8m) | Gray | UL Style CMR | Rip Cord | 300 V | -20°C ~ 75°C | Security, Sound | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|
|
5321UE 0081000CABLE 3COND 18AWG GRAY |
1,463 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.151" (3.84mm) | - | 1000.0' (304.8m) | Gray | UL Style CMR | Rip Cord | 300 V | -20°C ~ 75°C | Security, Sound | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|
|
6300FE 0021000CABLE 2COND 18AWG RED SHLD |
4,143 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Red | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 0041000CABLE 2COND 18AWG YLW SHLD |
3,328 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Yellow | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 007U1000CABLE 2COND 18AWG VIO SHLD |
3,208 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Violet | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 0071000CABLE 2COND 18AWG VIO SHLD |
1,060 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Violet | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 009U1000CABLE 2COND 18AWG WHT SHLD |
2,674 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | White | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 0091000CABLE 2COND 18AWG WHT SHLD |
1,191 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | White | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 0101000CABLE 2COND 18AWG BLK SHLD |
4,934 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Black | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6300FE 877U1000CABLE 2COND 18AWG NATURAL |
4,097 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.162" (4.11mm) | Foil | 1000.0' (304.8m) | Natural | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
