Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5200FL 002U1000CABLE 2COND 16AWG RED SHLD |
1,453 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.184" (4.67mm) | Foil | 1000.0' (304.8m) | Red | UL Style FPLR | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|
5220FL D151000CABLE 2CON 16AWG BLUE SHLD |
4,685 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.170" (4.32mm) | Foil | 1000.0' (304.8m) | Blue | UL Style NPLF | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|

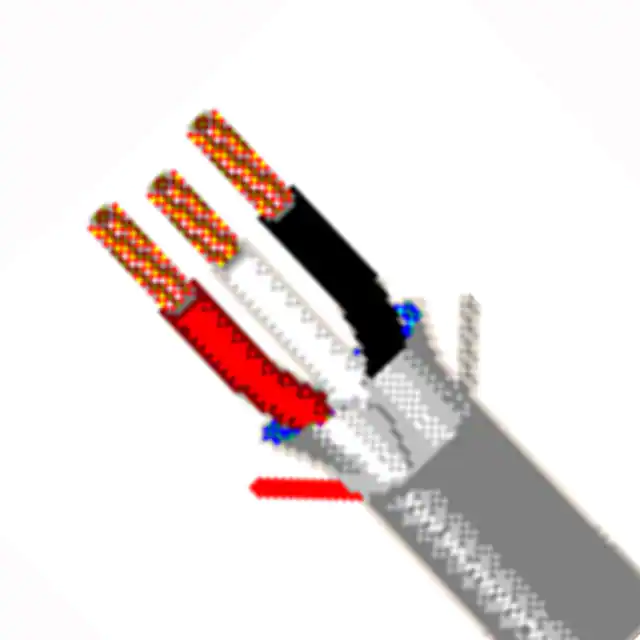

5501FE 008U500CABLE 3COND 22AWG GRAY SHLD |
2,069 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC), Riser | 0.133" (3.38mm) | Foil | 500.0' (152.4m) | Gray | UL Style CMR | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Security, Sound | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|
|
1212 0062500CAT5E+ 4PR U/UTP CMR REEL |
3,290 |
|
Datasheet |
- | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.206" (5.23mm) | - | 2500' (762.0m) | Blue | UL Style CMR | Rip Cord | 300 V | -25°C ~ 75°C | Network | - | Polyolefin (PO) | - |
|
1212 0092500CAT5E+ 4PR U/UTP CMR REEL |
1,242 |
|
- |
* | Spool | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5322UL 0021000CABLE 4COND 18AWG RED |
3,342 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.166" (4.22mm) | - | 1000.0' (304.8m) | Red | UL Style FPLR | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|
|
2412 0062500CAT6+ 4PR U/UTP CMR REEL |
3,986 |
|
Datasheet |
- | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.224" (5.69mm) | - | 2500' (762.0m) | Blue | UL Style CMR | Rip Cord | 300 V | -20°C ~ 75°C | Ethernet | - | Polyolefin (PO) | - |
|
|
2412 0092500CAT6+ 4PR U/UTP CMR REEL |
4,902 |
|
Datasheet |
- | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.224" (5.69mm) | - | 2500' (762.0m) | White | UL Style CMR | Rip Cord | 300 V | -20°C ~ 75°C | Ethernet | - | Polyolefin (PO) | - |
|
|
5340U1 0021000CABLE 2COND 18AWG RED |
3,553 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.227" (5.77mm) | - | 1000.0' (304.8m) | Red | - | Water-Blocked | 300 V | -30°C ~ 105°C | Security, Sound | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
C4062A.46.10CABLE 3COND 22AWG GRAY |
2,058 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.176" (4.47mm) | - | 5000' (1524.0m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6220UL D15U1000CABLE 2COND 16AWG BLUE |
2,633 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.166" (4.22mm) | - | 1000.0' (304.8m) | Blue | UL Style FPLP | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6220UL 007U1000CABLE 2COND 16AWG VIO |
1,991 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.166" (4.22mm) | - | 1000.0' (304.8m) | Violet | UL Style FPLP | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6220UL 0101000CABLE 2COND 16AWG BLACK |
1,058 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.166" (4.22mm) | - | 1000.0' (304.8m) | Black | UL Style FPLP | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
2285P 009500CABLE 2COND 18AWG WHITE |
2,317 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.147" (3.73mm) | - | 500.0' (152.4m) | White | UL Style CMP | Rip Cord | 300 V | 0°C ~ 75°C | - | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
6541FE 877Z10002 PR #22 FLRST FS FLRST |
3,412 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.203" (5.16mm) | Foil | 1000.0' (304.8m) | Natural | - | - | 300 V | 0°C ~ 75°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6220UL D151000CABLE 2COND 16AWG BLUE |
1,107 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.166" (4.22mm) | - | 1000.0' (304.8m) | Blue | UL Style FPLP | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
E3522S.41.0305CABLE 2COND 14AWG RED/YELLOW |
2,300 |
|
- |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.205" (5.21mm) | - | 1000.0' (304.8m) | Red, Yellow | - | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
E3522S.41.0307CABLE 2COND 14AWG RED/BLUE |
3,182 |
|
- |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.205" (5.21mm) | - | 1000.0' (304.8m) | Red, Blue | - | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6200FL 002U1000CABLE 2COND 16AWG RED SHLD |
4,008 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.184" (4.67mm) | Foil | 1000.0' (304.8m) | Red | UL Style FPLP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
5521FE 0081000CABLE 3CON 22AWG GRAY SHLD |
1,495 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.119" (3.02mm) | Foil | 1000.0' (304.8m) | Gray | UL Style CMR | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Polypropylene (PP) | - |
