Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
852610CY BK005CABLE 10COND 26AWG BLACK SHLD |
2,617 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 10 | 26 AWG | 19/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.456" (11.58mm) | Braid | 100.0' (30.5m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
8468MN 008100CABLE 15COND 18AWG GRAY |
4,943 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 15 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.347" (8.81mm) | - | 100.0' (30.5m) | Gray | - | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
1748C SL005CABLE 2CON 16AWG SLATE SHLD |
3,863 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.247" (6.27mm) | Braid | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
83319E 0091000CABLE 2COND 22AWG WHT SHLD |
3,485 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair) | 22 AWG | 19/34 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.143" (3.63mm) | Braid | 1000.0' (304.8m) | White | - | - | - | -65°C ~ 200°C | - | 0.0110" (0.279mm) | Tetrafluoroethylene (TFE) | - |
|
6059C SL005MULTI-PAIR 18COND 22AWG |
4,839 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.522" (13.26mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
1747C SL005CABLE 4COND 18AWG SLATE SHLD |
4,741 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Braid | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
73607WS 0081000CABLE 7CON 16AWG GRAY SHLD FEET |
4,187 |
|
Datasheet |
MachFlex™ | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 7 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.484" (12.29mm) | Braid | Enter Number of Feet in Order Quantity | Gray | UL Style 2587 | Oil Resistant | 600 V | -5°C ~ 90°C | Industrial, Signal, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
85204 BK005CABLE 4COND 12AWG BLACK |
1,713 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 12 AWG | 413/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.527" (13.39mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0700" (1.778mm) | Poly-Vinyl Chloride (PVC) | - |
|
6066C SL005MULTI-PAIR 12COND 18AWG |
3,005 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.541" (13.74mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
470125CY GE432CABLE 12COND 21AWG GRAY SHLD |
4,887 |
|
Datasheet |
Pro-Met® | Spool | Active | Multi-Conductor | 12 | 21 AWG | 20/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.472" (11.99mm) | Braid | 984.3' (300.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0441" (1.120mm) | Poly-Vinyl Chloride (PVC) | - |
|
2219/15C SL005CABLE 15COND 22AWG SHLD |
2,418 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.451" (11.46mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 150 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

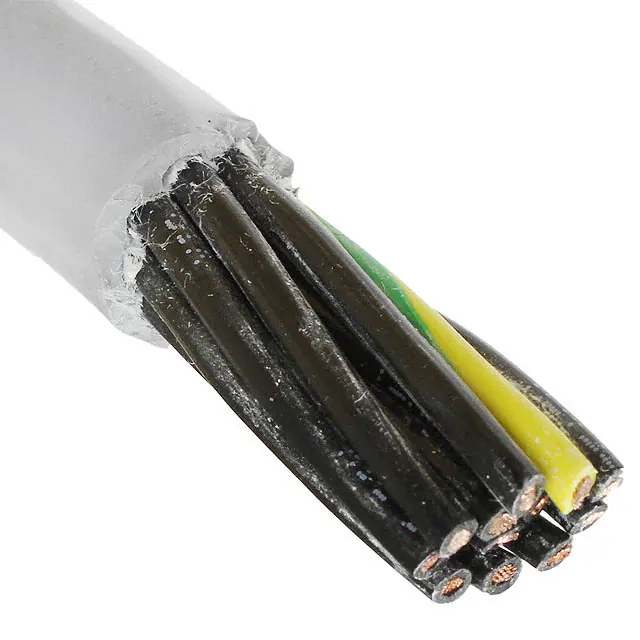

80039 SL005CABLE 18COND 18AWG SLATE |
4,430 |
|
Datasheet |
EcoFlex® PUR | Spool | Active | Multi-Conductor | 18 | 18 AWG | 41/34 | Copper, Tinned | Polyurethane (PU) | 0.384" (9.75mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|

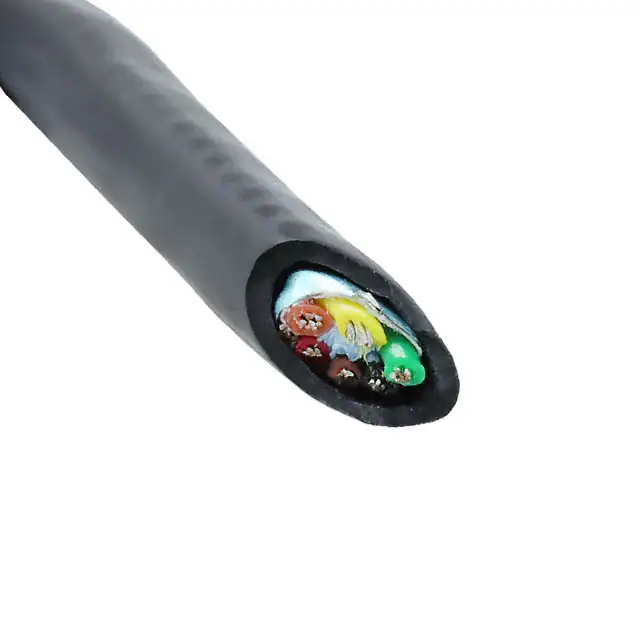

45196 BK199CABLE 6COND 22AWG BLK SHLD FEET |
1,898 |
|
Datasheet |
Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.285" (7.24mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
65825 SL005CABLE 25COND 18AWG SLATE |
3,200 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 25 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.666" (16.92mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
77039 SL005CABLE 3COND 14AWG SLATE |
1,307 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.275" (6.99mm) | - | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
1072 SL005CABLE 12COND 16AWG SLATE |
3,936 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.640" (16.26mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -20°C ~ 80°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
65612CY SL005CABLE 12COND 16AWG SHLD |
2,757 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.640" (16.26mm) | Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0520" (1.321mm) | Poly-Vinyl Chloride (PVC) | - |
|
2249C SL005CABLE 9COND 18AWG SLATE SHLD |
4,980 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.585" (14.86mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0550" (1.397mm) | Poly-Vinyl Chloride (PVC) | - |
|

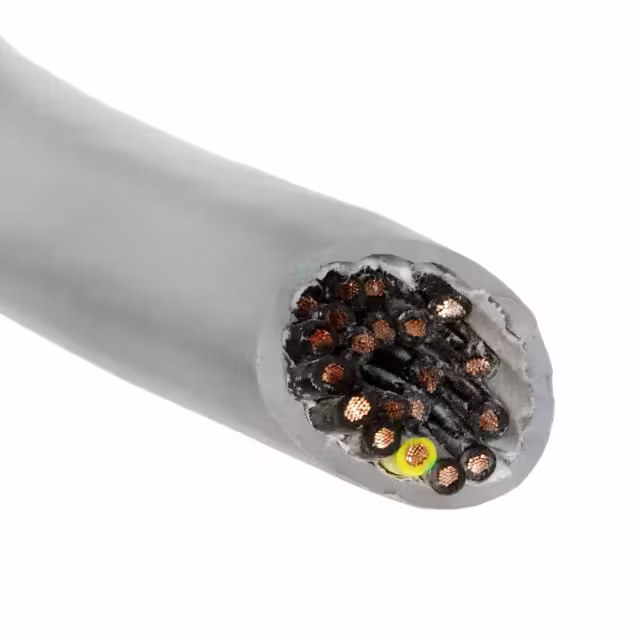

80029 SL005CABLE 25COND 20AWG SLATE |
3,627 |
|
Datasheet |
EcoFlex® PUR | Spool | Active | Multi-Conductor | 25 | 20 AWG | 26/34 | Copper, Tinned | Polyurethane (PU) | 0.398" (10.11mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
701711CABLE 6COND 14/18AWG BLACK FEET |
2,196 |
|
Datasheet |
ÖLFLEX® VFD 1XL with Signal | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 (1 Pair + 4) | 14 AWG, 18 AWG | 41/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.486" (12.34mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | - | Chemical Resistant, Drain Wire, Oil Resistant, UV Resistant | - | - | Industrial | - | Polyethylene (XLPE), Irradiated | - |
