Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5480/19C SL002MULTI-PAIR 38COND 24AWG 500' |
3,339 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 38 (19 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.445" (11.30mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
2827/5 WH005CABLE 5CON 20AWG WHT SHLD 100' |
1,892 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 20 AWG | 19/32 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.203" (5.16mm) | Braid | 100.0' (30.5m) | White | - | - | 600 V | -55°C ~ 200°C | Communication, Control | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
1899/4C SL001CABLE 4COND 16AWG SLATE 1000' |
2,560 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.260" (6.60mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
5158C SL002CABLE 8CON 20AWG SLATE SHLD 500' |
2,735 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 8 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
2444C SL002CABLE 2CON 12AWG SLATE SHLD 500' |
1,782 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | 65/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0300" (0.762mm) | Polyethylene (PE) | - |
|
2254/4 SL001CABLE 4COND 22AWG SHLD 1000' |
4,232 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.206" (5.23mm) | Spiral | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
5153C SL001CABLE 3COND 20AWG SHLD 1000' |
2,813 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.247" (6.27mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
3470C SL001CABLE 10COND 28AWG SHLD 1000' |
4,372 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | Foil, Braid | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5486C SL001MULTI-PAIR 12COND 22AWG 1000' |
4,420 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.320" (8.13mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

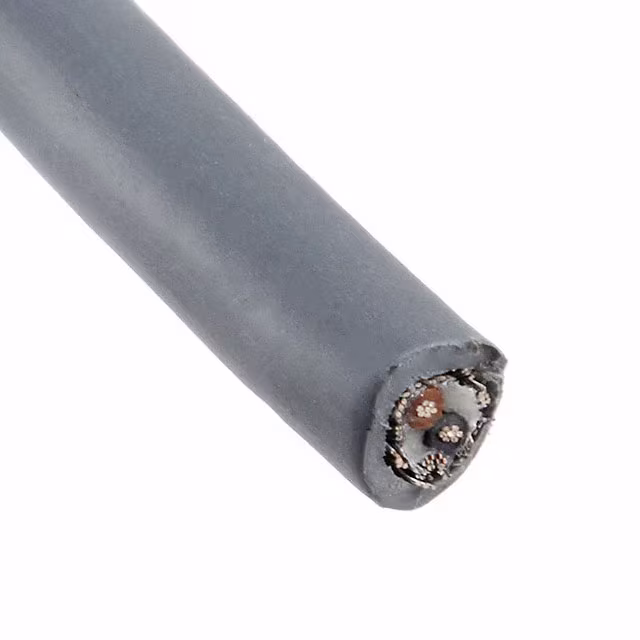

77213 SL001CABLE 2COND 18AWG SHLD 1000' |
3,983 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.230" (5.84mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
78041 SL001CABLE 15COND 22AWG SLATE 1000' |
1,655 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Conductor | 15 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.245" (6.22mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

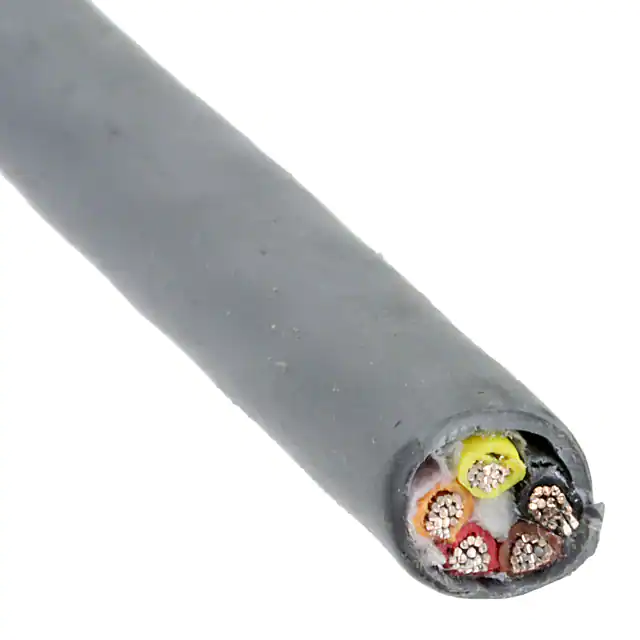

77023 SL001CABLE 5COND 18AWG SLATE 1000' |
3,329 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.250" (6.35mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
1716 SL001CABLE 5COND 20AWG SHLD 1000' |
2,679 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.285" (7.24mm) | Braid | 1000.0' (304.8m) | Slate | - | - | 600 V | -20°C ~ 60°C | Communication, Control | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
5671 SL001CABLE 8COND 26AWG SLATE 1000' |
3,000 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 8 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.198" (5.03mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5480/15C SL001MULTI-PAIR 30COND 24AWG 1000' |
2,407 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 30 (15 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.415" (10.54mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
5480/25C SL002MULTI-PAIR 50COND 24AWG 500' |
3,001 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 50 (25 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.527" (13.39mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|

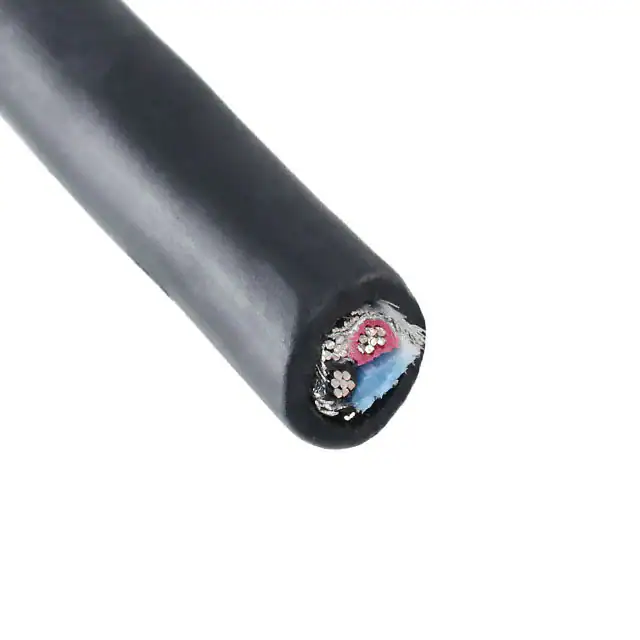

45152 BK001CABLE 2COND 20AWG BLK SHLD 1000' |
2,783 |
|
Datasheet |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.262" (6.65mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
45031 BK001CABLE 2 COND 18AWG BLACK 1000' |
3,911 |
|
Datasheet |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.252" (6.40mm) | - | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
5942 SL001MULTI-PAIR 12COND 28AWG 1000' |
2,209 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.246" (6.25mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5126C SL002MULTI-PAIR 12COND 22AWG 500' |
2,313 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.344" (8.74mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
